Arencó window 2740 BSI with mark NG

Quick Learner from Texas

Jul 8, 2020 2:36 pm

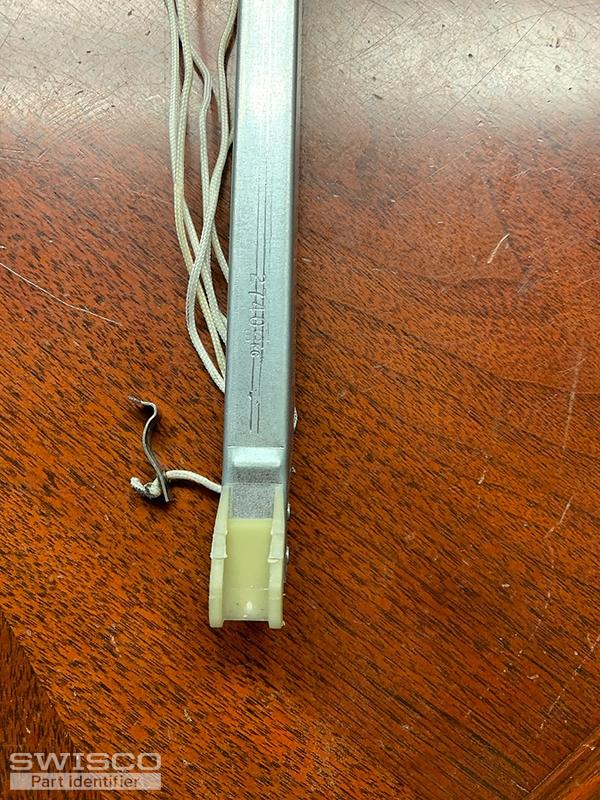

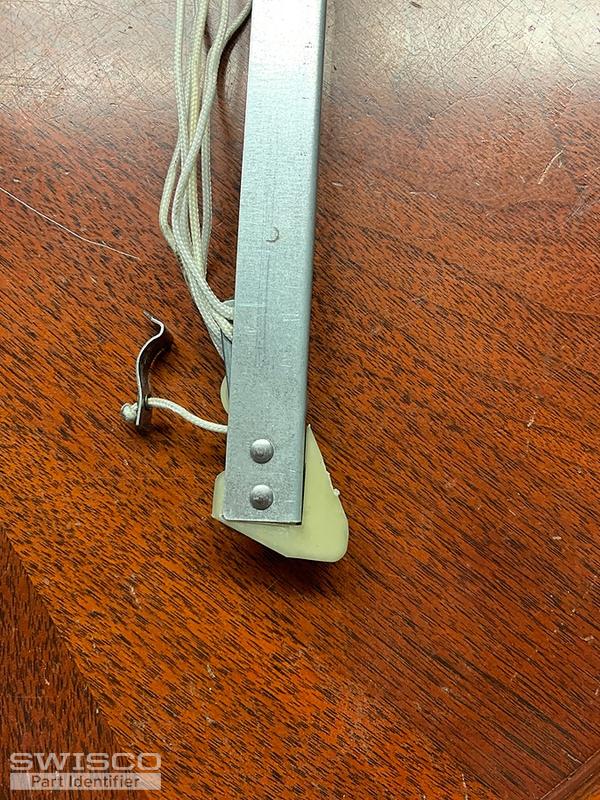

Looks like a NG mark. 'This is from a Alenco window that a home inspector broke (while inspecting my deceased Mom's house for sale) I need to order two of these (same for each side I assume) Please let me know as soon as possible if you have one of these or what I need to do to get 2 of these parts. I would like to get this part as soon as possible.

5 user uploaded images

7 Replies

Tom from SWISCO

Jul 10, 2020 2:36 pm

We should definitely be able to help, but your pictures don't show me the top nylon fitting. I only see the bottom. If I were to guess, I would say the S390-28 may be what you're looking for. This comes with a 19-002 top and 15-001 bottom fitting. You should carefully review these parts to ensure they match what you have now.

Quick Learner from Texas

Jul 10, 2020 4:46 pm

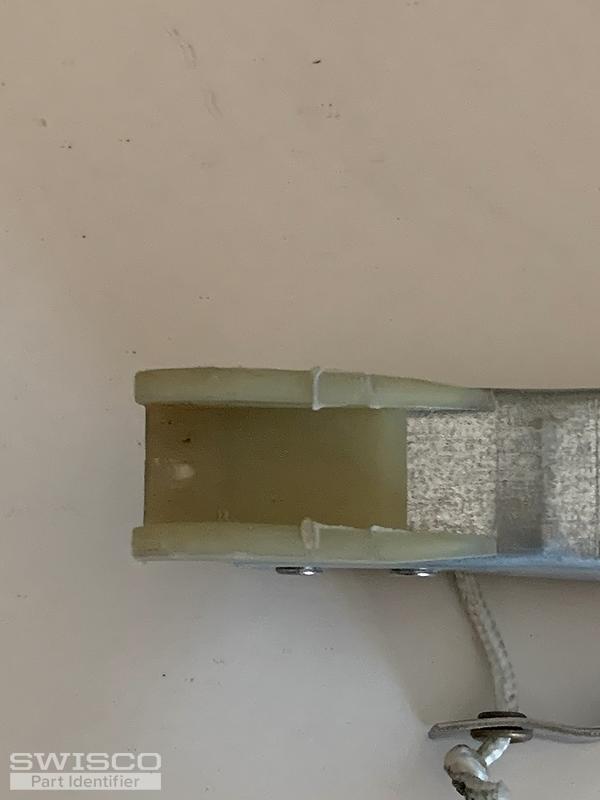

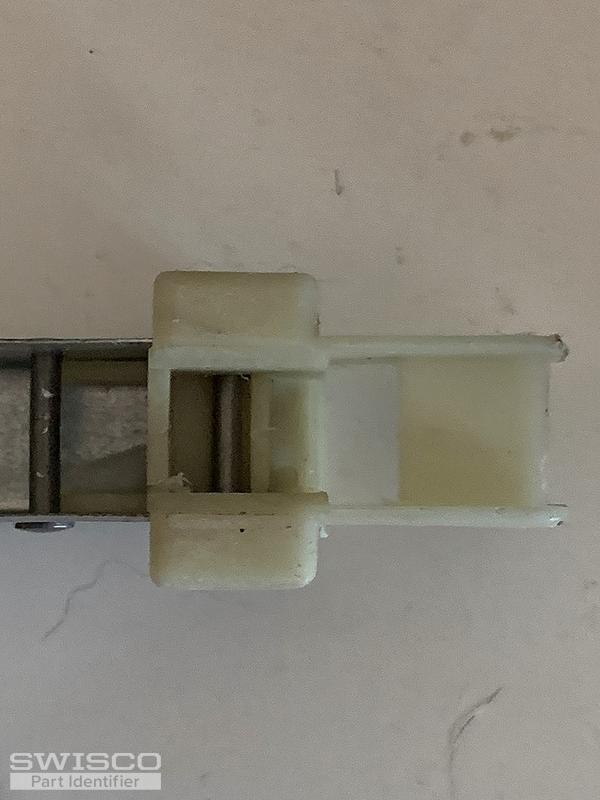

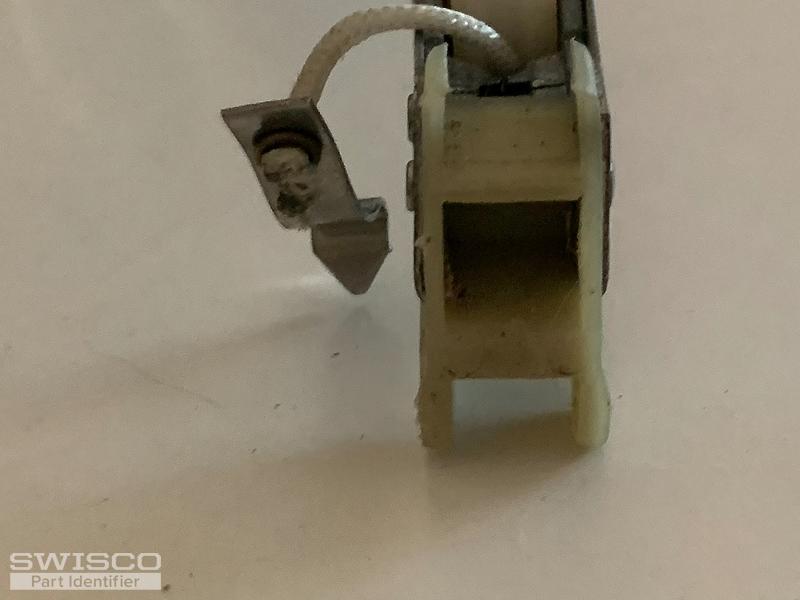

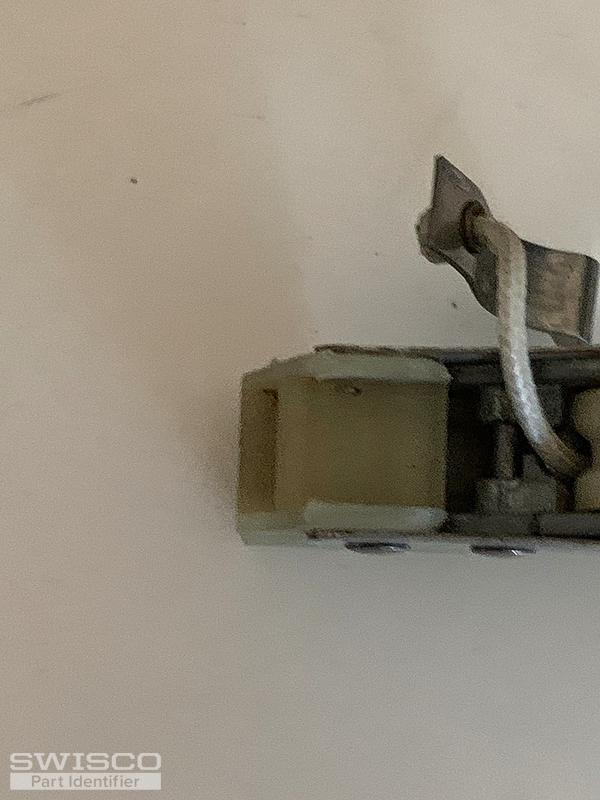

here are more photos and I can send more

5 user uploaded images

Quick Learner from Texas

Jul 10, 2020 4:49 pm

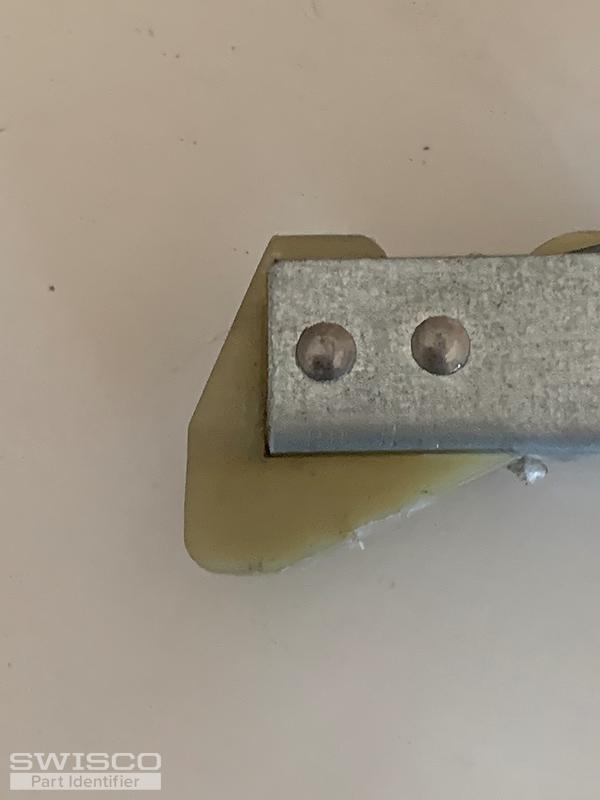

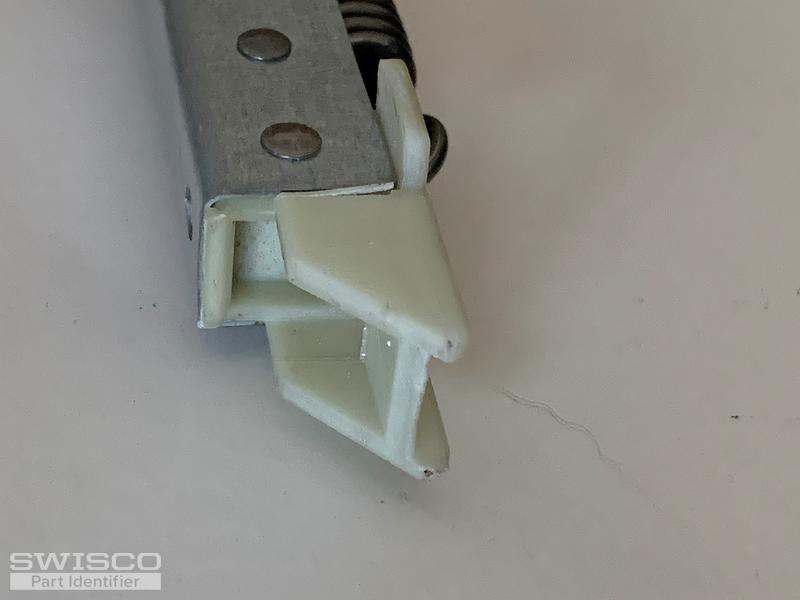

more photos - maybe this will help - I do not think the previously mentioned part is a match - but I may be wrong

2 user uploaded images

Tom from SWISCO

Jul 13, 2020 10:05 am

Thanks! These pictures are a help. I see now that your top fitting has wings, which means I will change my suggestion to the S395-28. This has the same 15-001 bottom fitting, but this time the top fitting is a 19-005.

Quick Learner from Texas

Jul 13, 2020 10:51 am

I am having to backorder this part. So just to confirm I need two of this part - https://www.swisco.com/28-Series-395/pd/Series-395-Channel-Balances/S395-28 the 2740. Is that correct?

Tom from SWISCO

Jul 13, 2020 11:22 am

Yes, as long as the 19-005 and 15-001 fittings match then that will work for you.
