door handle

Professional from Sedona

Apr 2, 2024 11:56 am

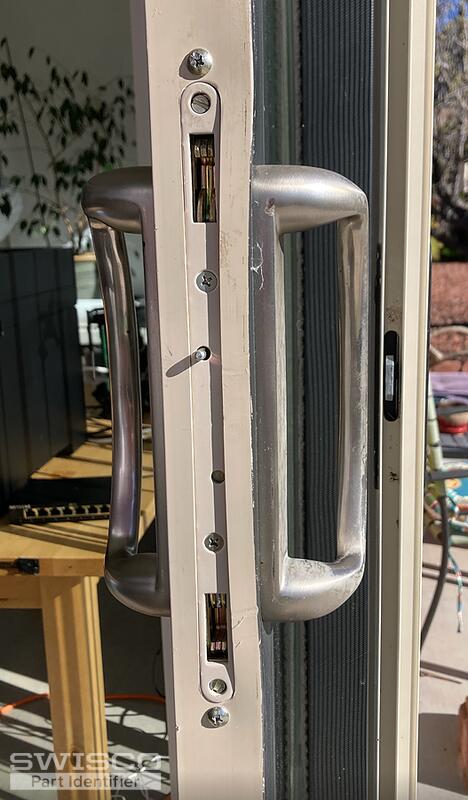

Trying to find out if this door handle is available. I believe it is a Swisco product. I'm looking to replace it with a handle that can be locked from the Outside as this is the entrance to my backyard studio. Thanks in advance. Malou

4 user uploaded images

4 Replies

Lauren from SWISCO

Apr 3, 2024 12:09 pm

Hello, thank you for posting,

To further review, are you able to provide the distance between the installation holes from center to center of the handle? Please also confirm if the thumb lever is centered or offset on the handle. From there we can compare to determine the best replacement option. Thank you!

Professional from Sedona

Apr 5, 2024 3:22 pm

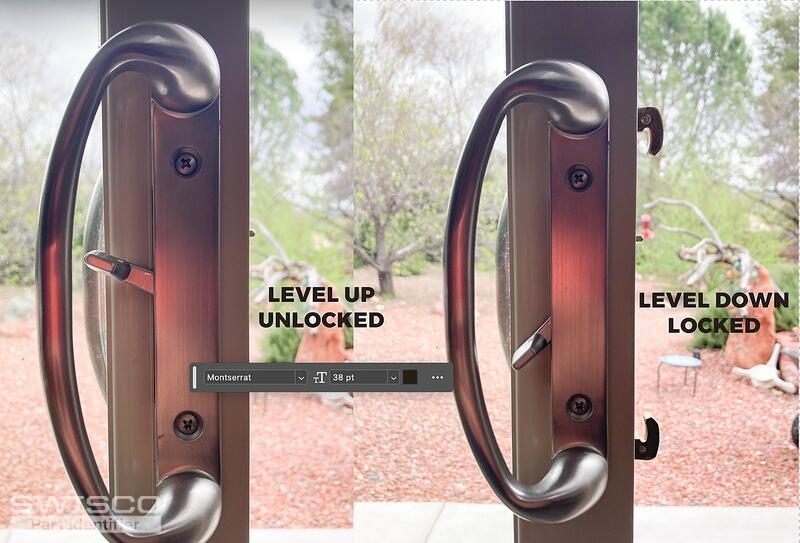

Hi, not sure where you need me to measure. Do the attached images help any, or could you mark where you need me to measure?

3 user uploaded images

Lauren from SWISCO

Apr 8, 2024 10:38 am

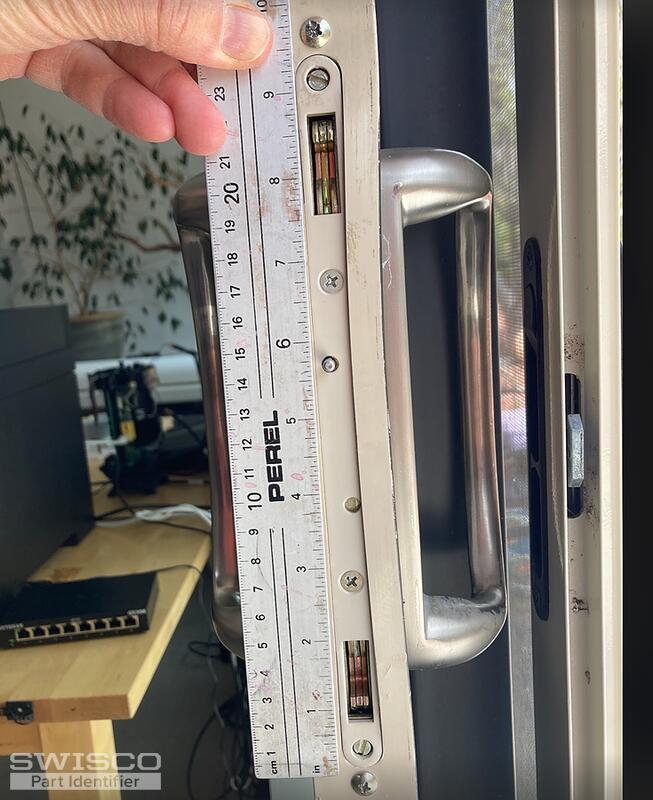

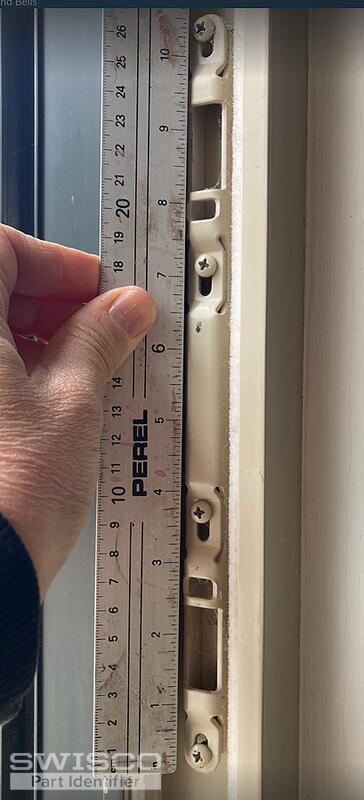

You will need to measure the distance between the installation holes from center to center as shown below.

Dimensions for 82-030A

If they measure 3-15/16", please review the 82-030A handle set with a centered locking thumb lever placement or the 82-030B with an offset thumb lever. Unfortunately I cannot confirm from the picture which style you have. The original handle set will need to be removed to confirm the placement of the lever on the door.

If the dimensions are not matching up, please let me know!
