Screen door latch

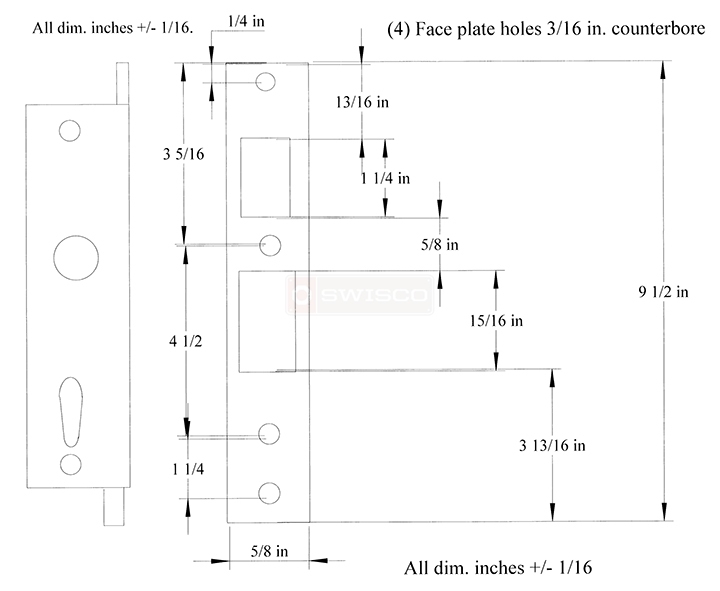

I'm afraid I haven't been able to come up with a mortise lock with your dimensions. If possible, can you double check your measurements to be sure they're as accurate as possible? You say in the your diagram that they are +/- 1/16", but 1/16" can make all the difference in the world. The measurements for this kind of hardware are very specific. I would also like to see a photo of your lock, as well. Sometimes there is a clue we can make out by looking at the physical hardware. In the meantime, you can see our entire selection here, especially near the bottom of the page.

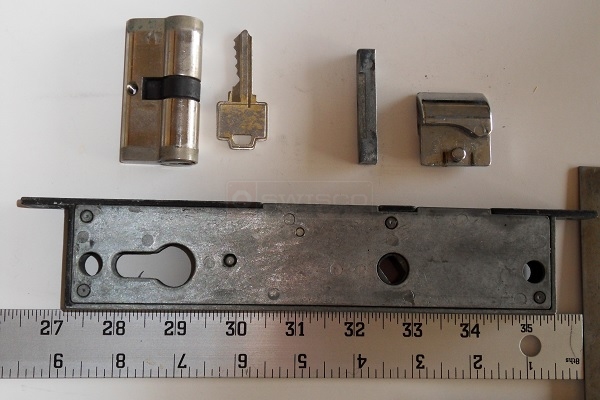

You should be able to get precise measurements with even just the ruler I see in your picture. As for your mortise lock, we don't have an exact match but our 40-194 looks similar. Carefully look it over and see what you think. You can see all the most important dimensions outlined on this store page. If your measurements differ in any way, let me know.
