double hung window spring balance part- lock shoe and metal pivot bar

A home owner from centreville, virginia says:
October 1, 2014
I would to confirm that you have the following parts:

1.Lock shoes:

see attached size of lock shoe.


2.Pivot bar: Specially the position for two screws.

See attached for size of pivot bar.


Thanks a lot,

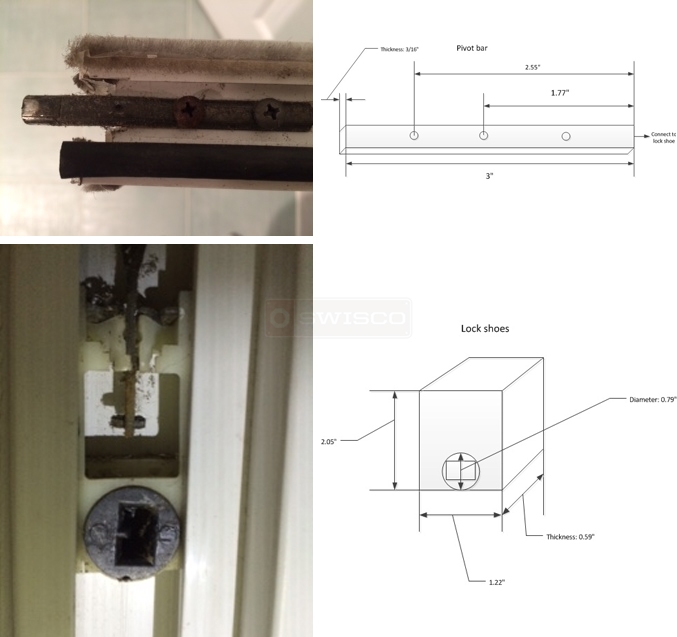

User submitted photos of window hardware.
Profile picture of Paul
Paul from SWISCO responded:
October 2, 2014
I'm afraid your pivot shoe is no longer available, however the manufacturer suggests our 15-047 as a replacement. Our 26-063 should also work for this pivot bar. Just remove the set screw on the bar and reuse your sash screws. Take a look and see what you think!
A home owner from centreville, virginia says:
October 2, 2014
I believe that should be good. I will place an order. Much appreciated for your assistance.Thanks a lot.
