double steel wheel patio doors

A home owner from 47421 says:
May 16, 2022
3 patio doors, 2 bottom assemblies per door. 1 1/4"steel double wheels. outside of frame appears to be just shy of 11/16". Assemble frame length is 3 1/8", 4" including wheel that extends past frame. Frame height is 1 1/8" Two screws hold in, one screws into a nut, the other screws through frame and it holds the door frame together as well.
Thumbnail of the uploaded file named IMG_5561[1].JPG
Thumbnail of the uploaded file named IMG_5562[1].JPG
Thumbnail of the uploaded file named IMG_5563[1].JPG

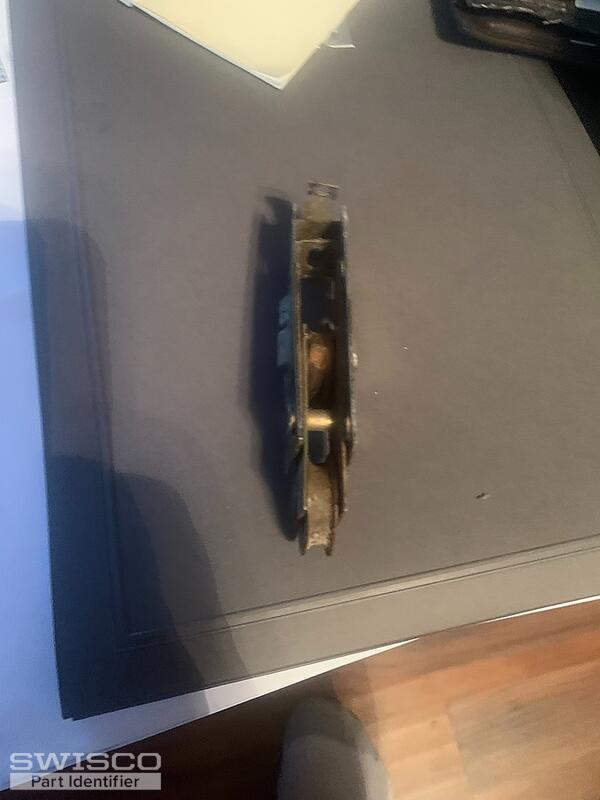

Thumbnail of the uploaded file named IMG_5564[1].JPG
Profile picture of Tom
Tom from SWISCO responded:
May 18, 2022

Thanks for reaching out to us. Your dimensions and design appear to match our 81-056 very closely, with the exception of the wheel. Ours are 1" in diameter, not 1-1/8". The good news is that I think it can still work regardless, since these can be adjusted to make up the difference. Look it over and see what you think.

Alternate image for 81-056
Alternate image for 81-056
Patio Sliding Glass Door Roller
Patio Sliding Glass Door Roller
81-056
$16.38
