replacement drawer guides, pat #4930739
A home owner from Cleveland, OH says:
April 3, 2011
I seem to have broken the plastic drawer guides. Can you assist in identifying replacement parts. I have attached pictures of the drawer location and rear guides that are broken. I removed the rail and it is 20 inches long. It has no identification, other than a "G" in the middle of the wheel on the guide. The broken plastic guide has patent # 4930739. Thanks for your assistance. Walt M.

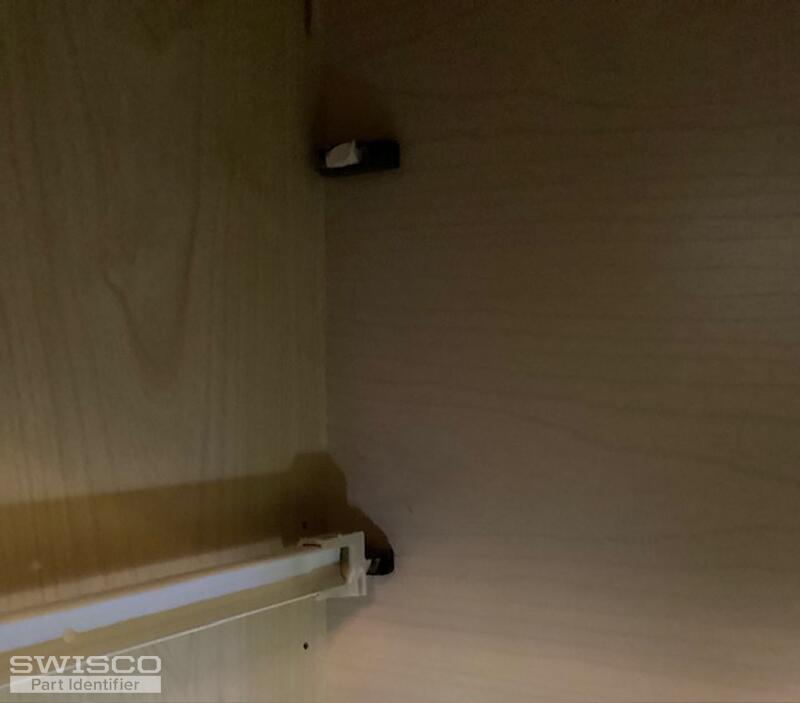

The above message was posted 2011 and it is the same issue I am having. The plastic piece that fits on the rail and goes into the metal piece on the back of the wall of the cabinet is broken. The pat # is the same 4930739 printed of the plastic piece.

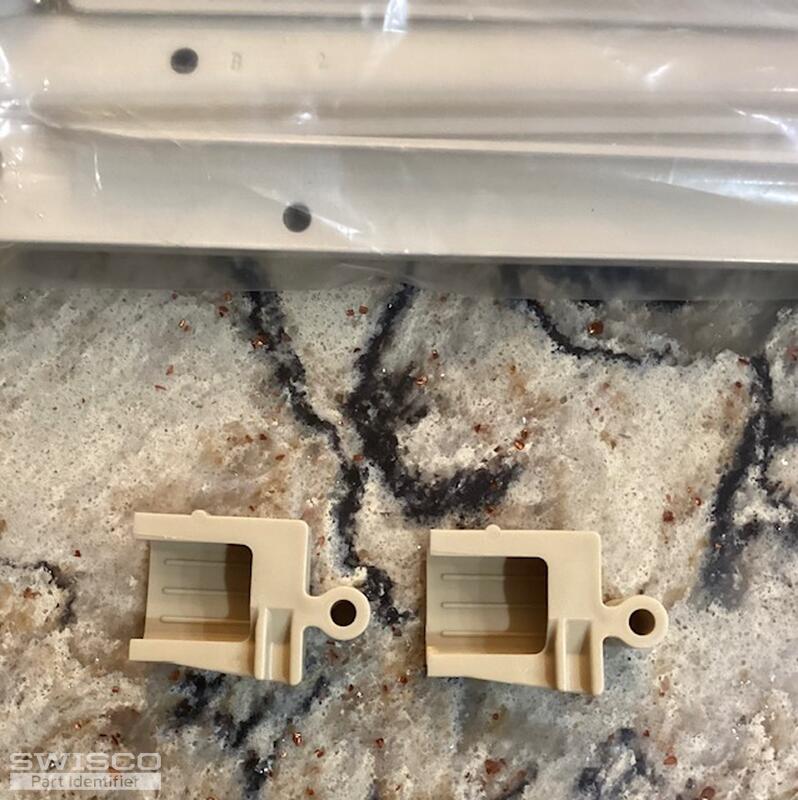

img-8912 are the parts that are broken, and need replaced.
drawer parts for HAAS cabinets
Quick Learner from Sevierville TN
Dec 2, 2023 3:59 pm
5 user uploaded images
4 Replies
Casey from SWISCO
Dec 4, 2023 12:56 pm
Hello,
Unfortunately, we do not carry the exact drawer socket shown in your photos but the 32-119 should work as a replacement as long as the height and width of the opening shown below match your part. Also, note that you'll need to mount our sockets to the back wall of the cabinets using screws, meaning you have to take those black brackets off to install the replacements. Thanks for posting.
Detail of 32-119
Side view of 32-119
Quick Learner from Vermont
Dec 23, 2024 4:02 pm
Hello,
I have these same cabinets and also have a broken drawer socket and missing screws that held the socket to the back wall of the cabinet. Do you know the size of those screws and what they are called? Thank you.
I have these same cabinets and also have a broken drawer socket and missing screws that held the socket to the back wall of the cabinet. Do you know the size of those screws and what they are called? Thank you.
Casey from SWISCO
Dec 26, 2024 8:54 am
