dropped my screen and broke it

Question

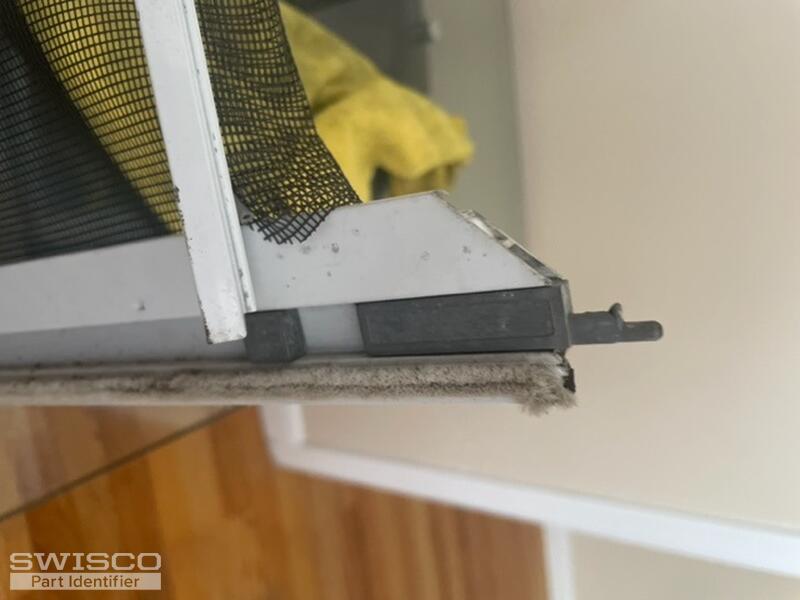

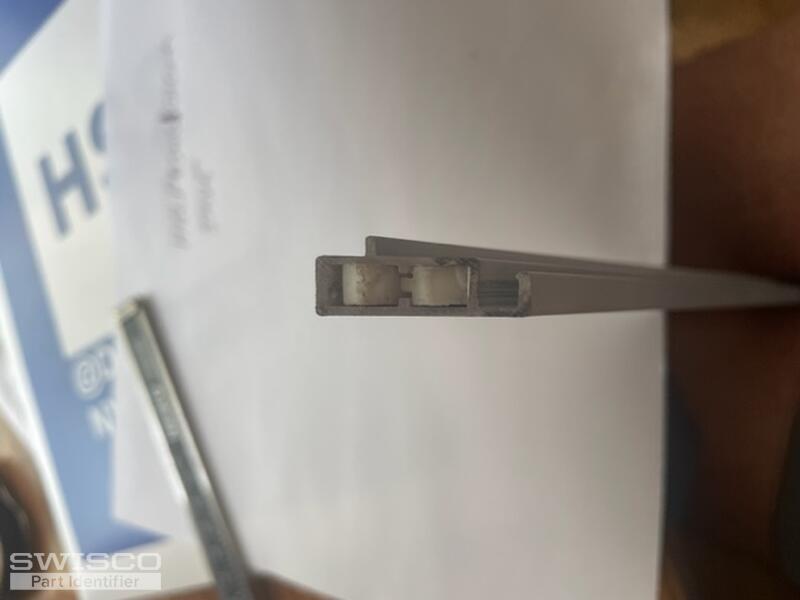

I re-meshed my screens, and dropped one while I was reinstalling it. Lucky me it broke at the corner.

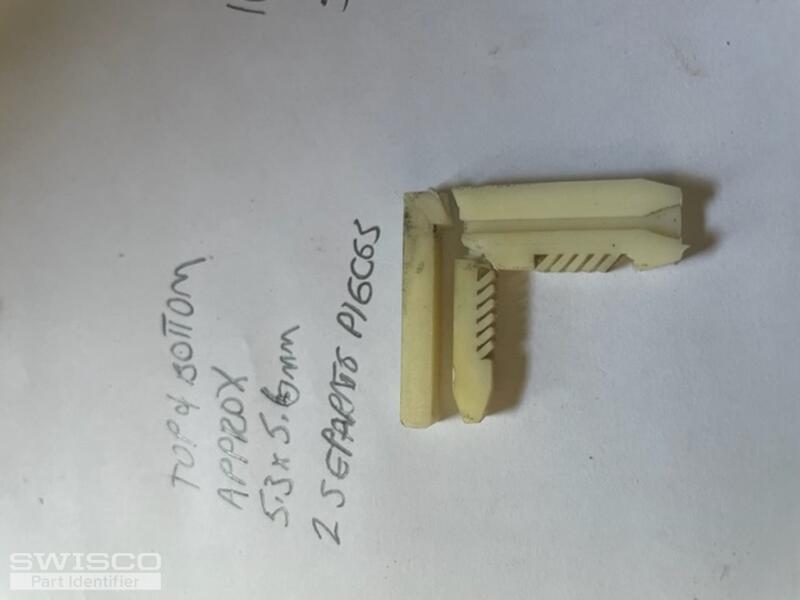

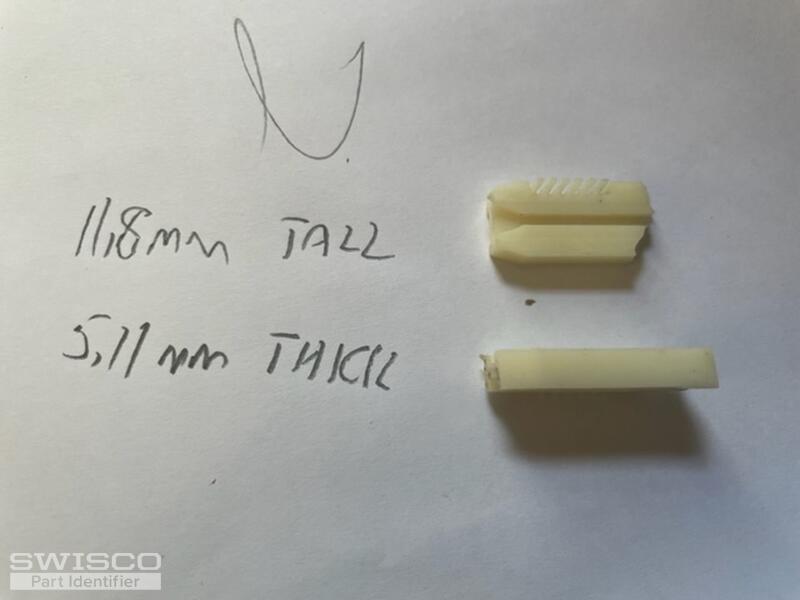

I used a micrometer and these things appear to be 11.8 mm tall and 5.1 mm thick. I was able to get a broken one out of the window. Maybe I will get lucky and you will have these parts.

Lauren · Accepted Answer

Hello, thank you for posting,

This nylon double-leg corner is no longer available, but it can be replaced. What you need to do is use the 95-002 corner key to hold the frame together while you install it into the channel closest to the screen groove. However, you will also need one leg of your existing nylon corner, or one leg of the 95-002 , to hold your slide latches on the bottom channel of the screen frame.

Please review and let us know if you have any additional questions.
