dual arm crank for awning window

Home Owner from 01754

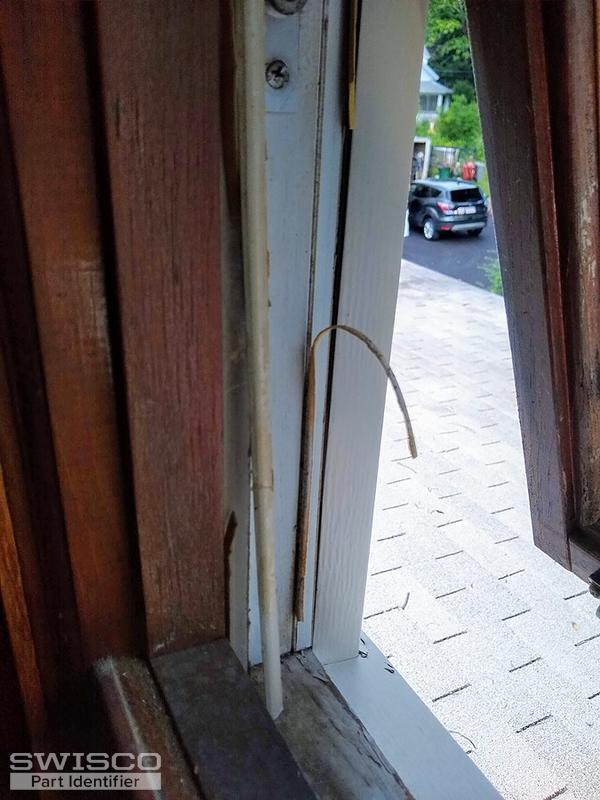

Hello! I saw a very helpful Swisco video about replacing this part. I have an awning window in my bathroom that will not close. When I would turn the crank, nothing would happen. It's difficult to determine what size dual arm crank I need to use. Also, when I took out the screen, I could see that many parts were in bad shape and I'm wondering if I need to do more than just replace the dual arm crank (and the handle too).

I measured the window itself as 16" high and 29" wide. There were some markings on the window. One seemed to be stamped on with ink and reads 7 25 85 8 MW (those last two letters are not entirely clear but the numbers are very clear). I can also see engraved behind it the following (but some letters are not entirely clear): CMHC 7687 (I think the first C could be a G; the 8 might be a B or a 6; I'm quite sure the rest are correct). Can you help me figure out what size I need? And do you see anything that might indicate that I need to do more than just replace it? Thank you! - Janet
4 user uploaded images
3 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

Take a look at our 39-348 awning operator and see how the dimensions on our product page compare to yours. Thanks for posting!

Home Owner from 01754
Thanks, Casey. It does seem to look like the one I have.
