dual arm tan in color
Handy Person from Iowa
May 29, 2025 4:57 pm

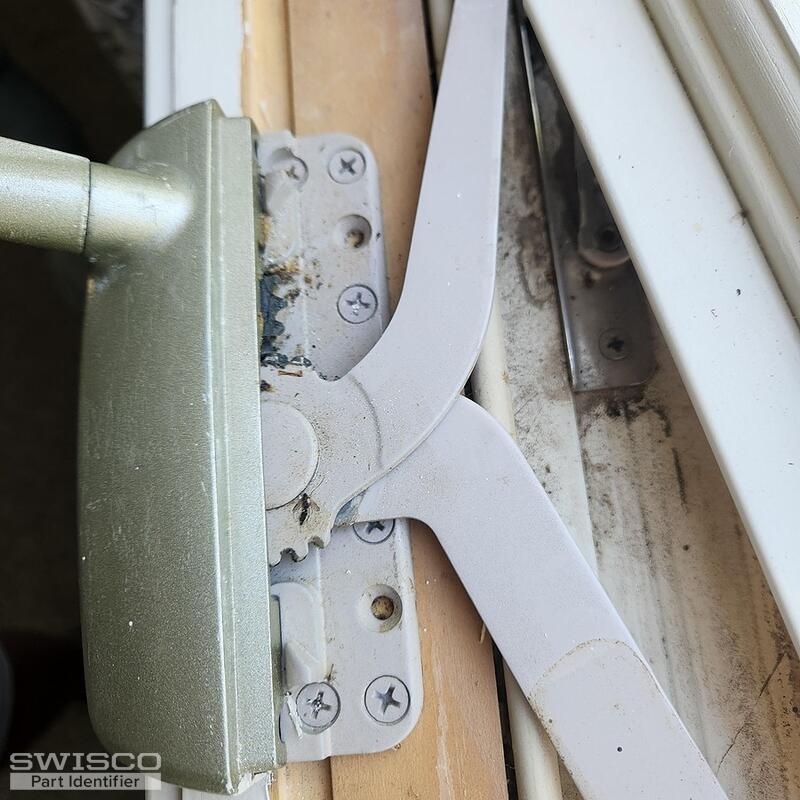

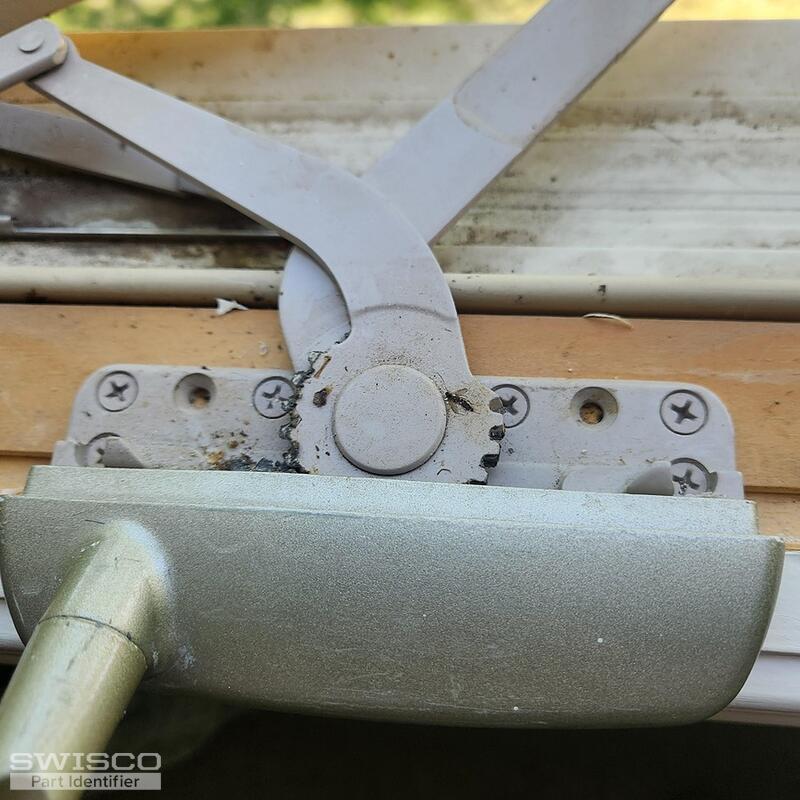

weather shield window crank
5 user uploaded images
4 Replies
Handy Person from Iowa
May 29, 2025 4:58 pm
pics
2 user uploaded images
Quick Learner
May 30, 2025 10:22 am

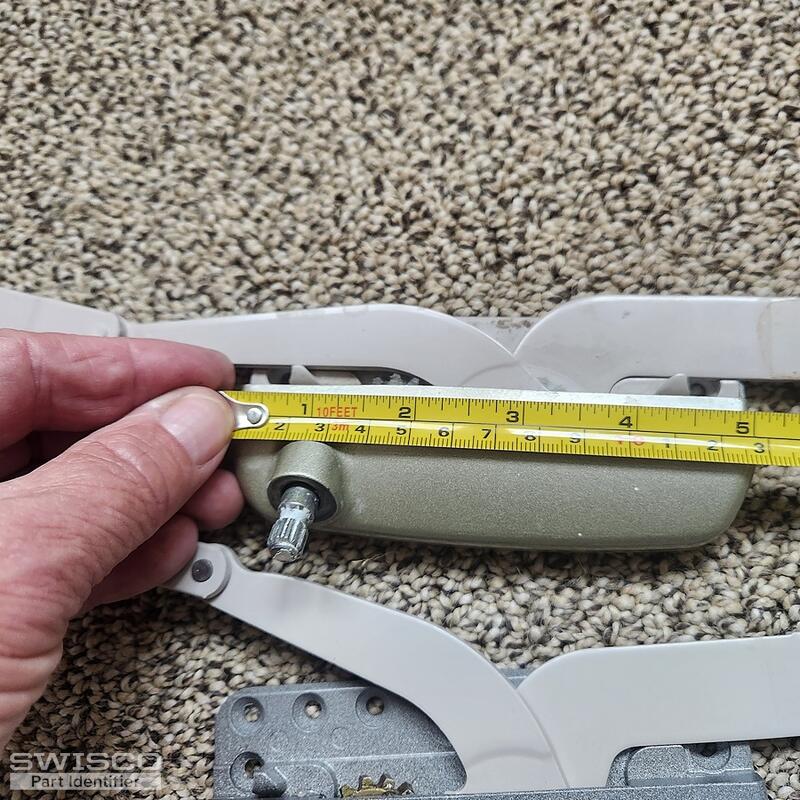

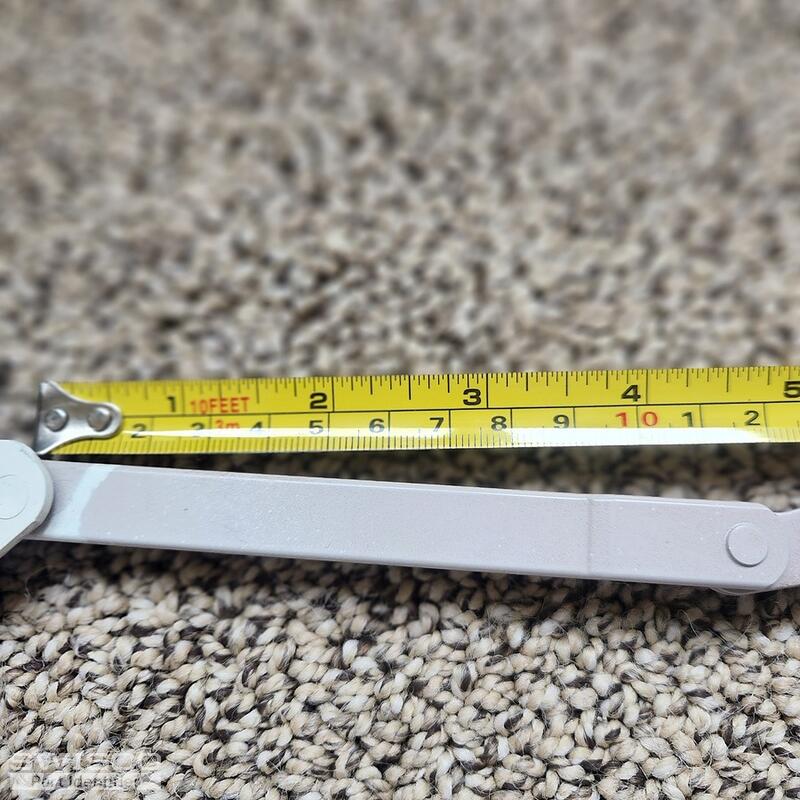

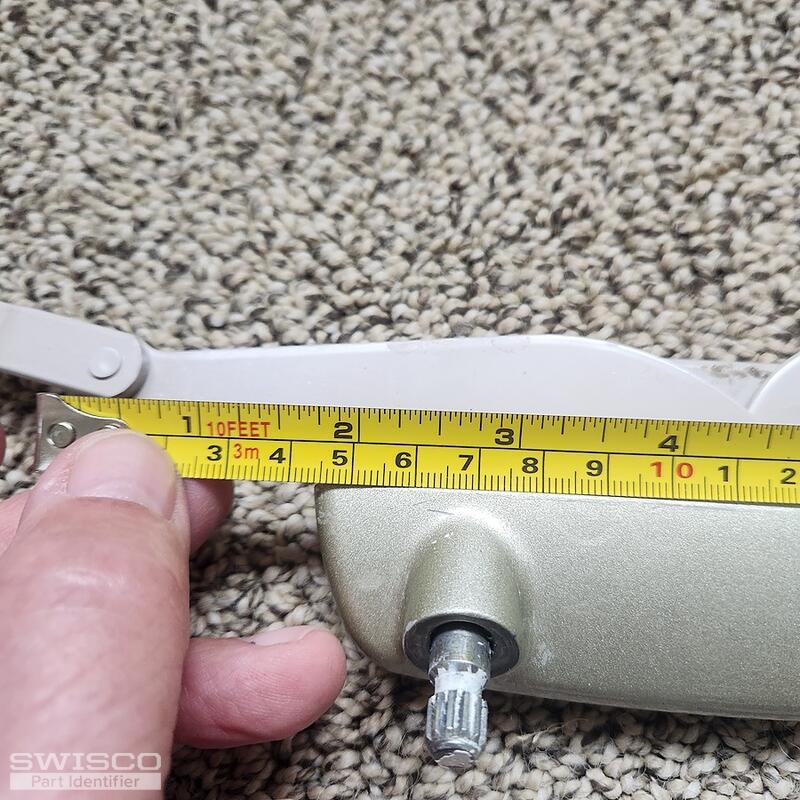

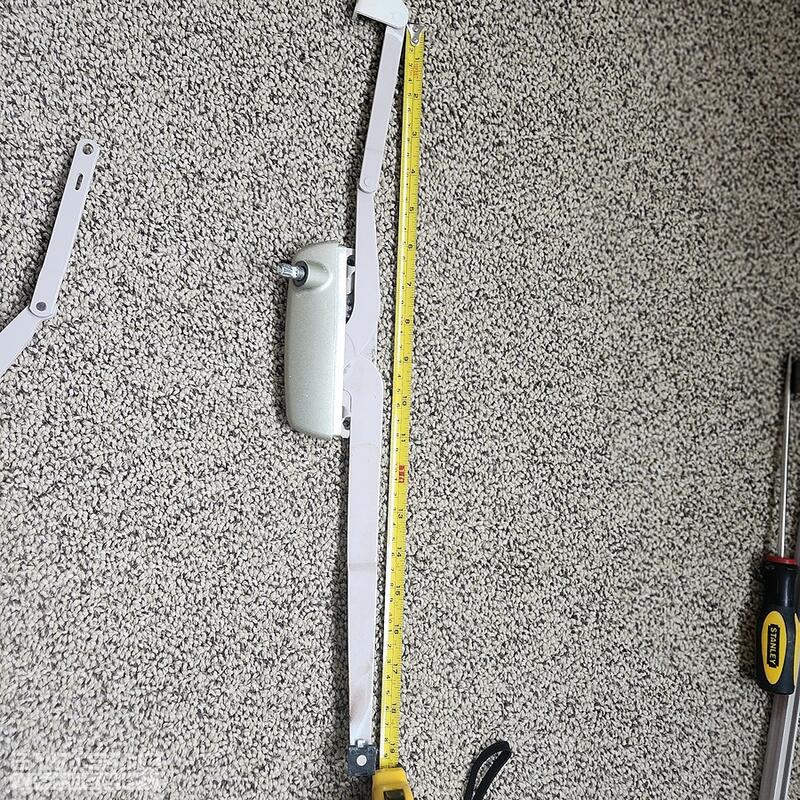

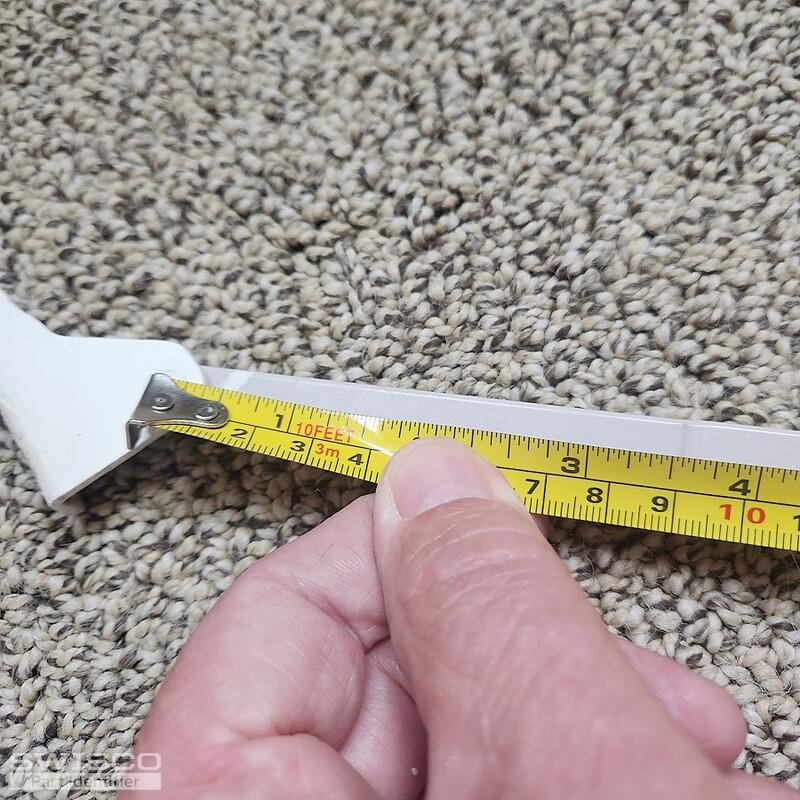

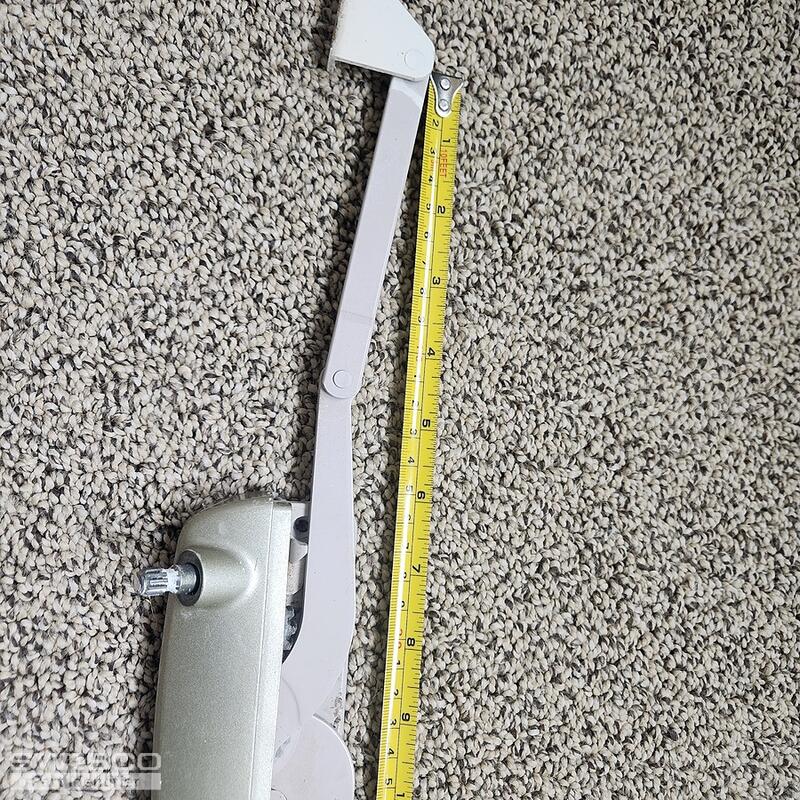

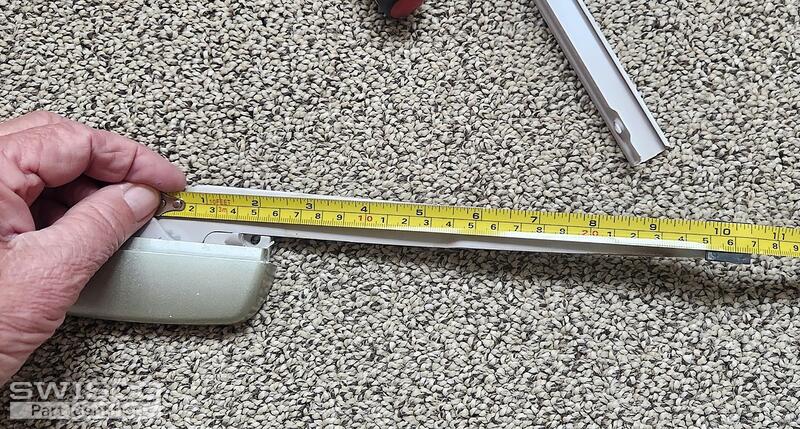

Im seeking for this type of crank operator with these specific measurements.
5 user uploaded images
Jasmine from SWISCO
May 30, 2025 11:12 am
Your window operator is the 39-253RB Encore Dual Arm Operator. You'll need either the 39-376 or the 39-452 to replace the cover and handle; these are available in beige (tan).
The black nylon piece at the end of the straight arm is the 39-529 Truth Hardware Track Slider. The bracket attached to the shorter, link arm can be replaced with the 39-545 Truth Snap-Stud Bracket.
You'll find the opposite handed versions of these parts along with the compatible operator track tagged below this thread.
Dimensions for 39-253RB
