end shoe assbly., spiral balance w cord

Start a new Discussion

Quick Learner from central Massachusetts

Nov 21, 2019 9:39 am

here are good pics of the longer part of this assbly and 1 shot of both parts assembled
thanks
john carew

5 user uploaded images

9 Replies

Casey from SWISCO

Nov 22, 2019 2:40 pm

It looks like you may have a cross bow balance that has been discontinued and no longer available. We do offer an alternative route for this, but we will need to see photos showing the entire balance, including any attachments on the end. We will also need to know the length of the part. Thank you.

Quick Learner from central Massachusetts

Dec 9, 2019 2:27 pm

Hi. Ok,discontinued parts, so what replacement assy. should work?

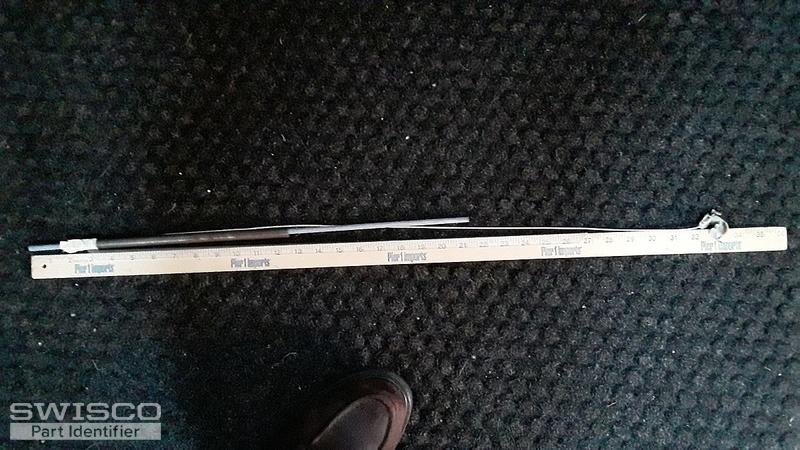

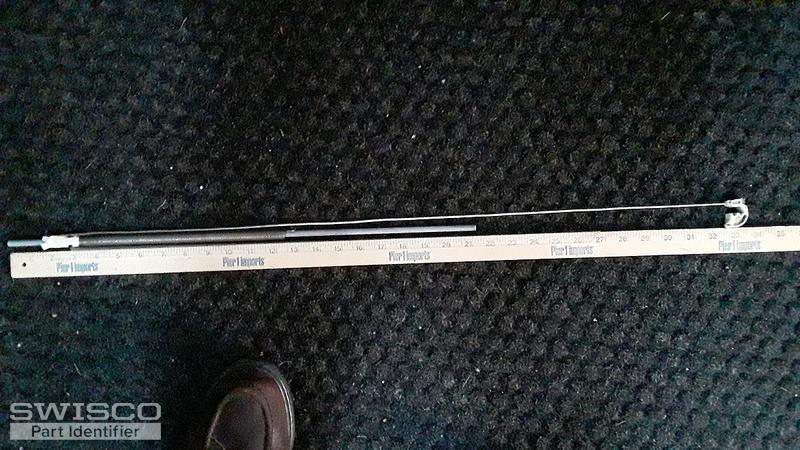

Center plastic tube is 1/4" o.d. and 21 1/4" long.
Spring is abt. 7/16" o.d.and 10 1/4" long.
Shoe is 1/2" wide and abt. 1 1/16" squared off.

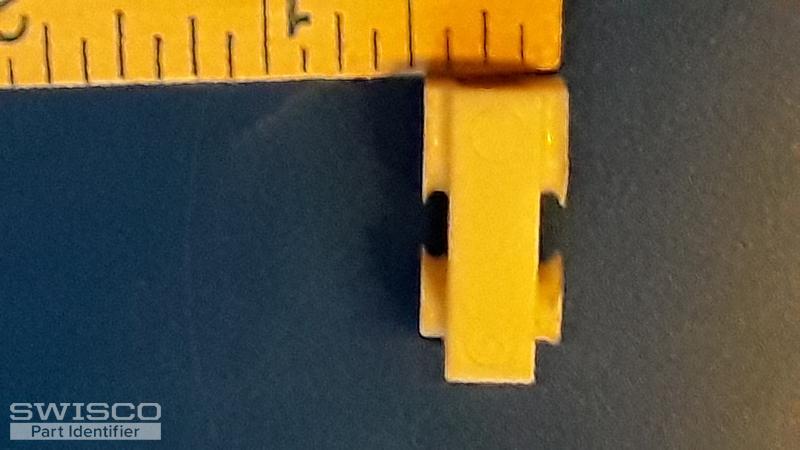

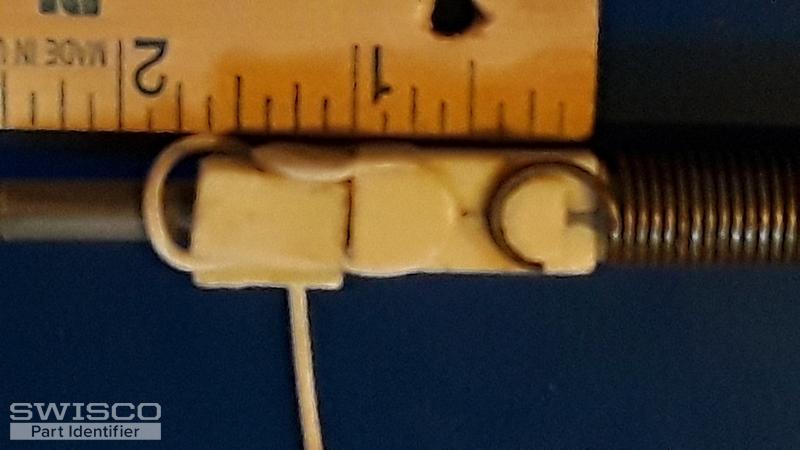

rectangular sliding piece is about 7/16" x 9/16" x 1 5/8", with vertical hole in center for center plastic rod.

Also, smaller windows
w 19 1/4" long rod and 7" long spring. Other dimensions seem the same.

5 user uploaded images

Quick Learner from central Massachusetts

Dec 9, 2019 3:07 pm

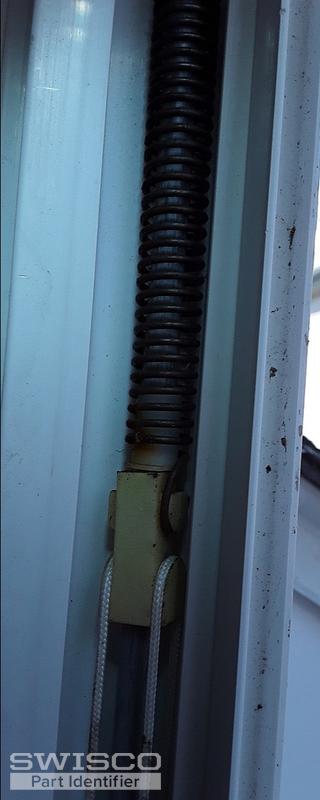

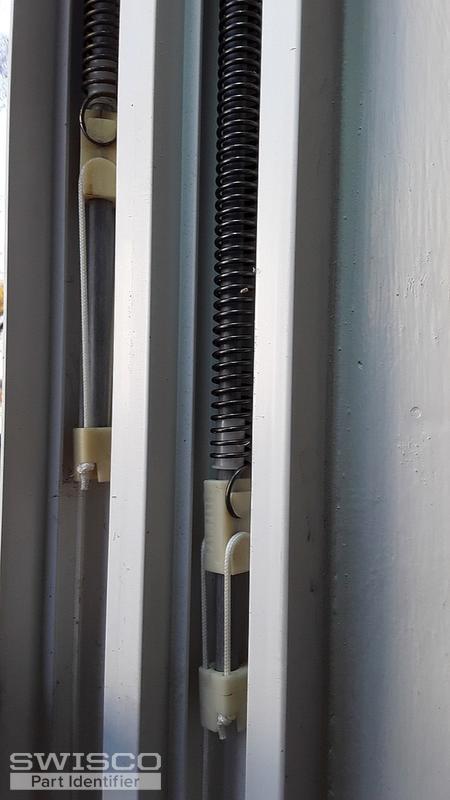

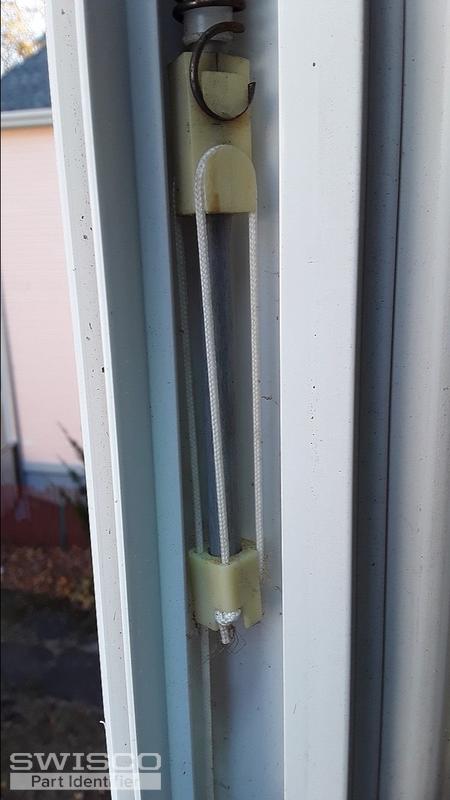

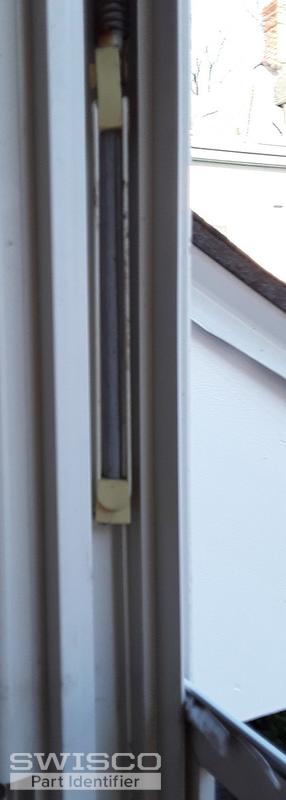

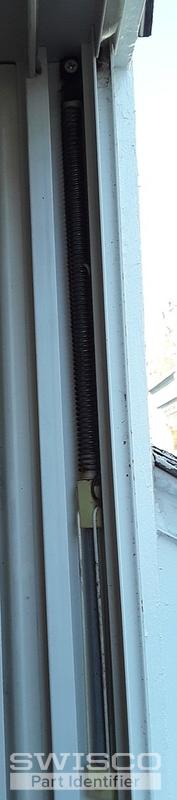

Here are some more pics - of the parts as mounted on the smaller window. thanks, jc

5 user uploaded images

Tom from SWISCO

Dec 10, 2019 9:17 am

Thank you! Like Manuella said, this is an old rod type balance that isn't made anymore. Thankfully, our Series 775 channel balance ought to work for you as a replacement. The only catch is that you'll have to weigh your sash on a scale to determine the proper stamp option, since the channel type has a different spring rating system than the old rod type.

Quick Learner from central Massachusetts

Dec 10, 2019 10:58 am

Thaks, Manuela & Tom. I'll go back to the house, weigh a couple of sashes, take a pic that includes the terminal piece, and measure again. jc

Casey from SWISCO

Dec 10, 2019 11:04 am

Sounds great. We'll be here!

Quick Learner from central Massachusetts

Aug 3, 2020 9:24 pm

For starters, I'll fix the windows that have sashes weighing 11 pounds.

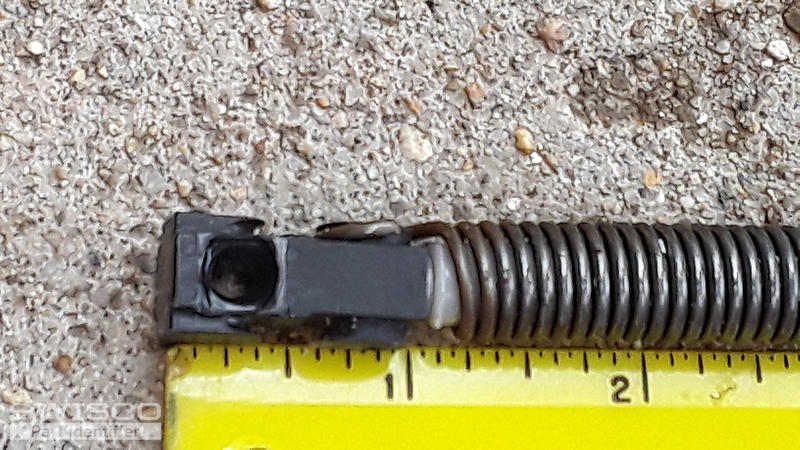

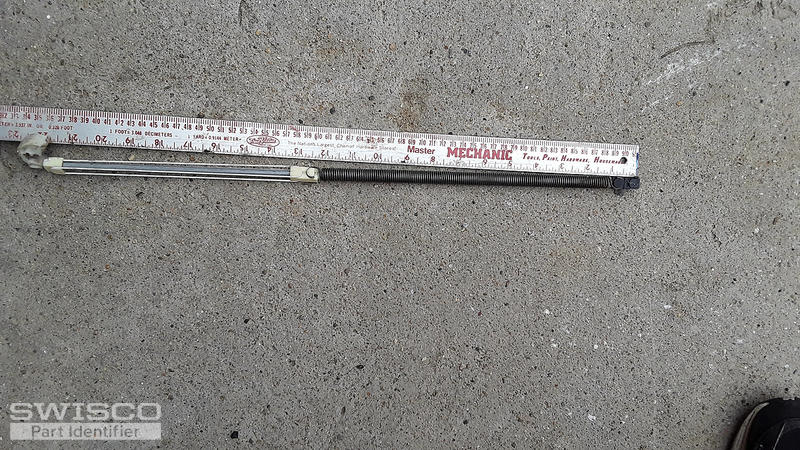

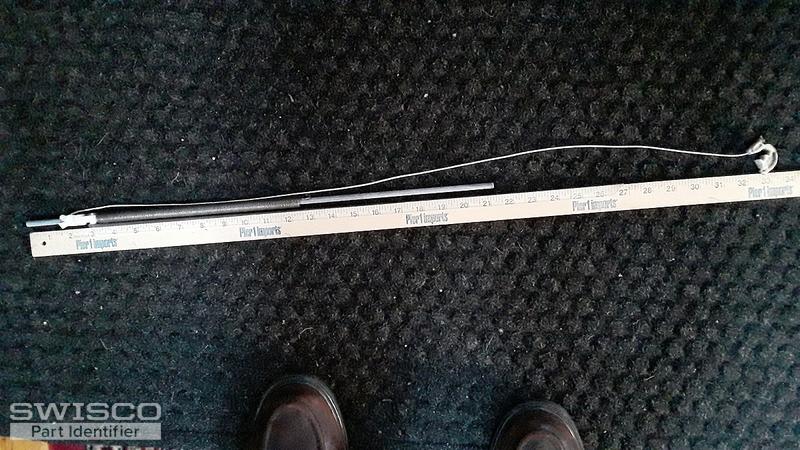

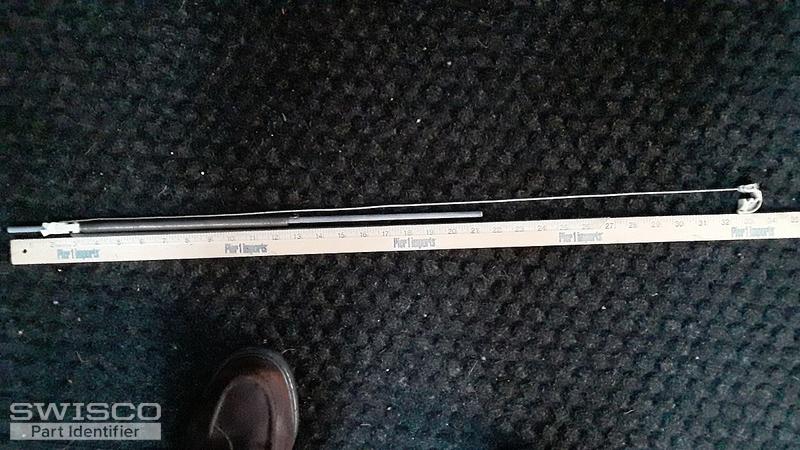

In this string, you should have all the pics you need. Most pics of mechanism show it next to a yardstick or ruler for measurement.

3 user uploaded images

Paul from SWISCO

Aug 6, 2020 11:38 am

Looks like you have a 22" long balance with a 1-1/4" wide bottom wedge shoe. Therefore, you can uses our S775-22 with a 2200 stamp for a sash weighing 6 through 17 pounds.
