folding crank for Kolbe windows

Home Owner from California

Jun 25, 2024 9:53 pm

Hi -Just bought a house with Kolbe crank windows. I'm looking for a folding crank to replace the existing ones that 'stick out'. Does such a beast exist?

6 Replies

Emily from SWISCO

Jun 27, 2024 11:20 am

Hello there!

Thanks for reaching out to us. We may be able to help with this. Can you upload a photo of the crank handle you have now? We'd also like to see a photo of the window open so that the arms that move the window sash are fully visible.

Home Owner from California

Jun 28, 2024 7:43 pm

Hi Emily - Please see attached 3 pages. Hopefully they are self-explanatory.

Home Owner from California

Jun 28, 2024 7:47 pm

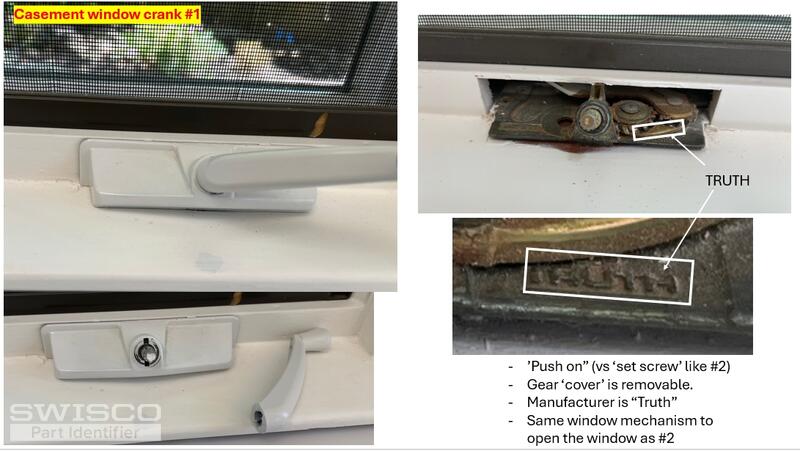

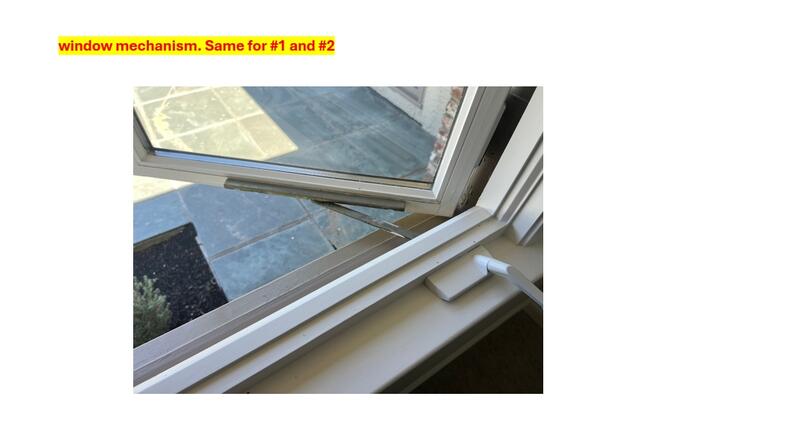

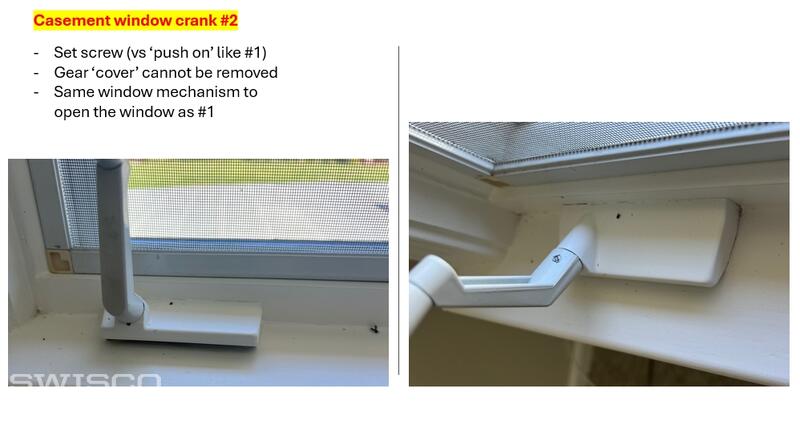

HI Emily - Please see attached 3 pix. Turns out my house has 2 types of window cranks (one with a removable gear cover; the other is not). Both seem to share the window opening mechanism, which makes me think they are the from the same manufacturer (Truth).

3 user uploaded images

Emily from SWISCO

Jul 1, 2024 9:19 am

Great, thank you! Truth brand operators have a 11/32" spline which is compatible with the 39-205 folding handle. Take a look at the specifications and let us know if you have any questions.

Home Owner from California

Jul 1, 2024 11:23 am

Will do! Thanks for the help :-)
