Looking for a direct replacement L shaped pivot bar for Kolbe windows that have the number 72521700 etched into the corners. No other markings on the window nor the broken pivot bar.
Three screw holes secure the bar to the side of the window with a metal slide that slips along the bottom of the window. The pivot pin or bar extends out the same side as the screw holes.
from a kolbe double-hung, hurricane rated window. "L" shaped
Quick Learner from Dartmouth, MA
Sep 29, 2023 9:41 am
2 user uploaded images
4 Replies
Casey from SWISCO
Sep 29, 2023 10:22 am
Hello,
Unfortunately, we do not carry an exact replacement for the pivot bar shown in your photos but we do carry a few similar options, which we've related on this page. I would start by reviewing the specifications of the 26-310 below to see if this might work as a replacement. If you could show us the pivot shoe that this part engages with, that could help us confirm if our pivot bar would be compatible. Thank you!
Detail of 26-310
Quick Learner from Dartmouth, MA
Oct 2, 2023 9:34 am

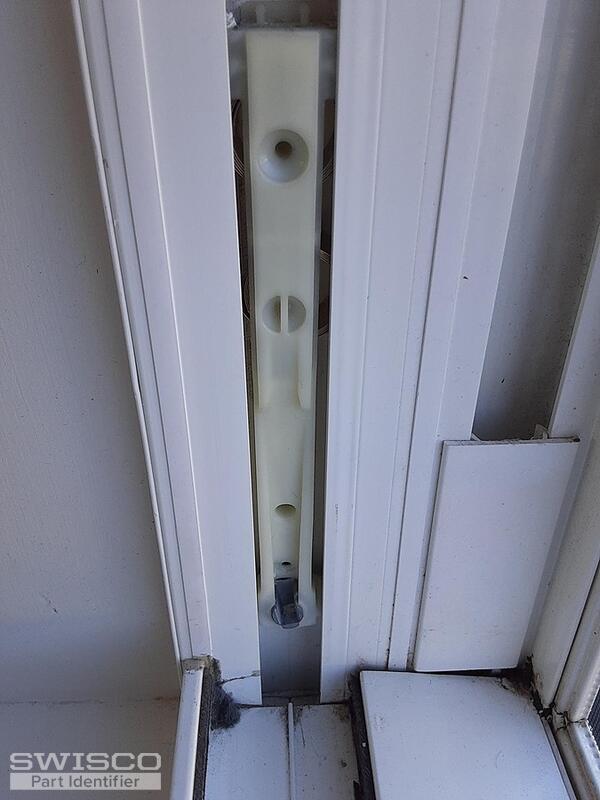

We took photos of the pivot show and added a ruler for size in the second photo. Thank you.
2 user uploaded images
Paul from SWISCO
Oct 3, 2023 2:40 pm
Though the installation holes might not line up with yours, I believe that the 26-310 pivot bars will fit into your pivot shoe similar to our 15-252. If you're comfortable making adaptations to attach the pivot bar to the sash, I agree that this would be our best replacement option. If you decide to give it a try and run into any issues, our return policy can be found here.
