glazing spline/bead

A home owner from Foxboro Masschusetts says:
August 6, 2020
These glazing strips are fairly rigid plastic with a roughly 3/4 inch side that runs beside the IGU and into a slot in the sash. The IGU is 7/16ths. There is a rigde on the inside and on the outside of the 3/4 inch side. The other side is approximately 1/2 inch and flat with no ridges. The 1/2 inch side sits flat on top of the glass and appears as the bead around the window. I may need between 250 and 300 linear feet.
Thumbnail of the uploaded file named IMG_4875.JPG
Thumbnail of the uploaded file named IMG_4876.JPG
Thumbnail of the uploaded file named IMG_4877.JPG

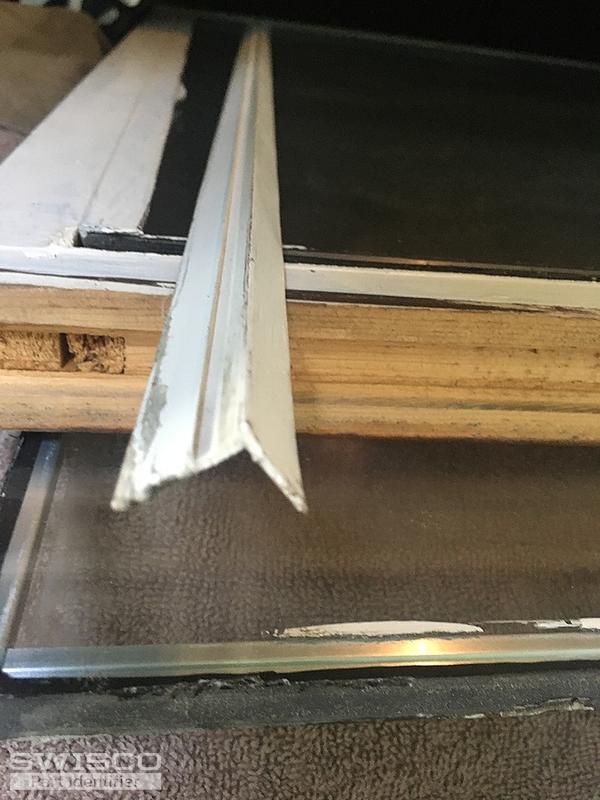

Thumbnail of the uploaded file named IMG_4878.JPG

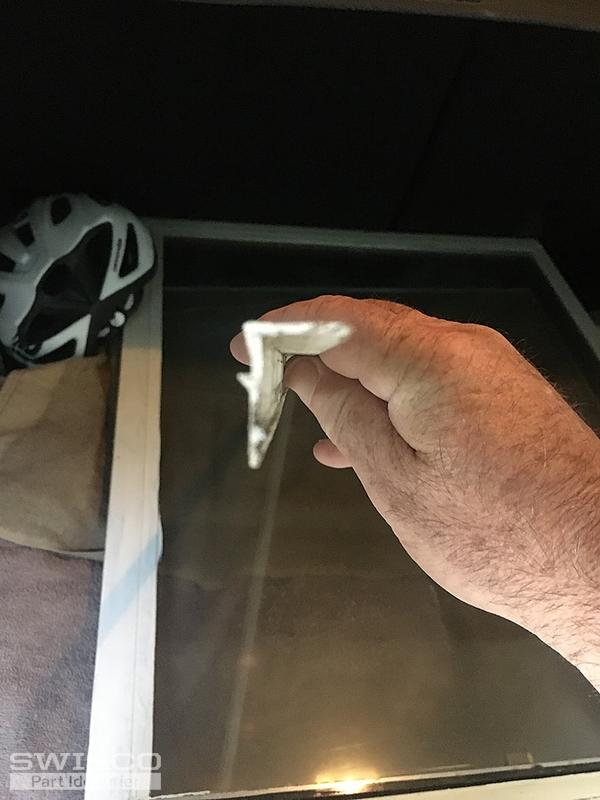

Thumbnail of the uploaded file named IMG_4879.JPG
Profile picture of Tom
Tom from SWISCO responded:
August 11, 2020

This glazing bead is similar in design to our 55-080, but our dimensions are a little different. Look it over and let me know what you think. I don't think we have anything closer, so this may be our best bet.

profile view of 55-080
profile view of 55-080
