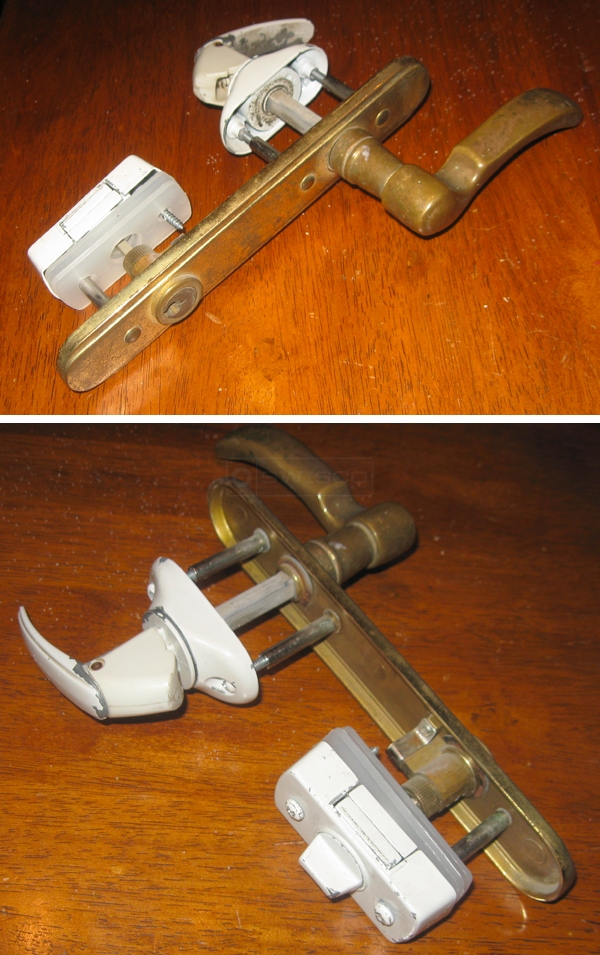

Hi, Total length is 8" long x 1 3/8" wide outside piece, from top to pivot stud that unlatches door is 2 1/8", screws are appx. 7/8" away from center pivot up & down, bottom lock is 2 1/8 from bottom to center of key hole lock, sticky label has The Forever View serial # A - 138 677, Thanks for your help, Keith
Hey, Keith. What exactly is the problem with this handle set? Do the inner and outer handles droop? The reason I ask is, if the only issue is a droopy handle, you can just replace the inner handle with our 40-150 and everything should start working well again. The inner handle is what contains the spring, so once you have one that works the outer handle should be good as new.
If you were interested in a complete handle set regardless, see our 40-058. I believe you could use this as a substitute. Let me know what you think.
