handle for sliding glass door

Home Owner from Santa Rosa
The marking says IWC. The screws are 4" apart. I hope you can help.
1 user uploaded image
6 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hey there!

Thanks for reaching out to us. We don't sell a handle with 4" hole center spacing. Can you double-check that for us? Make sure to measure from the center of each hole. Could we also see a photo of the mortise lock?

Home Owner from Santa Rosa
The distance between screws is 3 and 7/8 inches
2 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

I'm afraid we don't sell a handle with that kind of hole center spacing either. However, your mortise lock reminds me of the 82-218 which is commonly used with handle sets that measure 3-15/16" on the installation hole centers. Your measurement is very close to this so it couldn't hurt to triple-check.

If it is indeed 3-15/16", take a look at the specifications for the 82-030 and see what you think.

Hole center dimensions for 82-030
Hole center dimensions for 82-030

Dimensions for 82-030
Dimensions for 82-030

Home Owner from Santa Rosa

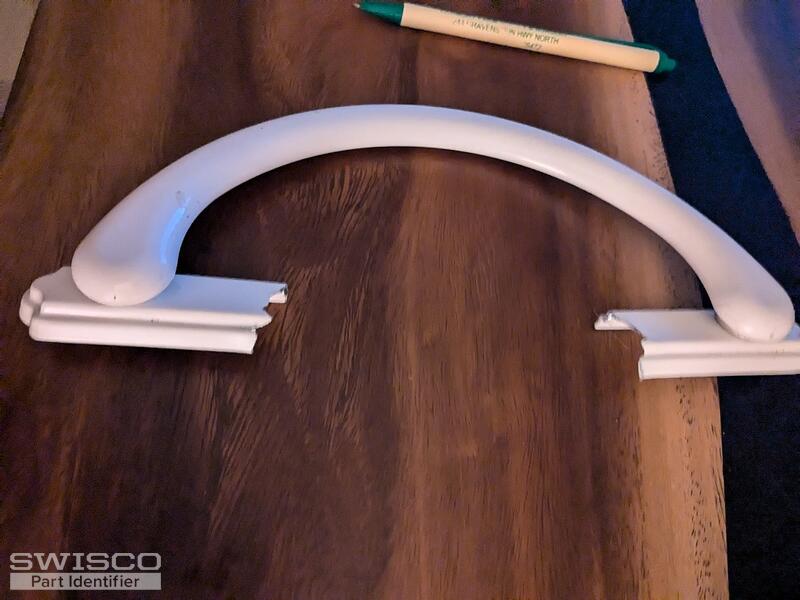

I double checked and the distance between screws is 3 15/16.  I looked at the 82-030.  It's not the same design as what I have but as long as the screws are in the right place, it should work, right?  I'll attach a photo of my current (broken) handle.
1 user uploaded image
Emily
Emily from SWISCO
SWISCO
Expert

Great! While the 82-030 is a different design, it should still work for you so long as the installation hole centers are the same.
