harcar window balance

Start a new Discussion

Quick Learner from 34231

Mar 1, 2021 6:06 pm

part is stamped 33c z - window locks say harcar - part looks like #385 channel balancer -

4 Replies

Tom from SWISCO

Mar 3, 2021 11:12 am

I'm not sure what you have, unfortunately. We have dozens of different balances with that stamp. It's not a product code or anything, it just indicates the strength of the spring.

I recommend watching the video below. That should allow you to confirm if the Series 385 is the proper replacement or not.

Quick Learner from 34231

Mar 8, 2021 5:01 pm

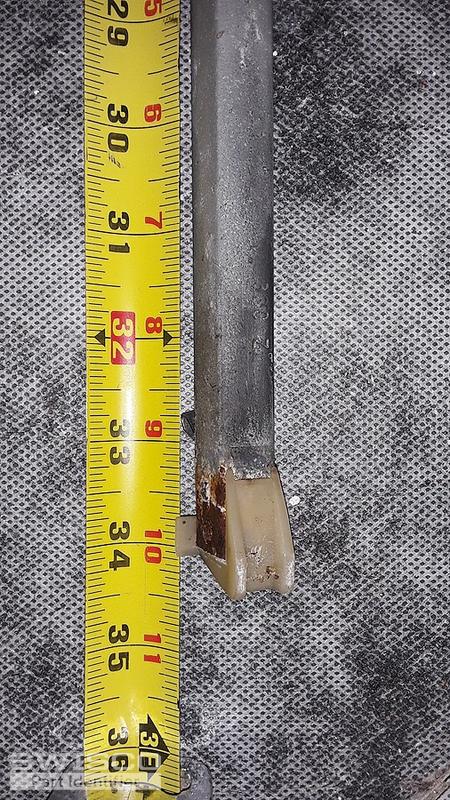

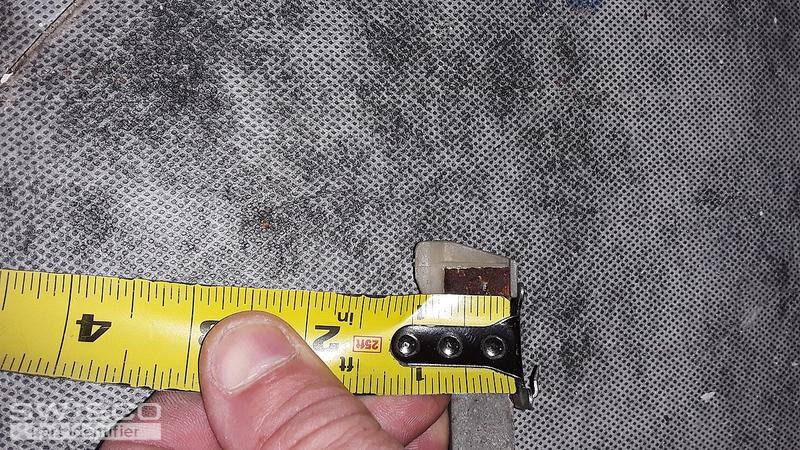

heres pics - again stamped 33c z -do i need to weigh windows? or take other pics - thank you

5 user uploaded images

Tom from SWISCO

Mar 9, 2021 8:34 am

These pictures are perfect, thank you. The depth of your shoe appears to be 1" from these photos, but the balance you initially picked out, the Series 385, has a shoe depth of 1-3/32". It's not always easy to confirm measurements from just a photo of tape measure but if I'm right then you want our Series 380 instead.
