hardware replacement

Hello!

You have the old Slimfold bi-fold doors but we carry the new style Slimfold door hardware that will work for you. Your first problem are the tracks, they look beat in the photo. The second is the seven foot length. The longest we carry are six foot. Depending on how your doors are set up, you might be able to put one 21-401 (3') and 21-404 (4') together. For the pins, you will need one 21-001 bottom corner adjusting pin. This pin will control the height of the door, the squaring up and the performance. The other three pins will be the spring loaded guide pins, our 21-007 . You will need one for the top corner pivot pin and the other two for the top and bottom guide pins. Review these parts and see what you think.

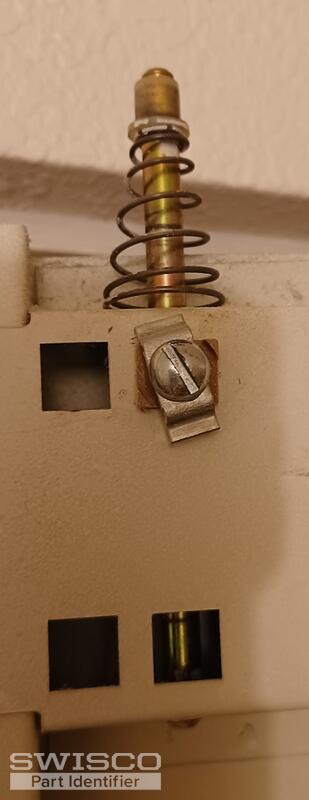

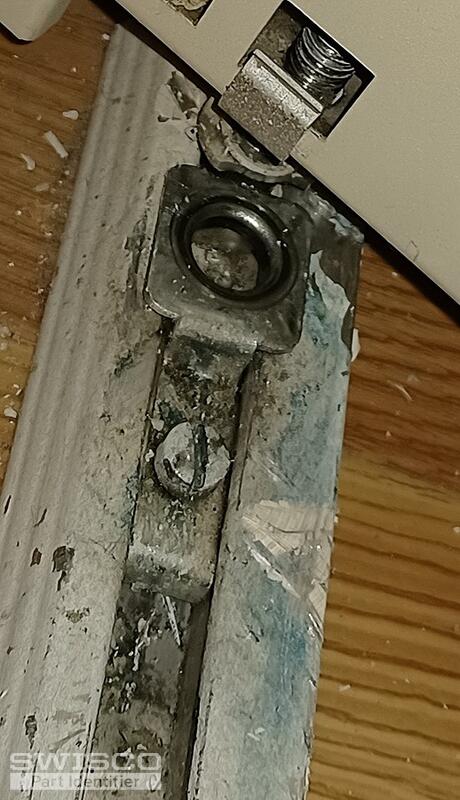

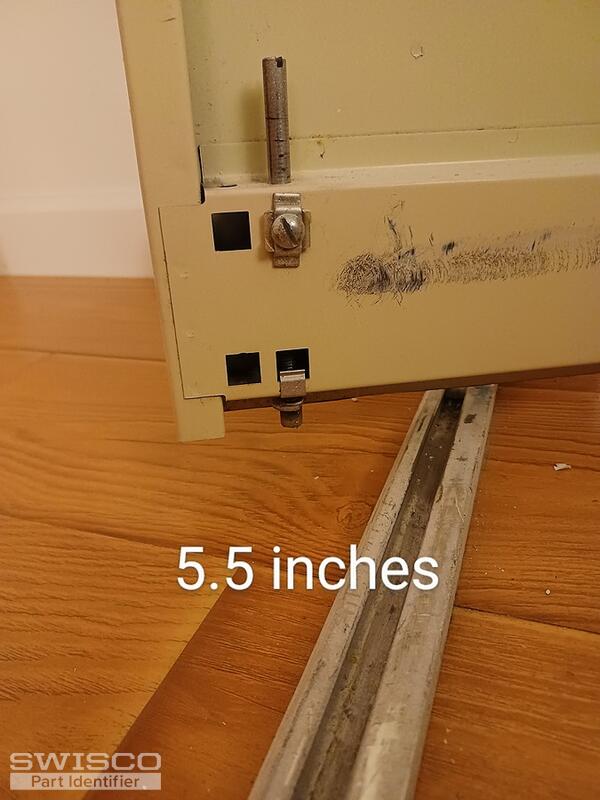

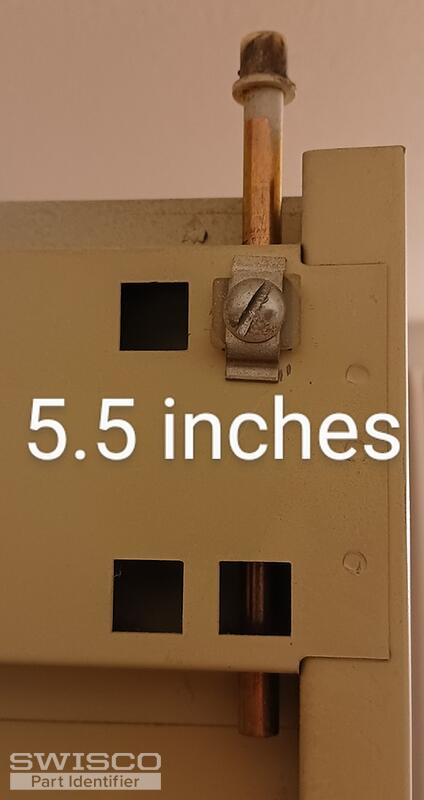

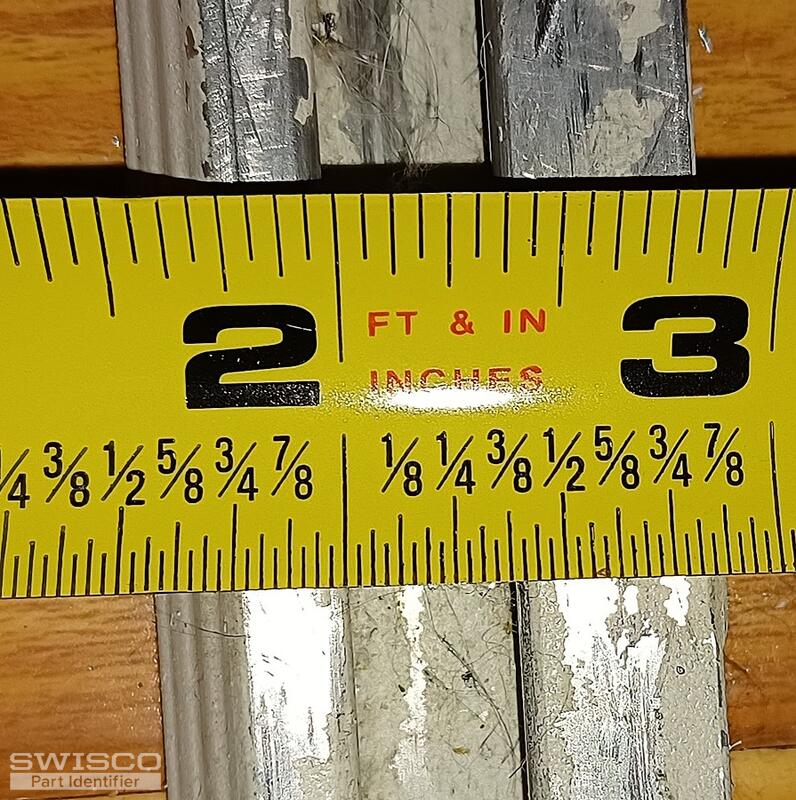

For the first and fourth photo you would used the 21-007 guide pins. For the last photo, you would use the 21-002 . For the second and third photo, you would use the tracks the 21-401 and 21-404  like I mentioned previously. The tracks are screwed on to the floor and you would line up the top and bottom tracks by the dropping a line from the top track down to the floor and make a mark on the floor. Let me know if this helps.

For two closet doors you will need the following:

(6) 21-007

(2) 21-001

(1) 21-401

(1) 21-404

(2) 21-277

You can reuse your (2) 21-154 from the old doors for the (2) 21-001 adjusting pins.
