hardware request for metalic bifold door

A quick learner says:
May 3, 2023
Please, I am seeking assistance with completing the hardware for 6 x 24" bifold panel for 3 x 48" closet. I picked up these used doors from a yard sale and would like to install them.

I am primarily missing the 3x upper tracks and 6 x pivot/jam bracket (and associated pins). Some of the hardware in the photo does not spring anymore, I therefore would like purchase about 50% of what is required so I could mix and match.



Please see attached photos and thanks in advance.

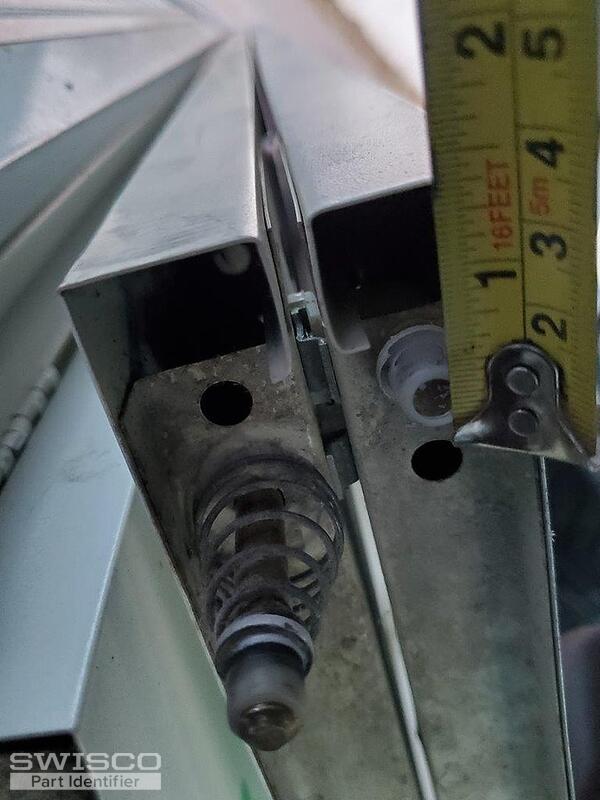

Thumbnail of the uploaded file named 20230502_212049.jpg

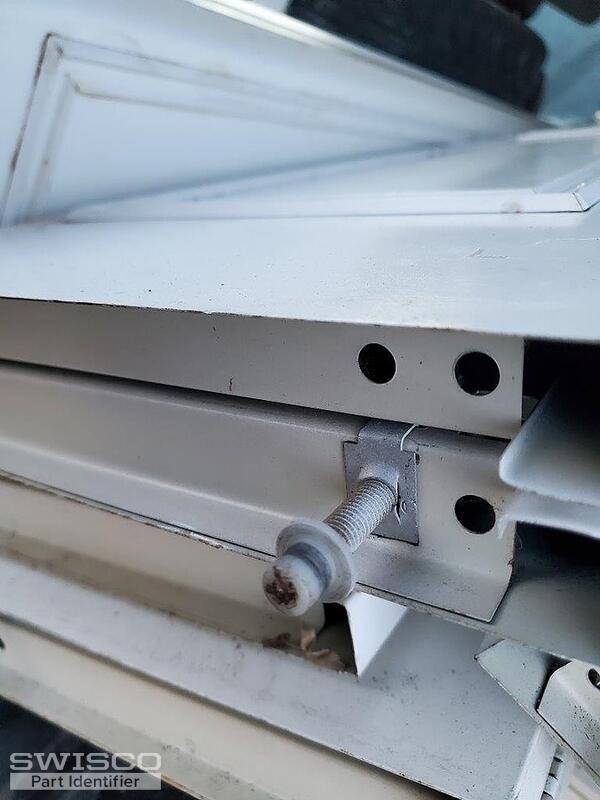

Thumbnail of the uploaded file named 20230502_212032.jpg

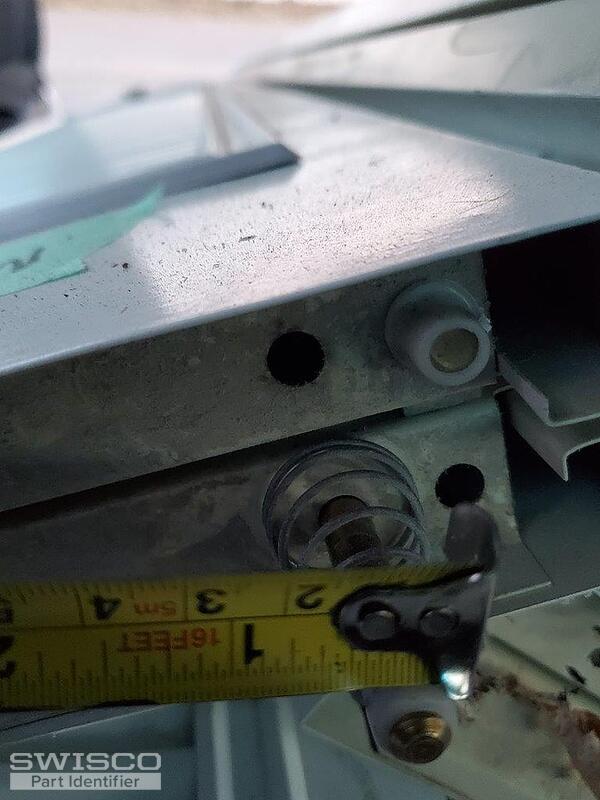

Thumbnail of the uploaded file named 20230502_211932.jpg

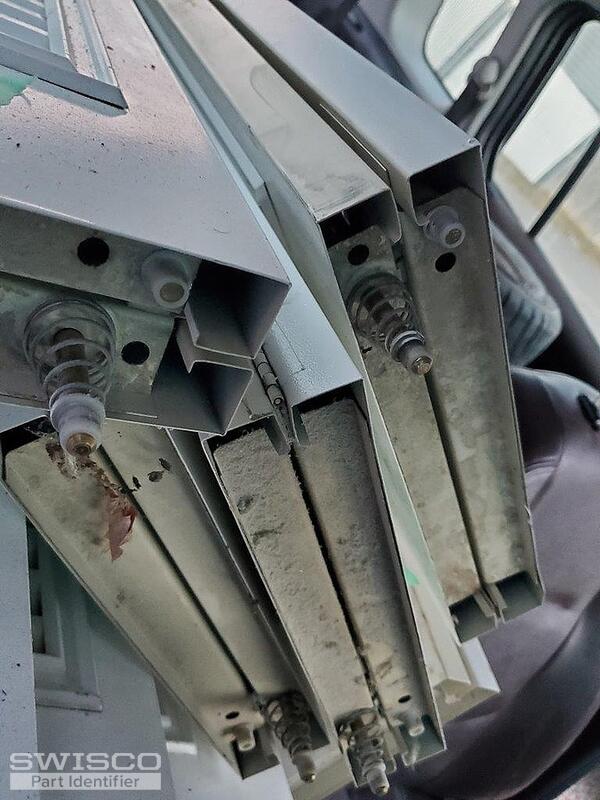

Thumbnail of the uploaded file named 20230502_211844.jpg

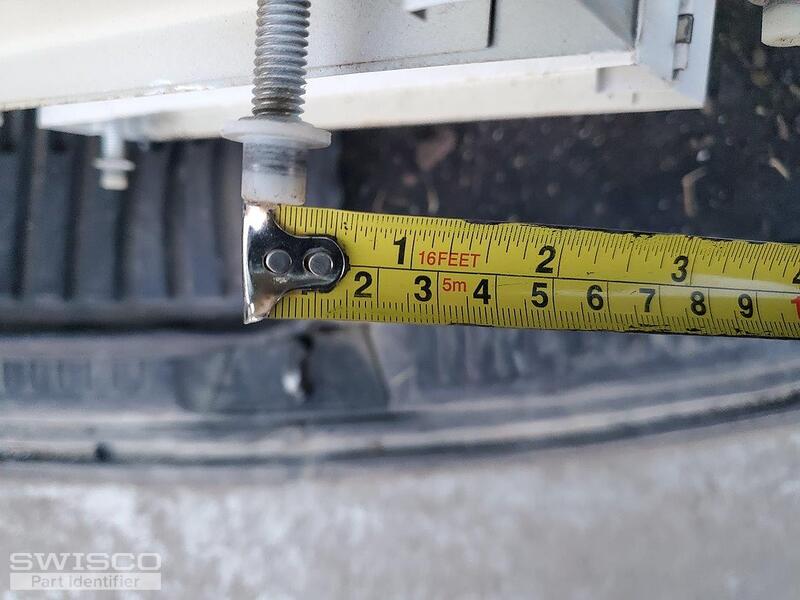

Thumbnail of the uploaded file named 20230502_212014.jpg
Profile picture of Paul
Paul from SWISCO responded:
May 4, 2023

Hello,

You have the old Slimfold bifold doors. We carry the parts for the new style that will fit in your door. For the tracks, look at the 21-401 (3') up to 21-404 (4'). For the bi-fold pins, you will need one bottom threaded pivot pin, 21-001 and for the other three, you will use the 21-007. We only have the replacement cap for the threaded pin 21-106. Please review and let us know if you have any additional questions.
Bi-fold Door Pivot Assembly
Bi-fold Door Pivot Assembly
21-001
$6.95
Bifold Door Guide Pin
Bifold Door Guide Pin
21-007
$3.87
Bifold Track Bumper
Bifold Track Bumper
21-277
$2.07
Pivot Rod Clamp
Pivot Rod Clamp
21-154
$1.46
Bifold Track, 3' Opening
Bifold Track, 3' Opening
21-401
$8.71
Bifold Track, 5' Opening
Bifold Track, 5' Opening
21-402
$17.15
Bifold Track, 6' Opening
Bifold Track, 6' Opening
21-403
$18.57
Bifold Track, 4' Opening
Bifold Track, 4' Opening
21-404
$12.75
Bifold Pin Cap, 3/16" ID
Bifold Pin Cap, 3/16" ID
21-106
$0.85
