help finding new PAN * AM crank

Home Owner from vero beach fl

Oct 17, 2013 7:51 am

i already know if i need a right or left i just dont know what number to order can you take a look and let me know please. 4 pictures

the other question, i sent a picture showing no crank. can i buy a crank and put it in and then the window will open and close? picture 5 shows what im talking about this for these windows.
thank you so so much.
wendy

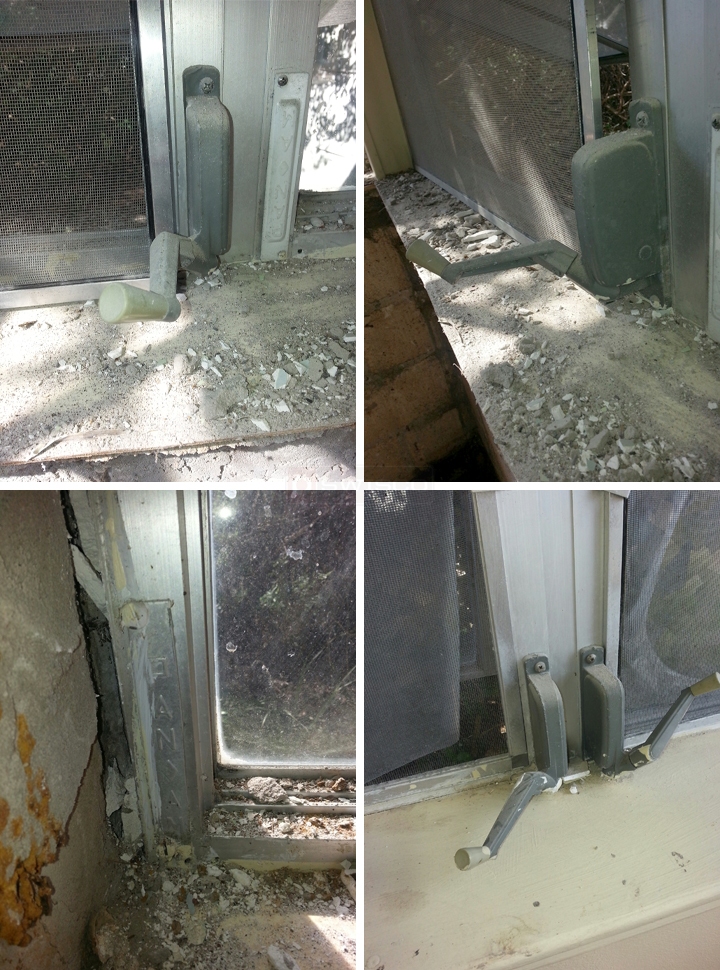

User submitted photos of a window operator.

6 Replies

Dave Sr. from SWISCO

Oct 17, 2013 3:06 pm

Hey, Wendy, thanks for contacting us. I recommend that you check out our 39-016 and 39-017, to start. It's hard to tell if these will work, but look them over and see what you think. If you aren't sure, I'd like to see a few pictures of your operators as fully removed from the window. I'd also like to know more dimensions, namely the distance between the installation holes, center-to-center.

Quick Learner from VERO BEACH

Oct 17, 2013 7:46 pm

I DID MEASURE AND THE DISTANCE BETWEEN THE SCREWS AT THE TOP AND BOTTOM IS 5 1/4

IS THAT WHAT YOU NEEDED?

ALSO WHERE THERE IS A PLATE OVER THE OPENING THE CRANK WOULD GO. CAN YOU TAKE THAT OFF AND PUT A CRANK IN?
THANK YOU SO MUCH YOU ARE BEING VERY HELPFUL.

Dave Sr. from SWISCO

Oct 21, 2013 1:10 pm

Yes, you should be able to remove that plate to install an operator. However, I will still need to see one removed from the window in order to identify it. I have to see what the arm looks like. Let me know!

Home Owner from vero beach

Oct 29, 2013 11:39 am

if the opening where the crank goes, has a cover on it. can i take it off and put one in?

i cannot get the crank out to take any better pictures so do your best to tell me what to order, please.

wendy

Dave Sr. from SWISCO

Oct 30, 2013 12:33 pm

Hmm... how about our 39-061? Does this look like a good match to you? You will have to carefully compare the style and dimensions we show to your own hardware and see what you think.
