help identifying PN to replace channel balance

Quick Learner from Graniote Bay, CA

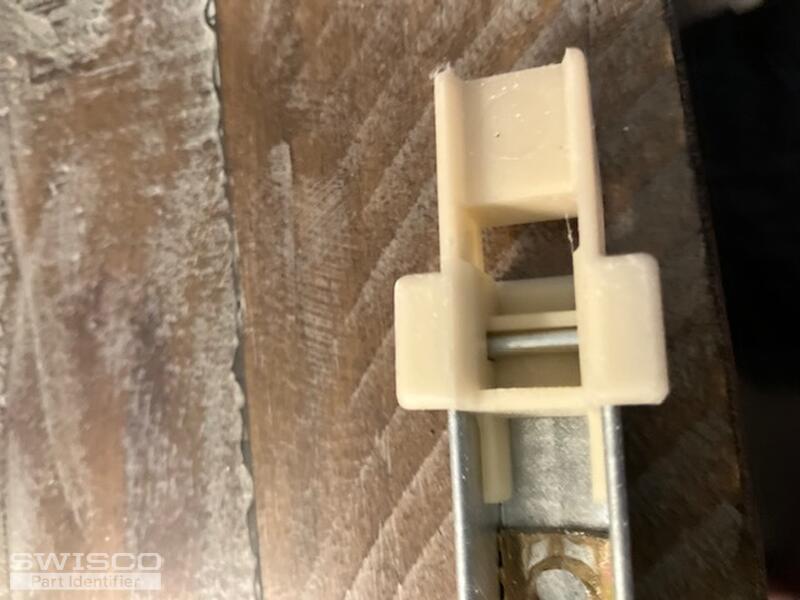

I have provided pictures of this channel balance. It is 24 inchesd long. and as pictured has the labeling " 23 2 CR CALDWELL" printed on the side.

Can you help me with part number and directions for ordering and installation?

Regards,

David

PS let me know if you need more info.

4 user uploaded images
7 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hi there David.

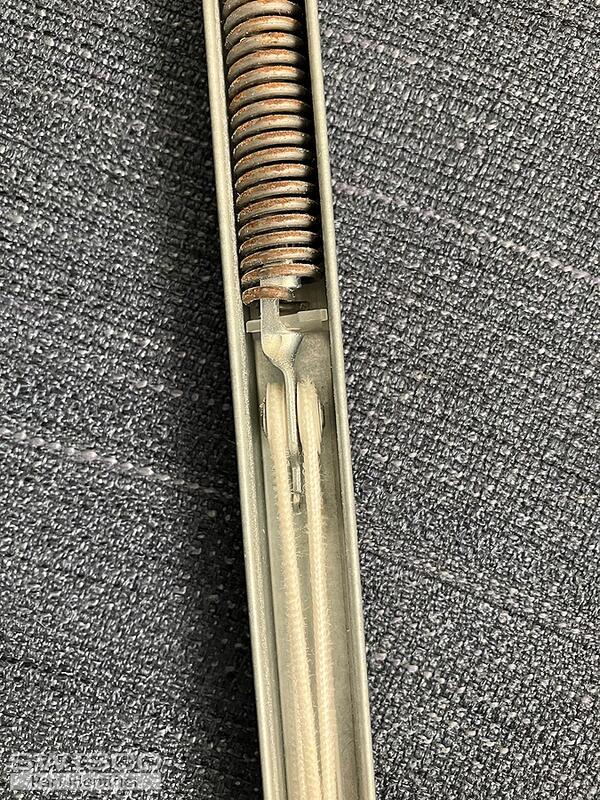

Thank you for reaching out to us. We can help with this. Before we make a recommendation, can you also show us a photo of the inside of the balance's metal channel where the innerspring connects to the pulley mechanism? That'd be located in the middle of the channel.

Quick Learner from Graniote Bay, CA

Hope this photo is what you are looking for

Thank you,

Davi

1 user uploaded image
Emily
Emily from SWISCO
SWISCO
Expert

This is perfect, thanks so much! Based on the photos you've given us, I recommend our S380-24 or S385-24 channel balances with the 2320 stamp option. The best match will depend on the depth of the bottom shoe so you'll have to measure as shown below.

We also have a video detailing the replacement process for this type of balance. I'll post that below.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.

Quick Learner from Graniote Bay, CA
Should channel balances be replaced in pairs even when only one is broken?
Quick Learner from Graniote Bay, CA

I just want to thank your whole team. Your support is fantastic and your videos make it all so easy to make repairs.

Thank so much!

David

Emily
Emily from SWISCO
SWISCO
Expert

Yes, that's correct! We always recommend you replace the balances in pairs. Pairing a new balance with an old one would only cause the newer balance to wear out much faster as it'd have to pick up the slack for its older counterpart.

Thank you for your kind words! We're very happy we could be of help. Please don't hesitate to reach out if you have any future hardware repairs!
