help identifying crank

A home owner from Rhode Island says:
Hello - was hoping you could help with identifying a crank.

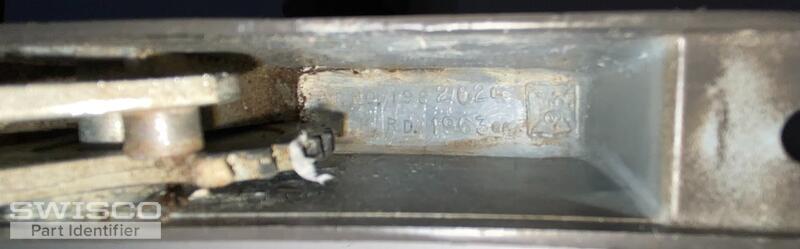

The interior markings are:
Pat. No. 198202 US
2 R.H. RD. 1963 CAN
93

Thanks for the help.
Thumbnail of the uploaded file named IMG_0336.jpg
Thumbnail of the uploaded file named IMG_0338.jpg
Thumbnail of the uploaded file named IMG_0340.jpg
Thumbnail of the uploaded file named IMG_0348.jpg
A home owner from Rhode Island says:
I should have included this:

Lever markings:
11500-11 Pat. Pending

Crank specs
5 1/4" - length between top/bottom hole-to-hole
1 1/8" - width between bottom two holes
2 1/2" or possibly 2 3/8" link arm length

Thanks!
Profile picture of Casey
Casey from SWISCO responded:

Hello,

I would recommend starting by comparing the specifications shown on the 39-025 product page to your crank assembly. Let us know if you notice any discrepancies and we can go from there. Thank you!

A home owner from Rhode Island says:
Thank you! I will try.

Quick follow up: I can't find a link arm that is exactly what I need (2.5 inches). Is it better to get one that's a little too long, or a little too short? (Or is it better to just to try and see?)
Profile picture of Casey
Casey from SWISCO responded:

Honestly, these operators have a good amount of play in the arms, so a slight difference in the arm length shouldn't make or break the repair.

The key dimensions that should be exact are the installation hole spacing, as well as the 10-24 thread bushing at the base of the 39-025 link arm.

A home owner from Rhode Island says:
Great - thank you!!
A home owner from Rhode Island says:
39-025 worked perfectly. Thank you for your help.
Profile picture of Casey
Casey from SWISCO responded:

That's great to hear! Please let us know if you need anything else.

A home owner from Rhode Island says:
Just one more question - do I need a should bolt washer? I bought one ( 33-206 ), and see that it is a little big for the hole in the awning mechanism, and I'm not sure if I need to force it in, or find another size etc. The windows seems to work fine without it.
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:

The 33-206 is the correct nylon washer that goes with the 39-025 . It could be that the hole in the window linkage is a little too small. If so, you could try using a rat tail file to open up the hole a bit.

A home owner from Rhode Island says:
Thank you that worked.
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:

Fantastic. Please let us know if you need anything else.
