hinge needed for lazy Susan door

A handy person from Hudson Mass says:
March 7, 2021

There is no mfg name on hinges. Guessing cabinets were new 15 years ago or so.

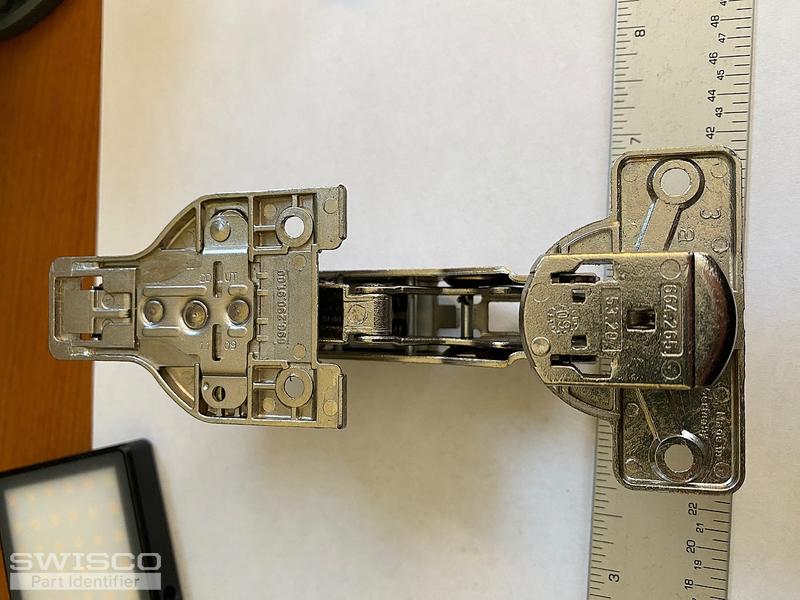

marking on base end. 596.290.91.00 2D UT

11 09

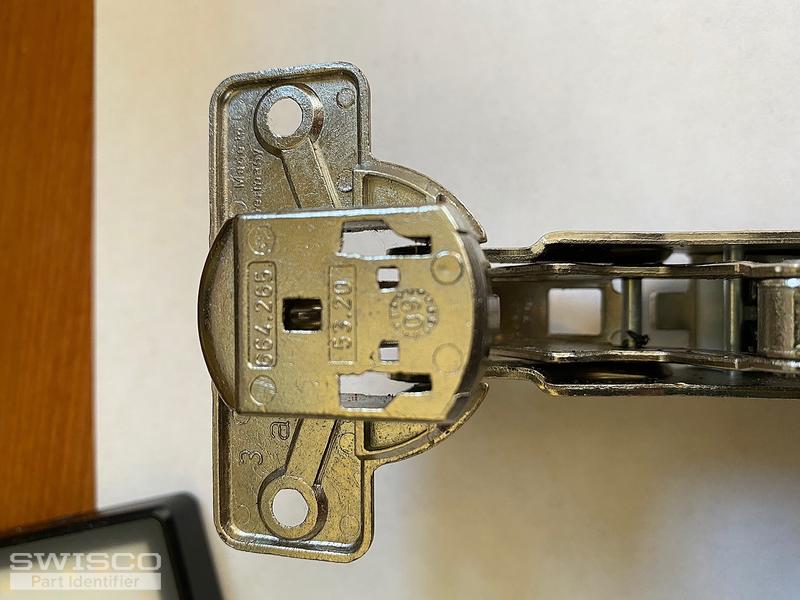

marking on door end 664.265.

53.20 made in Germany.

Thanks

Tim

Thumbnail of the uploaded file named IMG_1414.jpeg
Thumbnail of the uploaded file named IMG_1417.jpeg
Thumbnail of the uploaded file named IMG_1416.jpeg
Thumbnail of the uploaded file named IMG_1418.jpeg
Thumbnail of the uploaded file named IMG_1420.jpeg
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
March 9, 2021

Hello,

Take a look at the 32-344 large opening hinge made by Blum. See if you can adapt this to work for your cabinet. You might need to make new mounting holes in the cabinet, but I don't know if you'd be able to salvage your cabinets any other way. The large hole in the door itself should line up, though, so see if this might work for you. Thanks for posting!
A handy person from Hudson Mass says:
March 29, 2021
Thanks for the help. They did work. The door end screw holes were just off a touch and was not an issue. The cabinet end was not close but it was not a problem adding new holes in the cabinet base. works great. Thanks again, tim
Large Opening Angle Blum Cabinet Hinge and Plate Set
Large Opening Angle Blum Cabinet Hinge and Plate Set
32-344
$23.43
