Hello,
The dimensions of the window slider tandem rollers in the attached images are:
Overall housing height = 0.30"
Overall housing length = 1.52"
Width of housing body = 0.55" (width of housing across the retaining tabs = 0.62")
Housing appears to be nylon material. The housing has one protruding round feature that fits into an 1/8" hole in the bottom of the window frame (to retain the roller and keep it in position as the window slides open or closed)
Roller diameter = 0.30", roller width = 0.24"
Roller material is steel (it's magnetic and it rusts)
I am not sure who is the maker of these windows. There is no logo or tag I can find on the window or on the window frame.
The approximate year of manufacture for these windows is 1996 (I bought the house new in 1996)
Your part number 87-181 is the closest match that I can see, but maybe you know of something better as a replacement. I can send more images if that will help. Thank You!
horizontal sliding window tandem rollers

Handy Person from Longmont, Colorado
Aug 9, 2024 12:48 pm

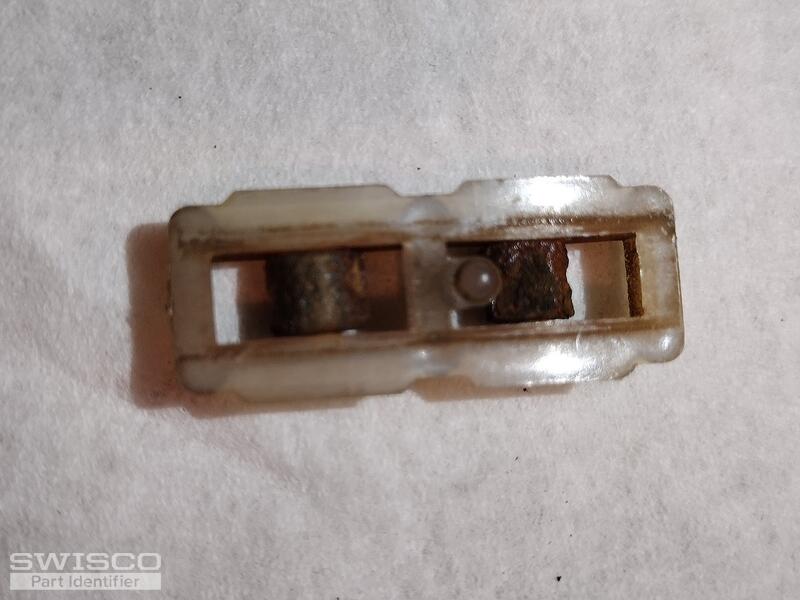

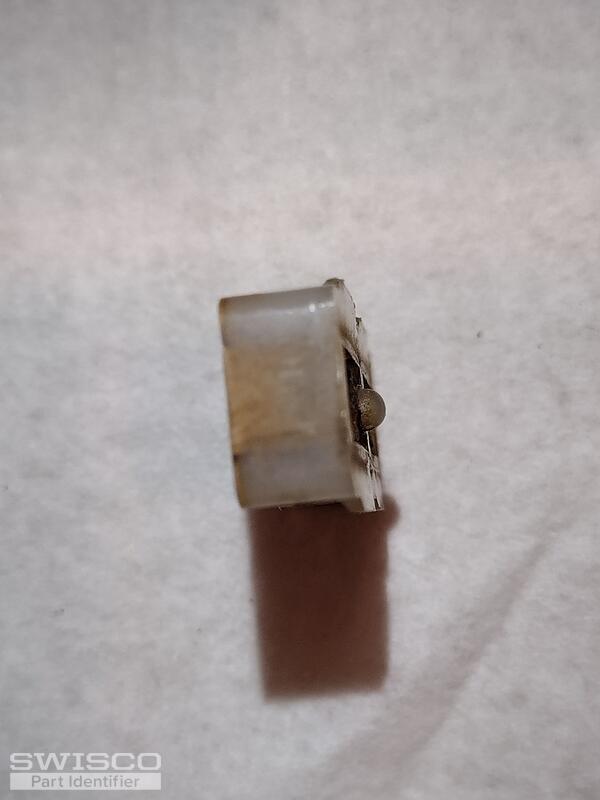

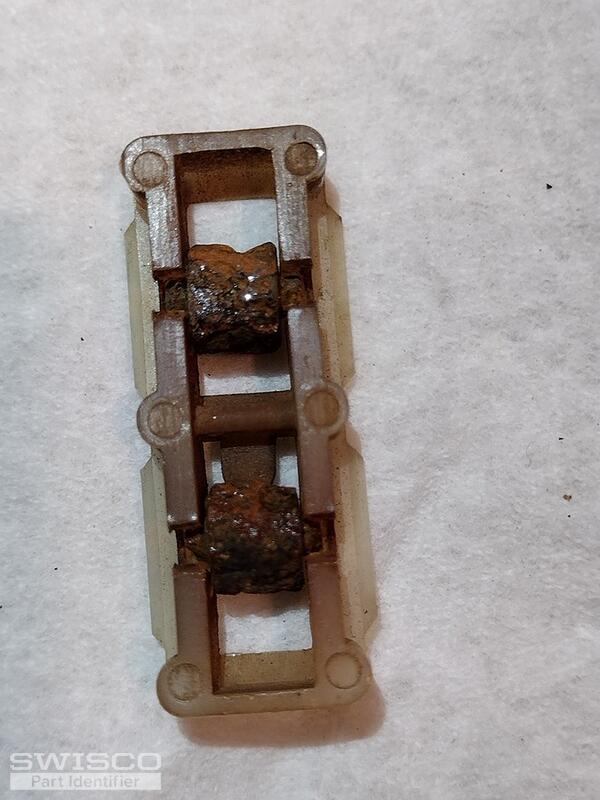

3 user uploaded images
4 Replies

Casey from SWISCO
Aug 12, 2024 2:21 pm


Hello,
We'd be happy to look into this for you but it's tough to tell based on the bottom of the roller. If you could show us a photo of the side of the housing as well, we can go from there. Thank you!

Handy Person from Longmont, Colorado
Aug 13, 2024 12:33 am
Hi Casey,
OK, see if these 4 newly uploaded pictures better show the roller housing assembly details. Thank you.
I did have a glass technician at my house today to estimate cost on replacing a cracked glass pane in a window. I asked him if he could recognize who the manufacturer of these windows might be. He said it is possible that they are Jeld-Wen windows, based on that there are alot of houses in my area that were built with Jeld-Wen windows (though he wasn't 100% certain).
OK, see if these 4 newly uploaded pictures better show the roller housing assembly details. Thank you.
I did have a glass technician at my house today to estimate cost on replacing a cracked glass pane in a window. I asked him if he could recognize who the manufacturer of these windows might be. He said it is possible that they are Jeld-Wen windows, based on that there are alot of houses in my area that were built with Jeld-Wen windows (though he wasn't 100% certain).

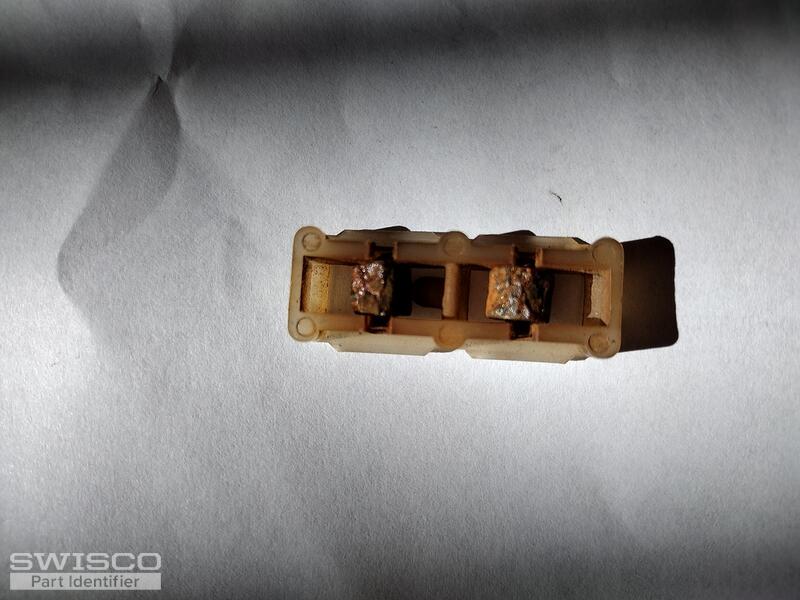

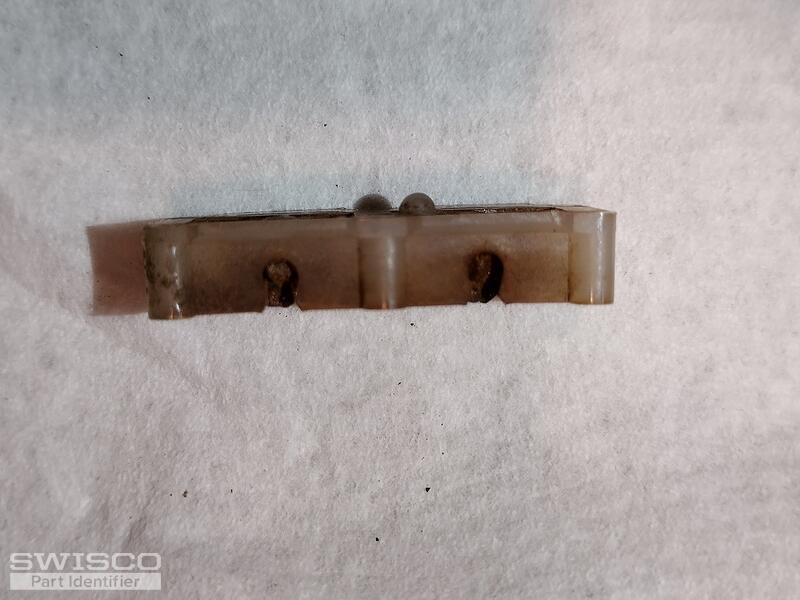

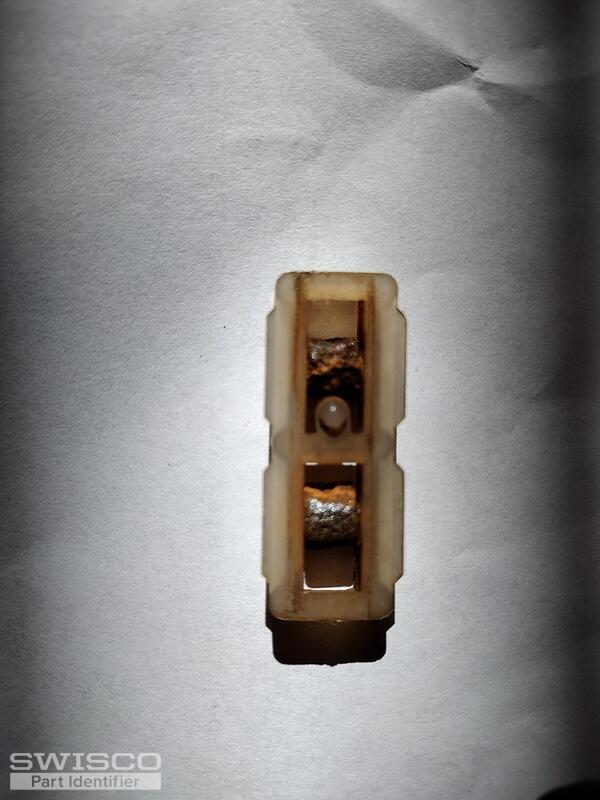

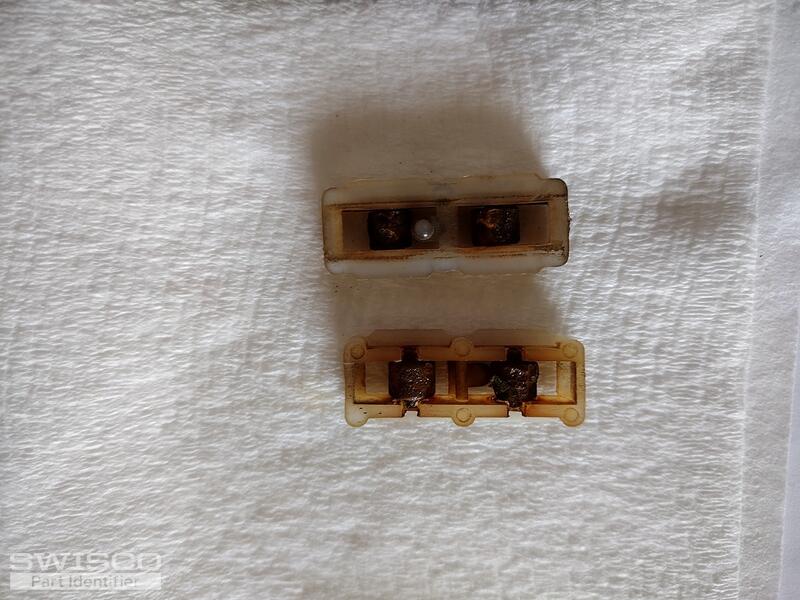

4 user uploaded images

Casey from SWISCO
Aug 13, 2024 8:23 am


Thanks for getting back to us. Unfortunately, we do not carry a match for the sliding window roller shown in your photos. If you are able to reuse the original housings, you're welcome to look through our selection of replacement wheels here depending on the size that you need. I'm sorry that we won't be able to offer more assistance but please let us know if you have any other hardware questions.
