identify balance to order

Quick Learner from Arkansas

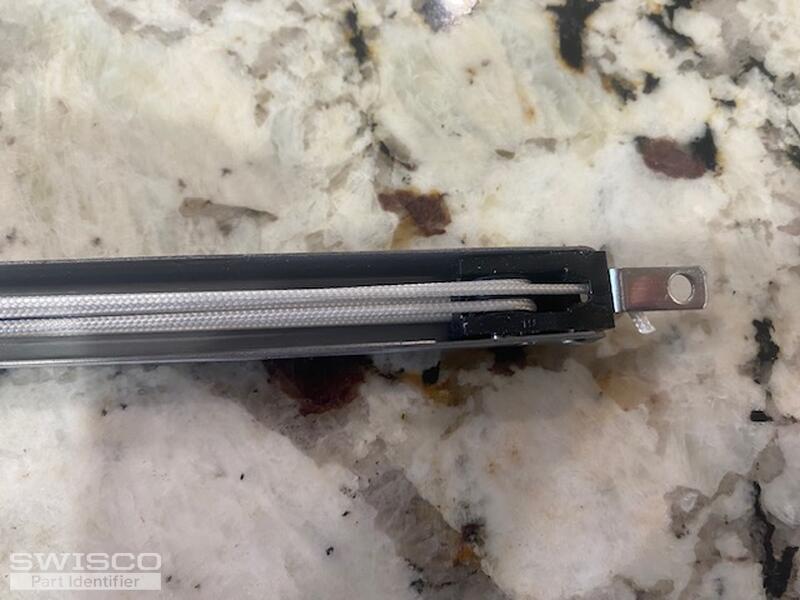

Need part number to order. Balance slide is 20 inches long total length is 21.5 inches and the width is 9/16 inch.
4 user uploaded images
2 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Your balance can be replaced with the S795-20 with a 20B stamp. The shoe that will come installed on the balance is the 15-195 1-1/4" T-Lock Shoe with a closed cam. Be sure to confirm that the width of your shoe is 1-1/4".

You may also want to double check that the cam on the back of your shoe isn't "open". If it is open, you'll need the 15-195B.

Dimensions for 15-195
Dimensions for 15-195

Alternate view of 15-195
Alternate view of 15-195

Alternate view of 15-195B
Alternate view of 15-195B
