identifying crank operator

Quick Learner from SALEM, OR

Jul 23, 2024 5:23 pm

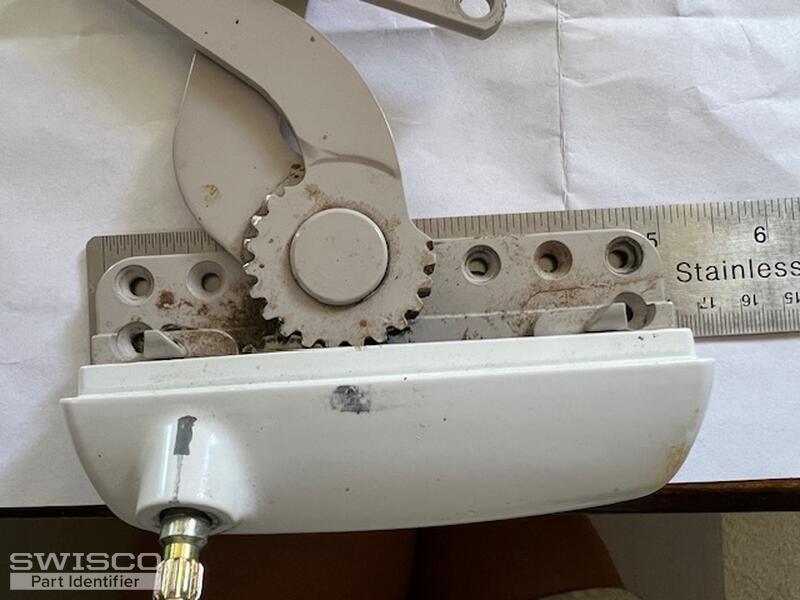

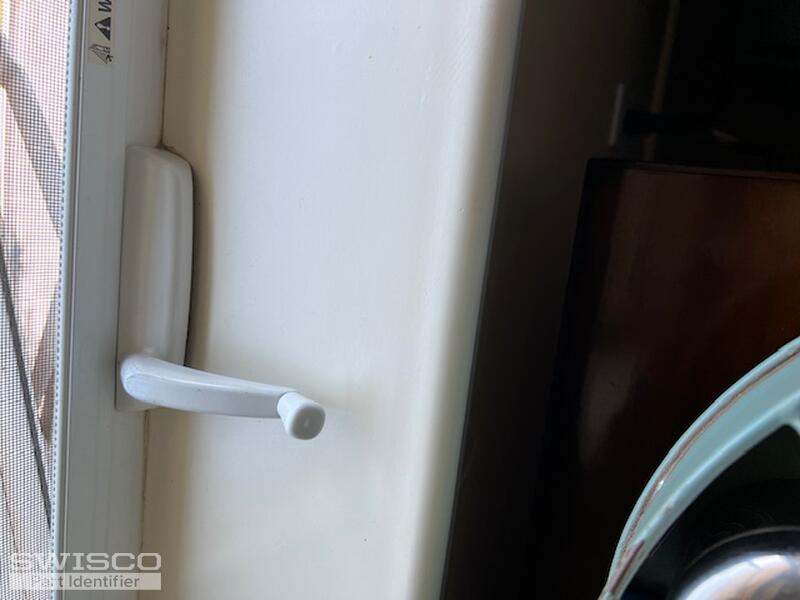

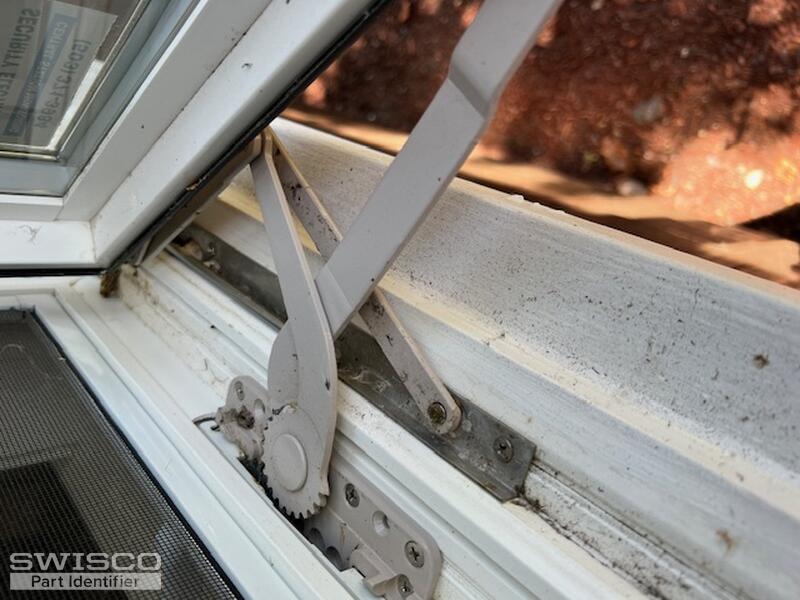

I need the following part, looks like EntryGard Dual Arm Operator
Product Code: 39-031. I believe my window swings left (please see photo)?
I have 3 other photos I'll send in the next email. You can see it says "Truth" and a # of 41012. Thx, Drissana

5 user uploaded images

6 Replies

Home Owner from SALEM, OR

Jul 23, 2024 5:24 pm

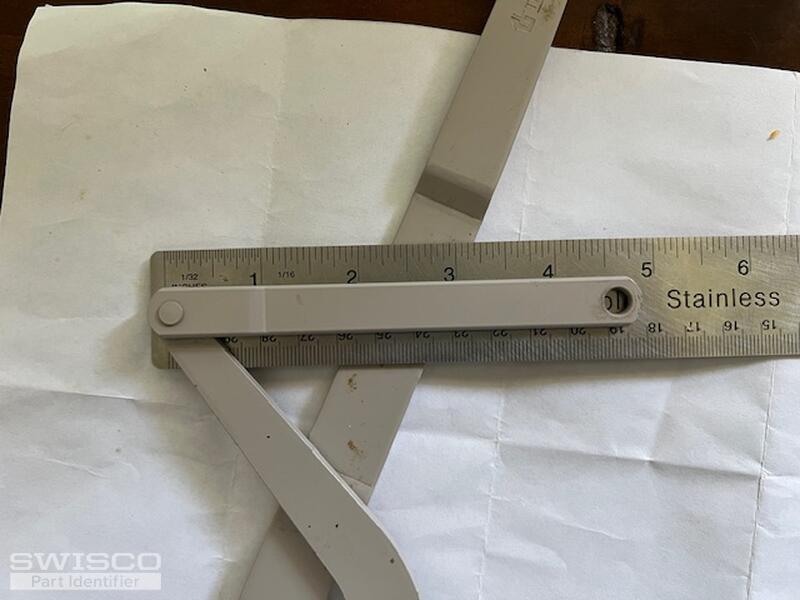

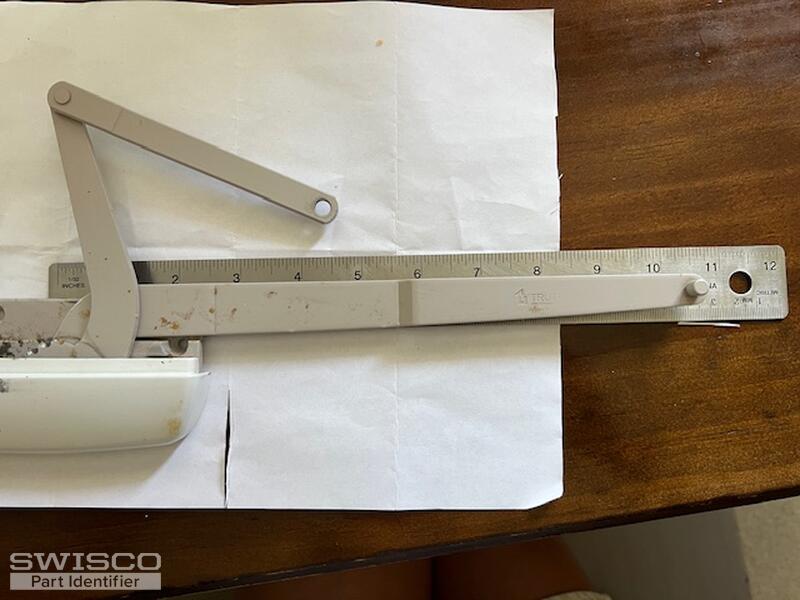

Added more photos with measurement. thx

3 user uploaded images

Casey from SWISCO

Jul 25, 2024 12:26 pm

Hello,

Your operator looks like a closer match to one of the Encore operator pairs featured in the video below. The determining factor would be the type of fitting used to attach the long arm to the sash track. Take a look at the related options and let us know if you have any other questions. Thanks for posting.

Home Owner from SALEM, OR

Aug 5, 2024 7:02 pm

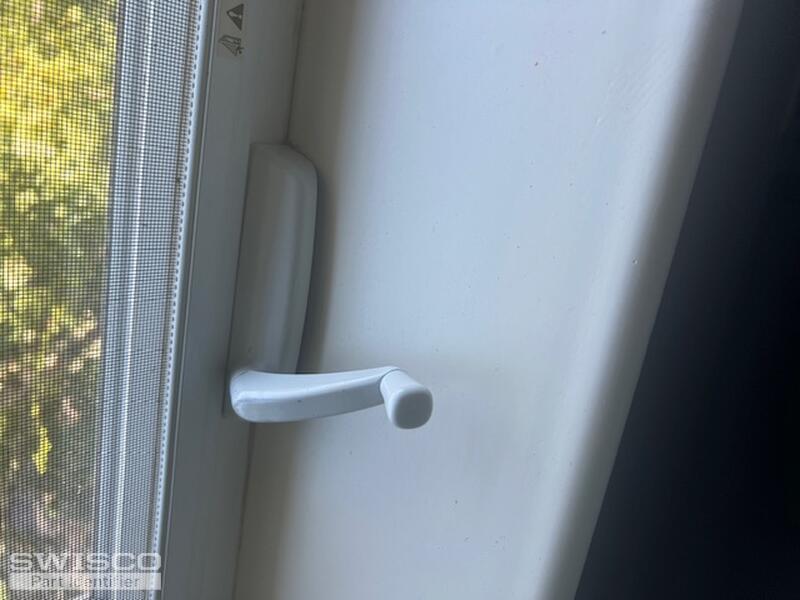

Thank you. It appears my crank operator is the 39-253LB with the corresponding black piece 39-529. Do I also have to purchase a cover for the handle? If so, please identify the part for me. Currently, my handle does not fold.
Thank you again, DT

1 user uploaded image

Home Owner from SALEM, OR

Aug 5, 2024 7:08 pm

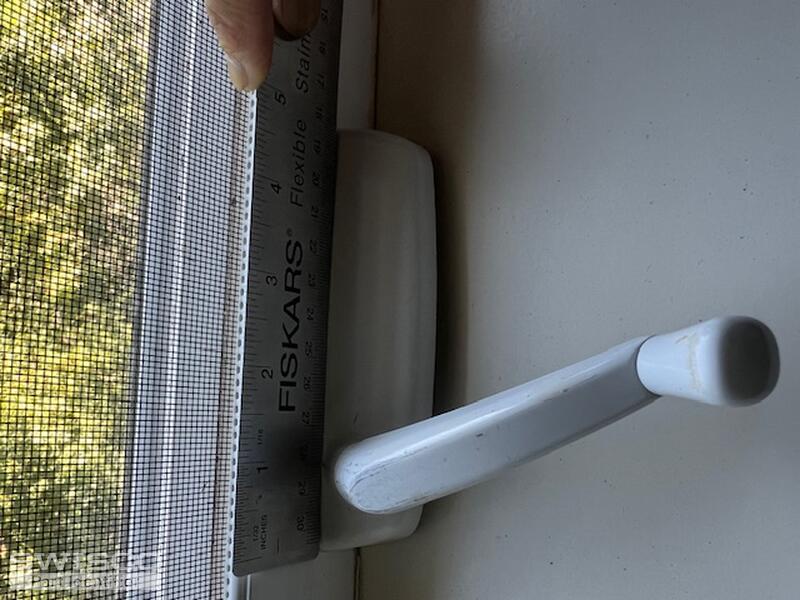

adding photo with measurement of the crank and cover.

1 user uploaded image

Casey from SWISCO

Aug 6, 2024 8:01 am

You are correct that the handle and cover are sold separately for these operators. See the 39-451 standard or 39-375 folding handle with cover used with the 39-253LB operator.
