Millguard window single hung no tilt

A home owner from Las Vegas NV says:

Need a channel balance stamped 26050 FU CMC 2 for a Millguard single hung open up no tilt.

Thumbnail of the uploaded file named 26050 FU CMC 2
Thumbnail of the uploaded file named IMG_9437.jpg
Thumbnail of the uploaded file named IMG_9438.jpg

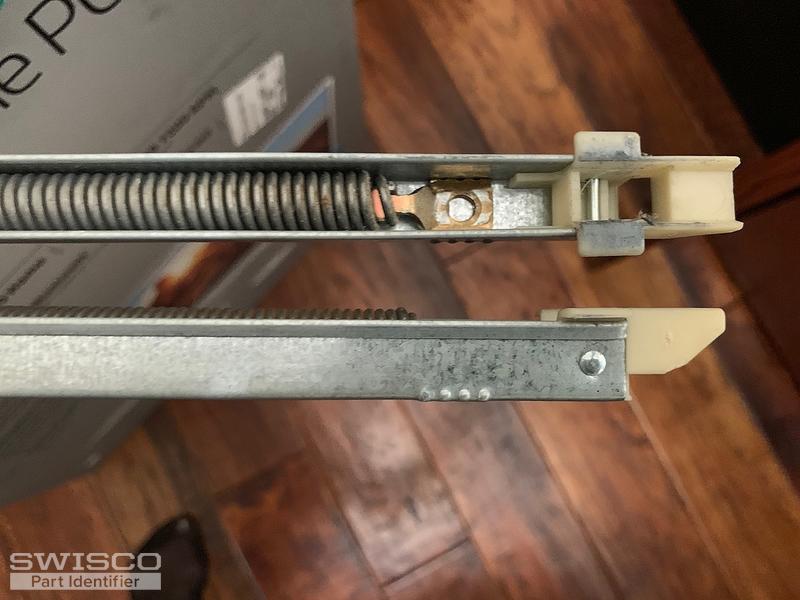

Thumbnail of the uploaded file named IMG_9439.jpg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for posting. We can definitely help you replace these balances, but I'd like to double check a few things to be safe. Could you show us a few more pictures of the bottom nylon shoe (or larger end attachment)? Does the other balance have wings on both nylon attachments, or is it just the top nylon cap for both? Also, could you confirm the length of the metal channel, not including the end attachments? Many thanks.

A home owner from Las Vegas NV says:
its 27" some look like some plastic parts are broken and one window was missing one balance....I should need 4 of them

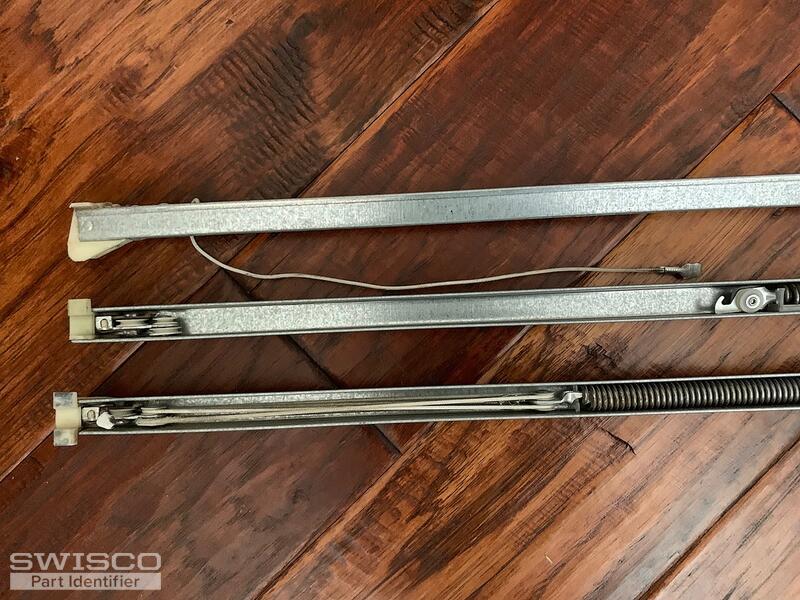

Thumbnail of the uploaded file named 1.jpg

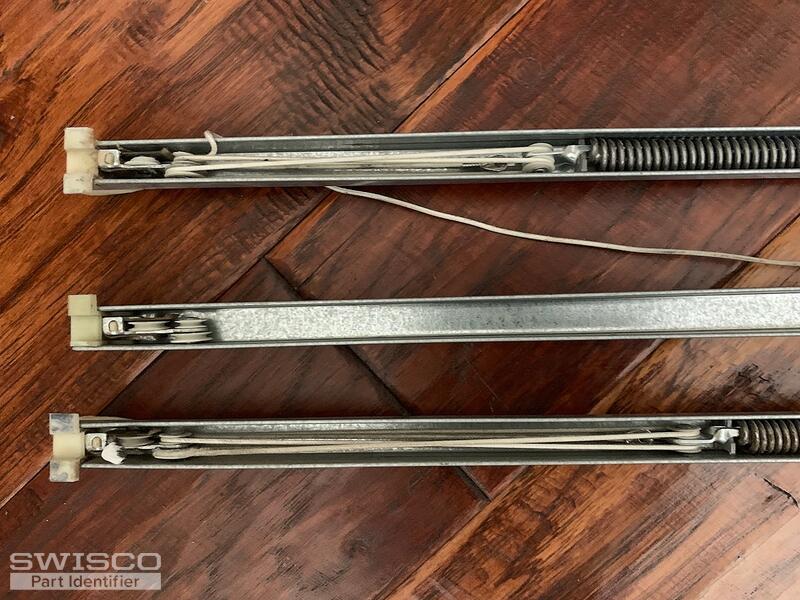

Thumbnail of the uploaded file named 2.jpg

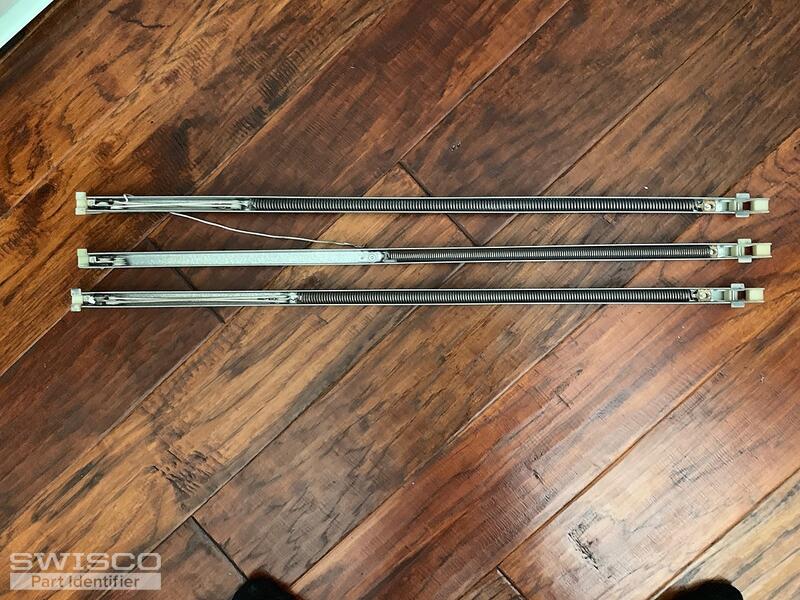

Thumbnail of the uploaded file named 3.jpg

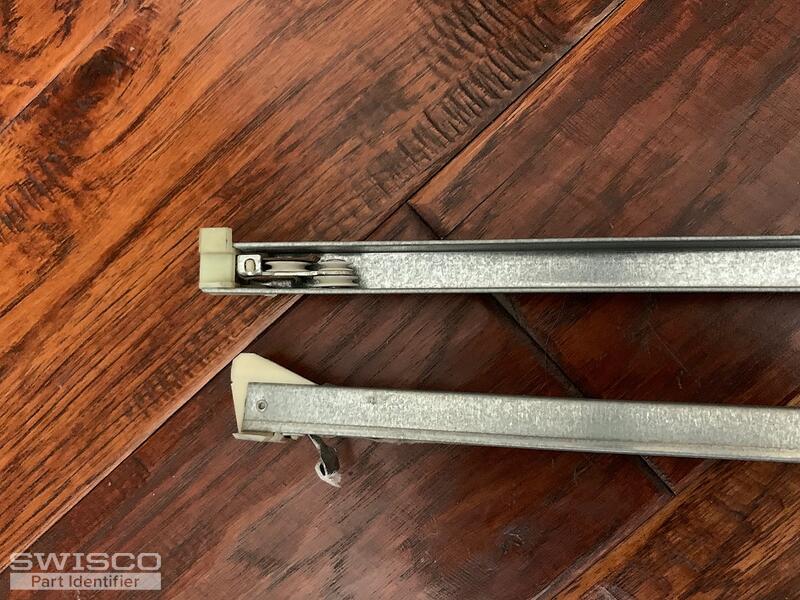

Thumbnail of the uploaded file named 4.jpg
Profile picture of Casey
Casey from SWISCO responded:

With this combination of attachments, you could have either a S380-27 or S385-27 channel balance. You need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a 2650 spring strength option for your balance.

Thank you and let us know if you have any other questions or concerns.


Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
