Need Jalousie window crank

A home owner from Roselle Illinois says:
Dear Experts,
I'm looking for a jalousie window crank. the main part is 5 1/4. its a right hand crank with a 2 1/4 offset link arm. I'd appreciate any help or suggestions. thanks.
Profile picture of Casey
Casey from SWISCO responded:

Hello,

We'd be happy to help you find a good replacement window crank. We'll need a picture of your operator with your window open so that we can see the arm attached to the mobile part of your window. Thank you!


A quick learner from Roselle Illinois says:

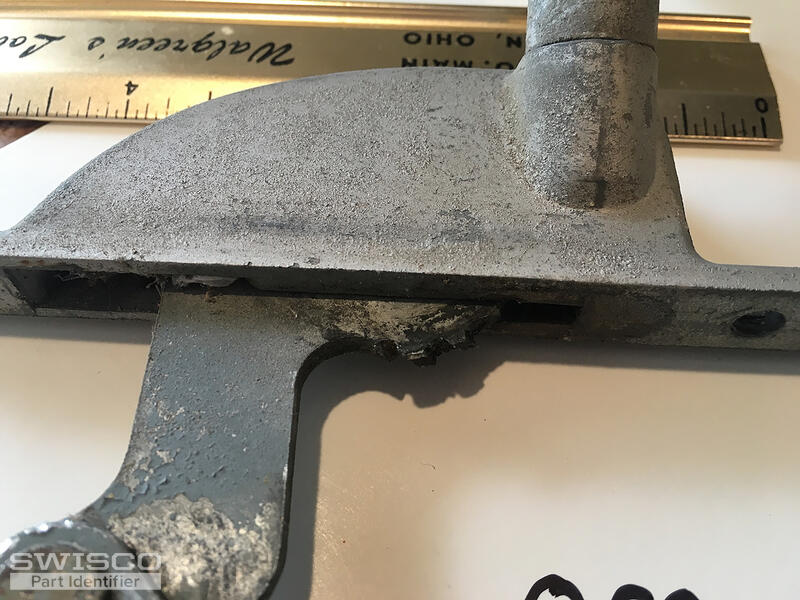

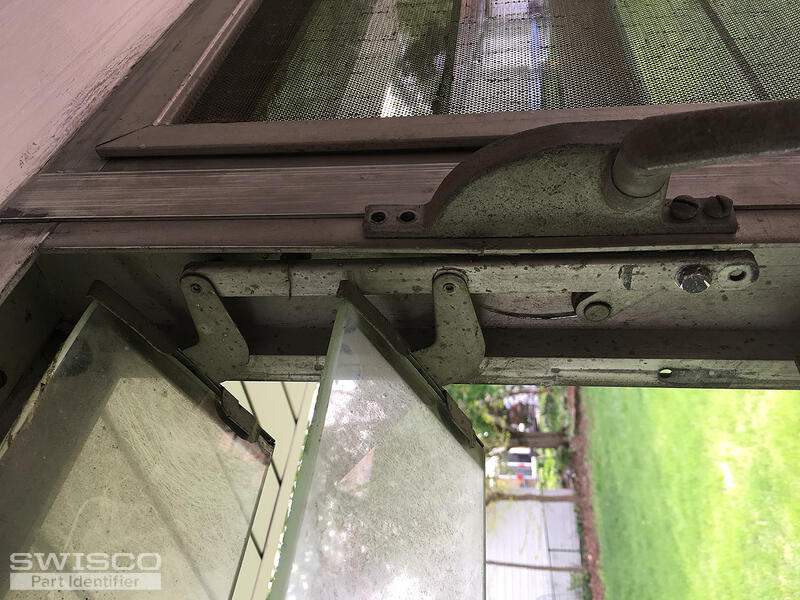

Thank you, here's the crank in question
Thumbnail of the uploaded file named 2018-05-13 16.17.38.jpg
Thumbnail of the uploaded file named 2018-05-13 16.17.43.jpg
Thumbnail of the uploaded file named 2018-05-13 16.17.49.jpg
Thumbnail of the uploaded file named 2018-05-13 16.17.56.jpg
Thumbnail of the uploaded file named 2018-05-13 16.21.46.jpg
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:

Take a look at the 39-165K jalousie kit with a break-off link arm. This might be your best bet to repair your window, as long as the off-set in your operator isn't needed.

You could also remove the offset arm on your existing operator and attach it to the new operator, if you do need to have that offset. You'd use a 3/32" drill bit to take out the old rivet, replacing it with a 62-014.

39-165K Jalousie operator replacement kit
39-165K Jalousie operator replacement kit
