jalousie window crank

Quick Learner from Clearwater, FL

Nov 24, 2020 12:34 pm

looking for a replacement jalousie window crank. the house was built in 1978 and I would assume the windows are original to the house.

2 user uploaded images

12 Replies

Bob from SWISCO

Nov 30, 2020 12:28 pm

We might be able to help, but I need a little more information. Can you remove this operator from the window and show me a clear picture from the rear? I want to see the hole pattern on those top and bottom tabs. A side view of its entire link arm removed from the window would also be most helpful. From there I'll do my best to ID what you need.

Quick Learner from Clearwater, FL

Dec 3, 2020 11:26 am

Thanks Bob. Just now saw your response. I should be able to remove the crank over the weekend and send you the requested photos.

Quick Learner from Clearwater, FL

Dec 6, 2020 10:48 am

Bob,

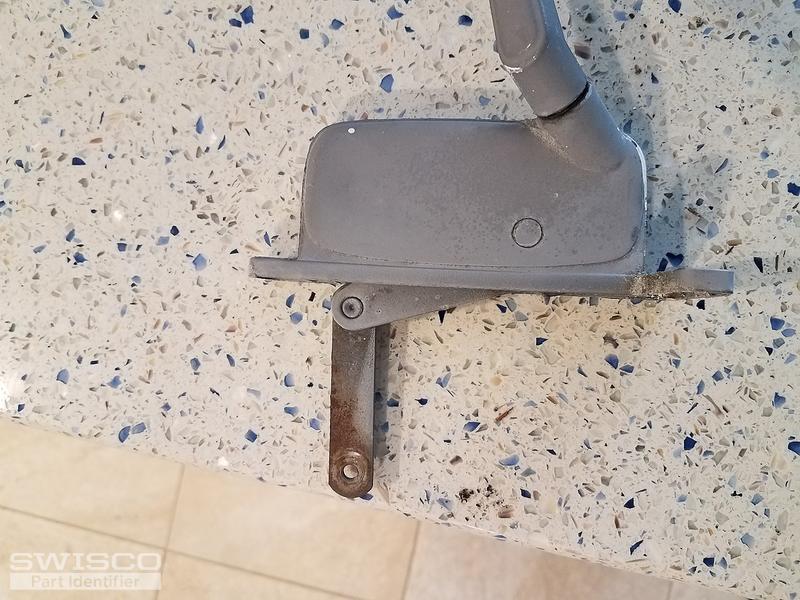

Attached find the requested photos

Quick Learner from Clearwater, FL

Dec 6, 2020 10:48 am

Bob,
Attached find the requested photos

4 user uploaded images

Bob from SWISCO

Dec 7, 2020 9:16 am

Thanks for getting back to me. See our 39-025. Look it over and see if you think this could work for you.

Quick Learner from Clearwater, FL

Dec 9, 2020 9:26 pm

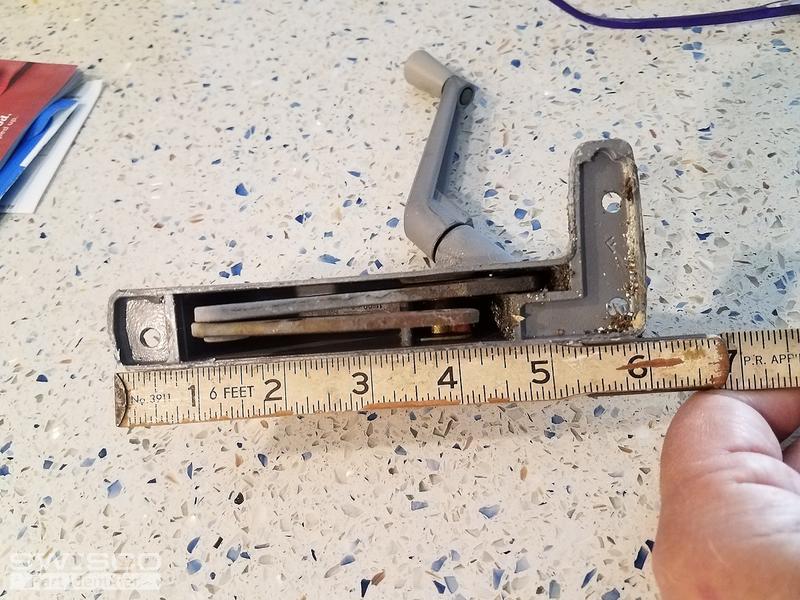

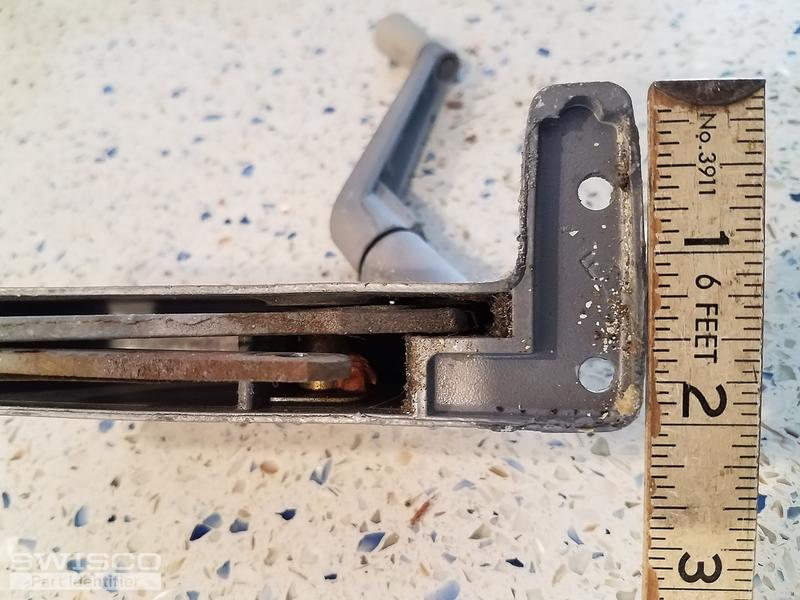

Is the top hole centered in the housing or offset? mine is offset - see first two photos.

Bob from SWISCO

Dec 10, 2020 1:54 pm

The top hole is slightly offset, but to the right. Also see our 39-061, which might be a closer match. Just make sure the hole at the end of the link arm is indeed correct as well.

Quick Learner from Clearwater, FL

Dec 11, 2020 12:47 pm

Thanks Bob. I check that measurement.

Quick Learner from Clearwater, FL

Dec 13, 2020 11:02 am

thanks for your help. I will give the 39-061 crank a try.

Quick Learner from Clearwater, FL

Dec 20, 2020 2:49 pm

Thanks again for your help. The crank was a perfect match. I am thinking of ordering a couple more since these type of windows are throughout the house. What is the model number for the left hand side?

Bob from SWISCO

Dec 21, 2020 10:33 am

I'm happy to hear that the 39-061 worked out for you! The opposite-handed version of this operator would be the 39-060. Thanks for posting!
