jalousie window crank operator (porch window)

Handy Person from Boca Raton FL

Apr 13, 2020 12:28 pm

vertical height, edge-to-edge, is 6"
vertical distance between mounting holes is 5.5"
horizontal distance between bottom mounting holes is about 1.05"

Entire crank operator shown in photo needs to be replaced (not just handle)

5 user uploaded images

9 Replies

Tom from SWISCO

Apr 15, 2020 10:27 am

We have several operators that are similar to this, but in order to narrow it down further, we will need you to remove this operator from the window and show us a clear photo of the link arm. Please make sure the link arm has no obstruction so that we can see it clearly. It will need to be removed from the window linkage.

Handy Person from Boca Raton FL

Apr 19, 2020 2:36 pm

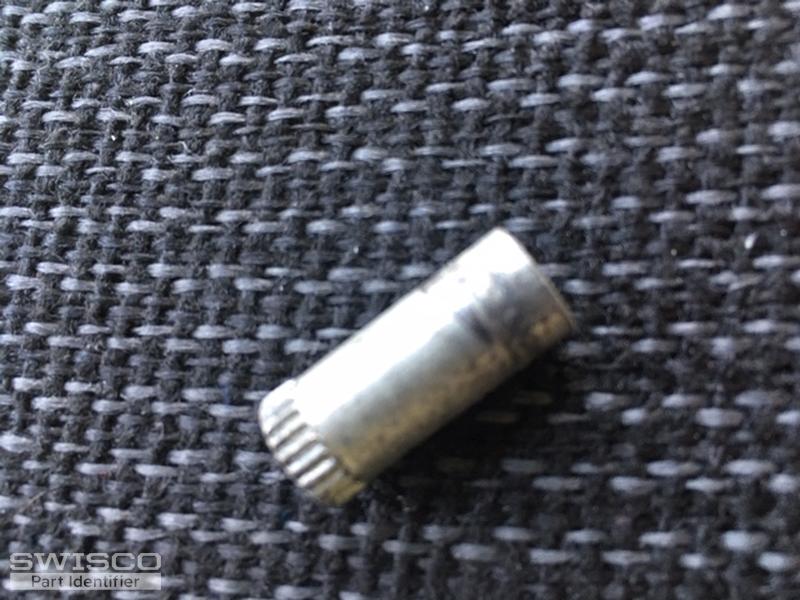

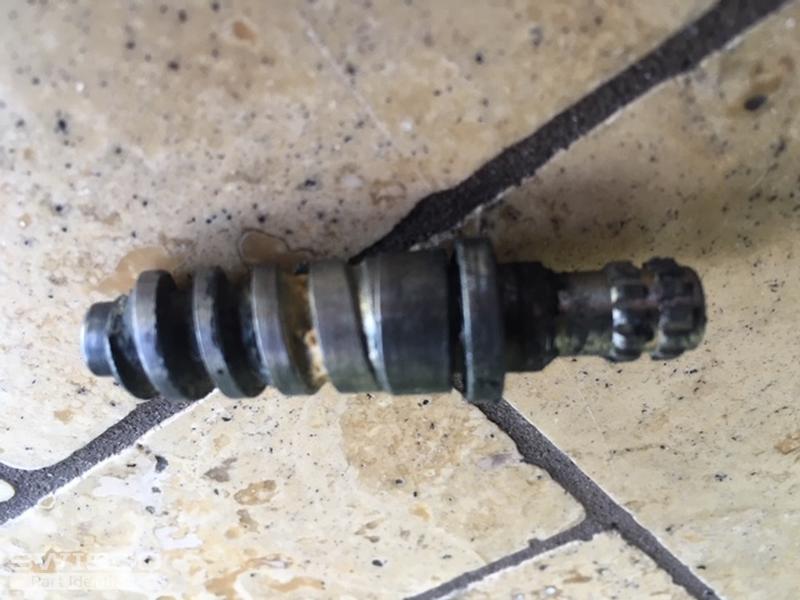

Part 1--jalousie window operator details, with link arm

5 user uploaded images

Handy Person from Boca Raton FL

Apr 19, 2020 2:44 pm

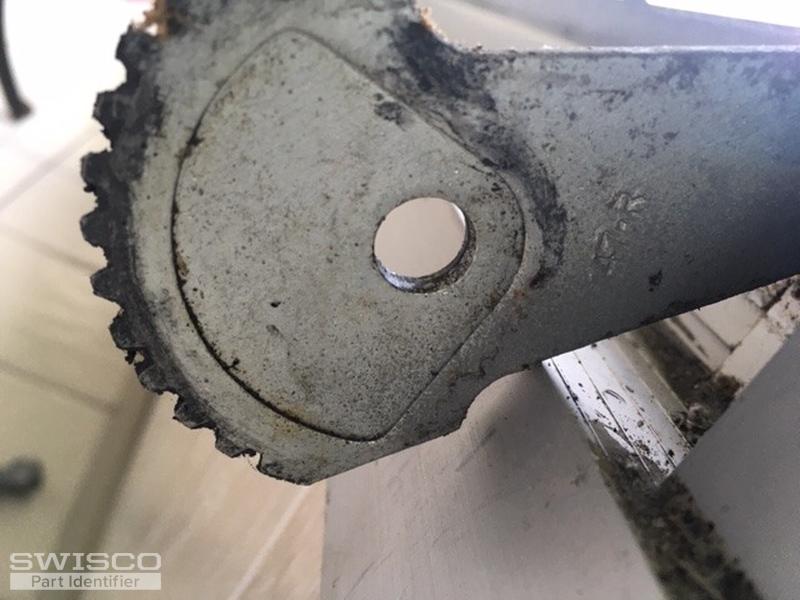

Part 2: drawings of parts and more photos

4 user uploaded images

Tom from SWISCO

Apr 20, 2020 7:46 am

I'm afraid these photos don't tell me anything. You removed the operator from the gear arm itself, but I needed you to remove the link arm from the window. Your link arm is still obscured in these photos and I cannot determine what it is. Without seeing it, we will not be able to make a recommendation.

Handy Person from Boca Raton FL

Apr 22, 2020 11:38 am

Photo of linkage included, also a drawing with attempt at measurements.

Tom from SWISCO

Apr 22, 2020 12:40 pm

Thank you! With this information in mind, I believe that the best match in our inventory is the 39-061. Look it over and see if you agree.

Handy Person from Boca Raton FL

Apr 27, 2020 4:22 pm

Thank you! I have received the 39-061 operator that I purchased from you and have just installed it. It was a perfect match. Even the bolt threads were identical. You have been extremely helpful!

Tom from SWISCO

Apr 28, 2020 7:39 am

I'm very happy to hear it! Thanks again for reaching out to us and please let me know if you ever needed anything else.
