jordan window 29" channel balancer

Home Owner from temple, texas

Sep 1, 2019 2:00 am

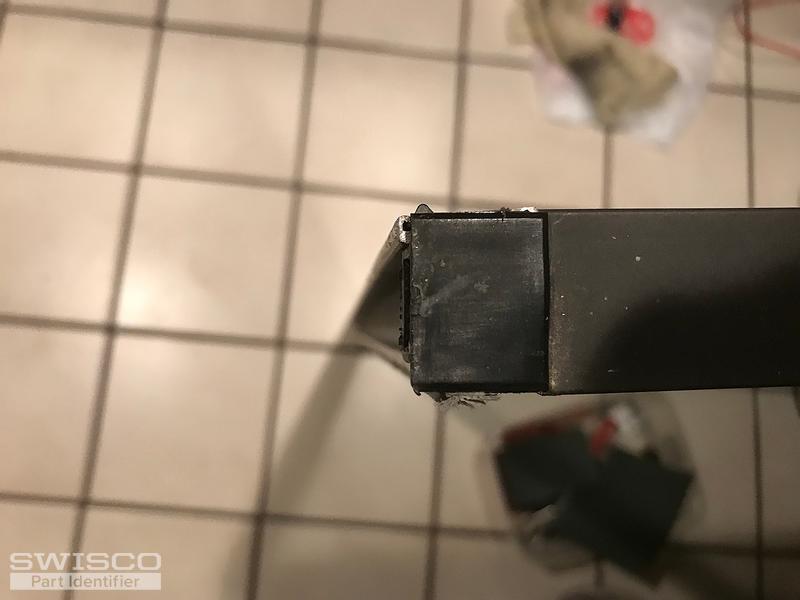

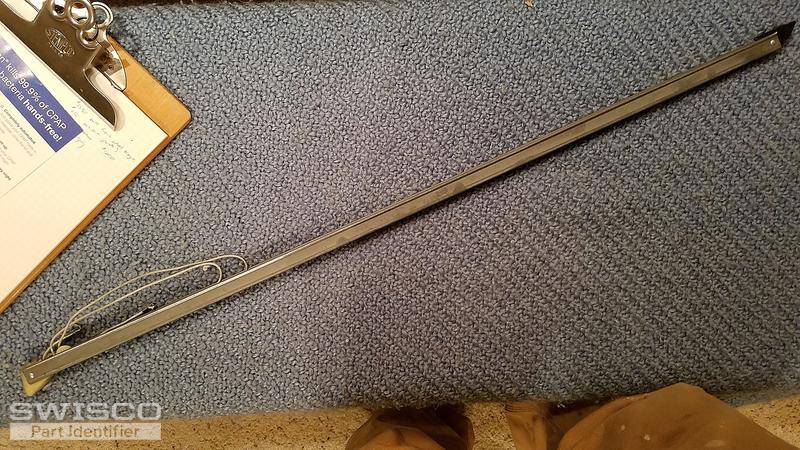

aluminum lower sash. 23 lbs. need 8 29" balancers. There are no markings anywhere on the window or balancer. I also need the stoppers that fit in the top of the sash. It's IMG_0156 held in with 2 screws

5 user uploaded images

3 Replies

Home Owner from temple, texas

Sep 1, 2019 6:16 pm

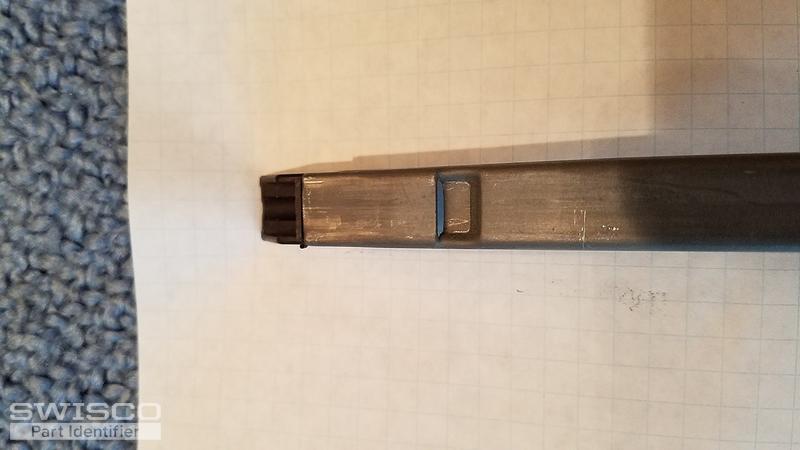

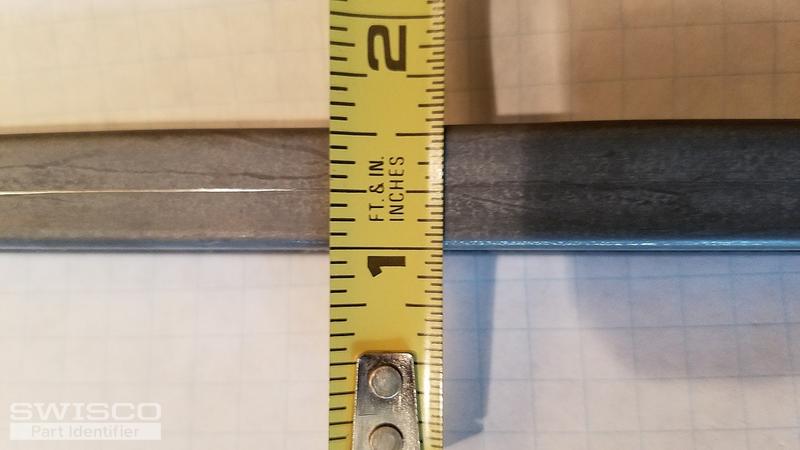

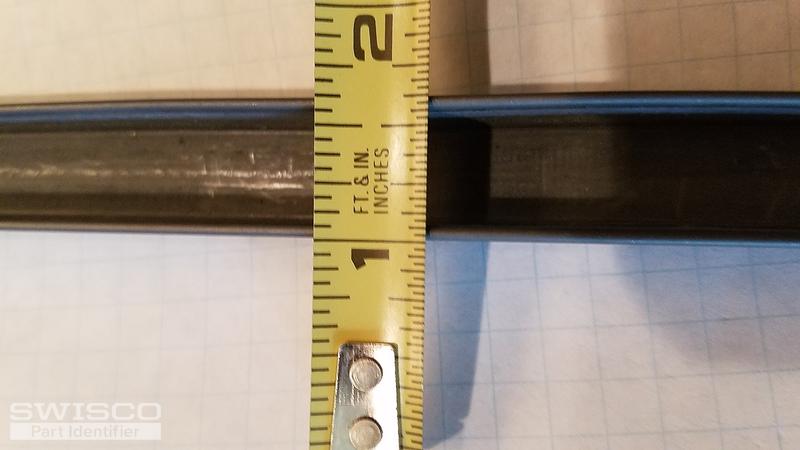

I forgot to show the widths. Here are some more pictures.

Thanks!

3 user uploaded images

Paul from SWISCO

Sep 6, 2019 1:42 pm

Looks like you need an S390-29 channel balance. This comes with a 19-002 top and 15-001 bottom nylon fitting, so as long as those match then you should be good to go. I'm not sure about the 18-009 but look it over and let me know if you agree.
