keyed lock for right hand patio slider

A quick learner from NY says:
Hello,
I have an Anderson sliding door, but do not know the model# or series.
I am looking to use the door as an entry door and need an external lock.

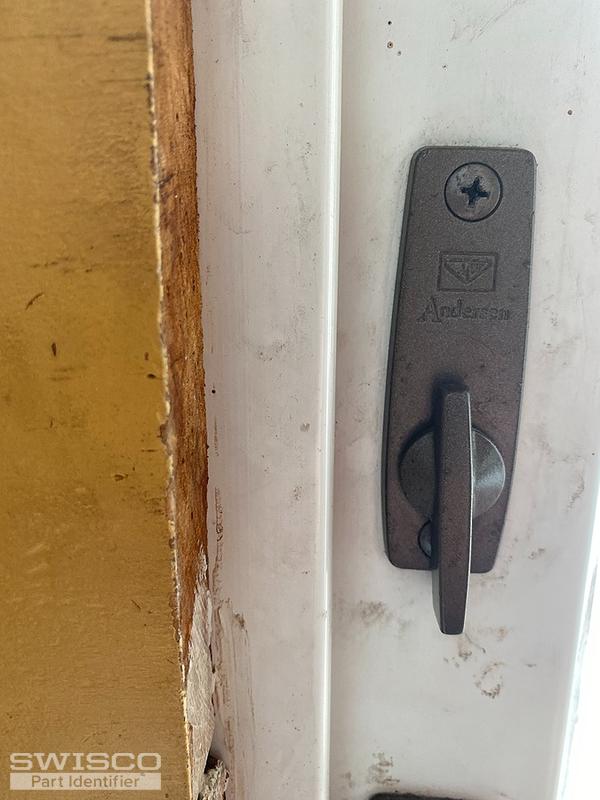

As you can see by the images the catch is separate from the handle.

Your model 82-317 appears to be the part, but I want to make sure that it will fit the width of my door. I read one review that stated it was not long enough for the door.
Thumbnail of the uploaded file named image_67129857.JPG
Thumbnail of the uploaded file named image_67200513.JPG
Thumbnail of the uploaded file named image_167822849.JPG
Thumbnail of the uploaded file named image_67162113.JPG
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:

Looking at your door from the outside it does appear it is a RH door. So you would use the 82-317 key lock along with the 82-043 thumb turn. The problem with the customer from the other discussion was the thickness of their door. They had an older style door with a door thickness of 1-7/8". They also had the older style Brass handle, which prevented them from using our replacement Andersen hardware.

Your door thickness is 1-3/4", so you could use the 88-013 and 88-014 with the 33-109B. With that being said, the 88-019 and 88-020 handles should be fine with your door. The appropriate mounting screws are included with the handles and should fit fine.
