lat nylon roller and housing

Start a new Discussion

Home Owner from Australia

Jan 15, 2019 9:21 am

Hi,

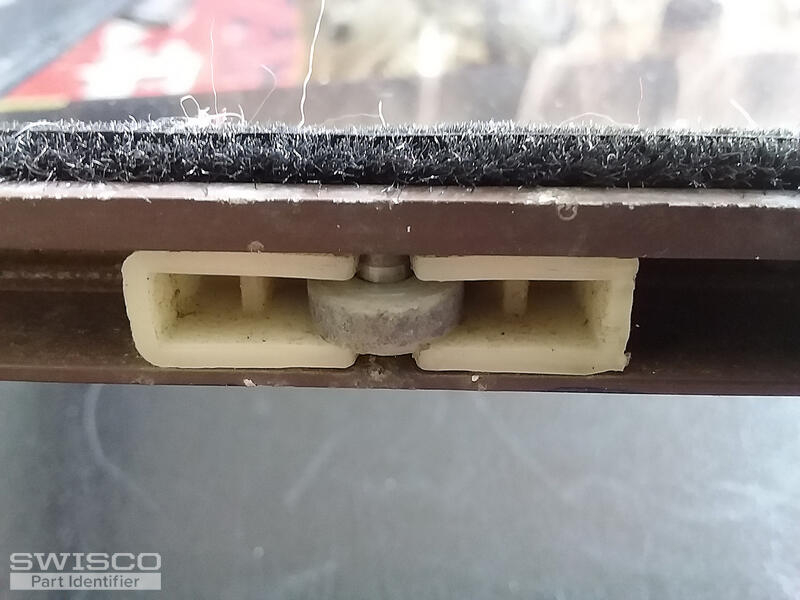

Do you have a stock replacement for the item pictured in the attached file.

If so, are you able to sell and mail 20 items to Australia.

Cheers,

Ivan J.

1 user uploaded image

9 Replies

Paul from SWISCO

Jan 17, 2019 9:34 am

Hello Ivan,

We couldn't quite read the dimensions of the nylon housing. We'll need the length, height and width. In the meantime, see if you can use 87-161 as a replacement for your window sash. Thank you.

Home Owner from Australia

Jan 18, 2019 5:45 am

Thanks Paul,

I've had a look at your suggested PN. 87-161 and at 9/32" it appears to be too narrow. The existing ones are approx 11/32 wide and appear to have been placed into the sliding window bottom frame channel and the channel then deformed to hold the roller assemblies in place.

I'll remove another roller assembly over the weekend and send you a better photo and the requested measurements in fractions of an inch.

Cheers Ivan.

Paul from SWISCO

Jan 18, 2019 10:26 am

Sounds like a plan. You let us know whenever you can and we'll do our best!

Home Owner from Australia

Jan 23, 2019 5:31 am

Hello Paul,

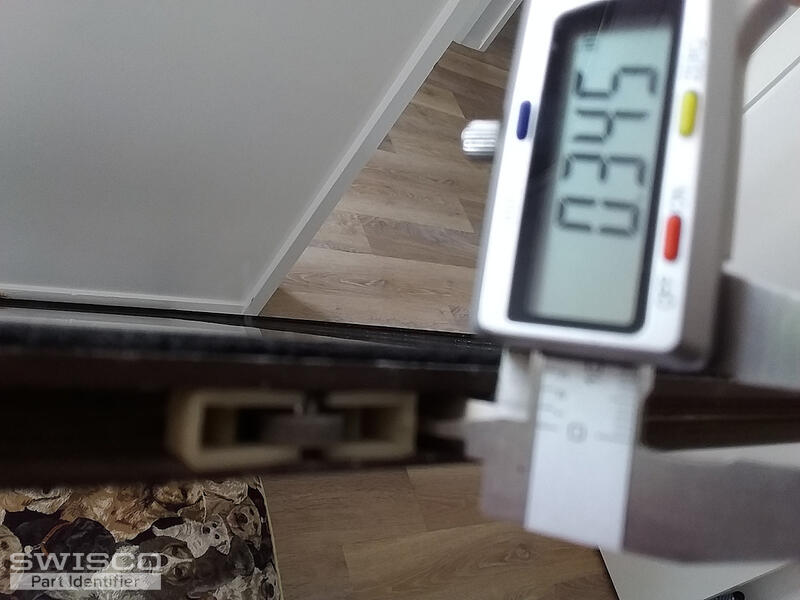

I hope the attached photos are of satisfactory quality for you to suggest a replacement roller assembly.
Cheers Ivan

4 user uploaded images

Home Owner from Australia

Jan 23, 2019 6:19 am

Hi Paul, A further thought.. I have reviewed the Swissco online portal for all listed 7/16" flat rollers. If I file the lugs off the top of the housing and remove the panhandle, your PN 87-163 assembly would seem the closest in width and height to what I need. Question - is the overall height between the housing upper lugs to the wheel bottom of PN 87-163 around 15/32". Cheers Ivan

Paul from SWISCO

Jan 24, 2019 12:32 pm

That's not a bad idea. The height of the nylon housing, minus the top lugs, to the bottom of the wheel is 15/32". Could you get that to work?

Home Owner from Australia

Jan 24, 2019 3:38 pm

Thanks for your help Paul, to use your words, that's the plan. As these need to be shipped "Down-under", I'll phone your sales desk and order 20. Cheers Ivan

Paul from SWISCO

Jan 25, 2019 1:05 pm

Excellent. If there is anything else we help you with in the future, do not hesitate to ask us.
