less than 1" shoe

A handy person from Florida says:
May 19, 2023

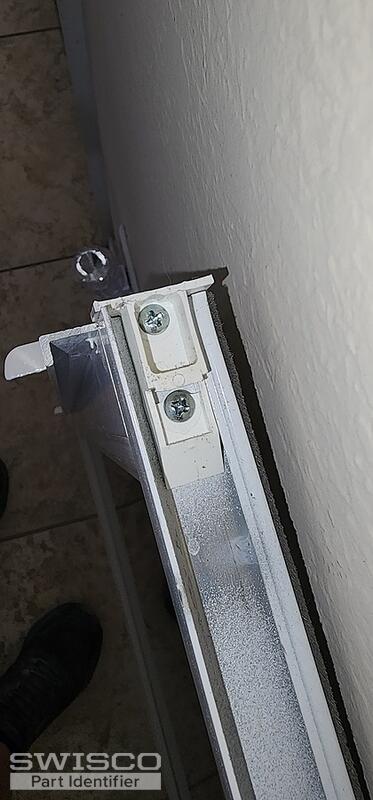

I have balances with wings on the top and wings on the bottom. But my shoe is less than one inch deep. A swisco rep says I can get that as a custom shoe. I need 30 of these, 29" long channels, my sash weighs 14.2 pounds. They're all the same size windows.

And I need the top sash guide too.
Thumbnail of the uploaded file named 20230518_151456.jpg
Thumbnail of the uploaded file named 20230518_151525 (1).jpg
Thumbnail of the uploaded file named 20230518_151441.jpg
Thumbnail of the uploaded file named HRPM 1 ts guide.jpg
Profile picture of Casey
Casey from SWISCO responded:
May 22, 2023

Hello,

We do offer the 15-029 bottom fitting, which we can supply as a custom order with a 19-005 winged top but I would recommend confirming that the 7/8" depth below matches yours since they will not be able to be returned for a refund.

We also offer the 18-115 top sash guide that resembles your part. Take a look and compare the dimensions below to yours. Thank you!

Dimensions for 15-029
Dimensions for 15-029

Alternate image for 18-115
Alternate image for 18-115

Alternate view of 18-115
Alternate view of 18-115

5/8" Top Sash Guide
5/8" Top Sash Guide
18-115
$1.89
Winged Channel Balance Shoe, 7/8" Depth
Winged Channel Balance Shoe, 7/8" Depth
15-029
$0.82
Channel Balance Top, Winged
Channel Balance Top, Winged
19-005
$0.74
29" Series 380 Channel Balance
29" Series 380 Channel Balance
S380-29
$11.10
