lock handle tab - Anderson 400

Quick Learner from NY New York
May 6, 2021 8:23 am
I have an Anderson 400 casement series window. My daughter pulled off the lock handle and I guess the small metal piece on the lock mechanism that fits into the lock handle tab was broken off and is now missing. I suspect the metal piece is somewhere in her room but appears to be lost. Picture of the metal piece I am referring to is attached. I don't know what the piece is called but it fits into the lock handle tab. Not sure if I am able to buy just that metal piece or do I need to replace the entire lock mechanism. The lock mechanism is working fine - just the metal piece is missing. That metal piece might need to be welded on so I am not sure if it is easily replaceable or there is a substitute method to keep the lock handle on the lock mechanism. Thanks for your time.
1 user uploaded image
6 Replies

Emily from SWISCO
May 7, 2021 11:57 am


Hi there!
Take a look at our 39-291 and compare our dimensions to yours and see if they match up for what you need.

Quick Learner from NY New York
May 7, 2021 12:45 pm
I appreciate the quick response. That lock handle does not match. My dimensions appear to be 1 2/10 and 2 8/10.

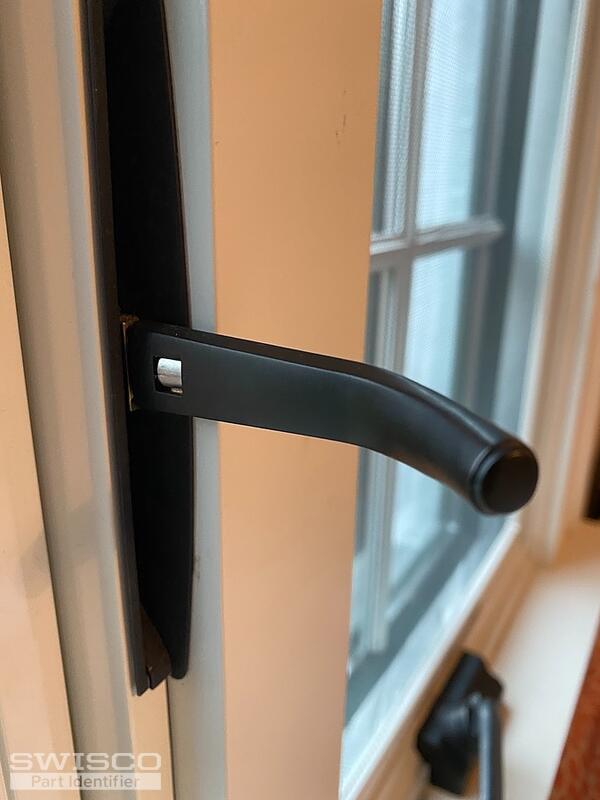

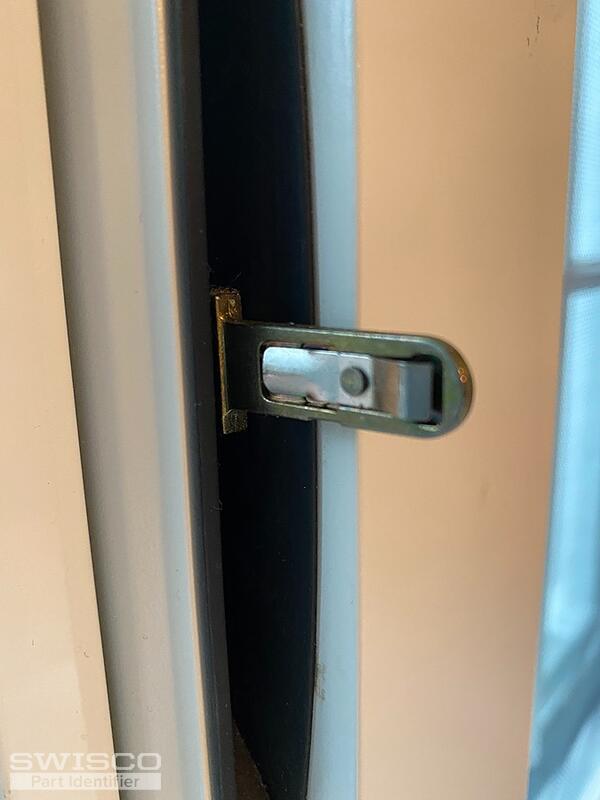

Also I do not need a new handle. I have the lock handle. I am looking to replace the small metal piece located on the lock mechanism The missing metal piece fits into the tab on the handle. See photo.
Also I do not need a new handle. I have the lock handle. I am looking to replace the small metal piece located on the lock mechanism The missing metal piece fits into the tab on the handle. See photo.
2 user uploaded images

Emily from SWISCO
May 11, 2021 10:00 am


Check out our 38-162 Andersen 400 Ps sash lock, could this be what you're looking for?

Quick Learner from NY New York
May 12, 2021 10:45 am
Yes! That is the part. Thank you.

Emily from SWISCO
May 12, 2021 2:05 pm


No problem! I'm glad I could help. If you have any further questions just let us know, we'll be here to help.
