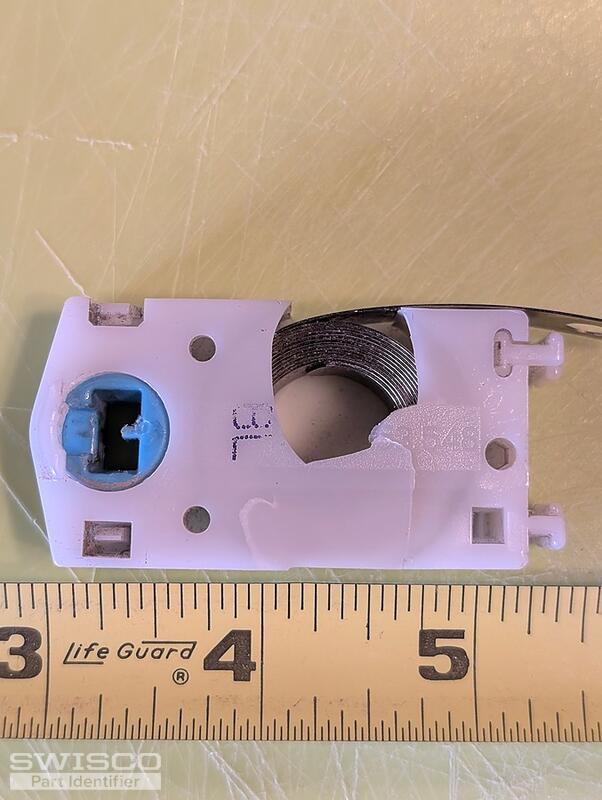

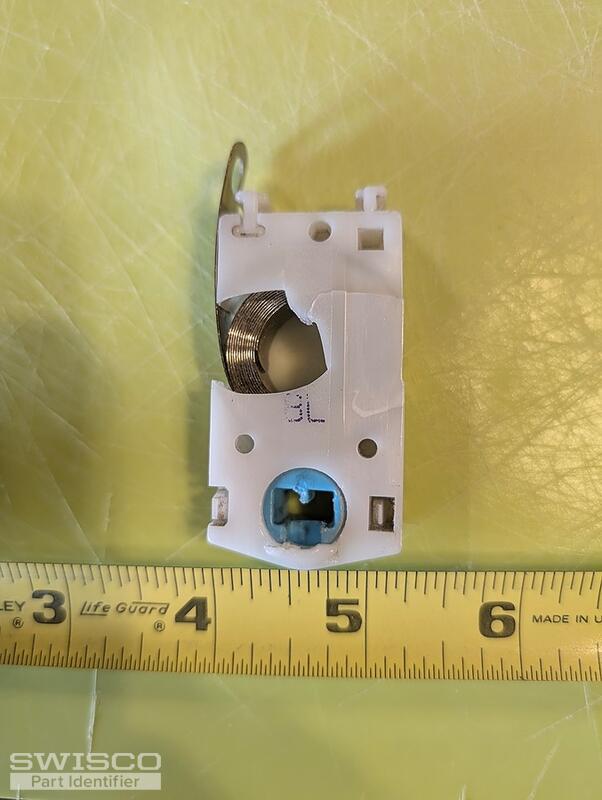

Hi,,, can you supply a part number for these so i order correctly ?? i need both sides,, ... I had purchased to coils before and they seem to be fine but both plastic shoes are now broke.... Thanks much ! Greg...
lock shoe assy....
Home Owner from Palmyra, NJ
Feb 7, 2025 2:07 pm
5 user uploaded images
7 Replies
Casey from SWISCO
Feb 7, 2025 3:54 pm
Hello,
Your photo resembles the 15-087 housing pivot, which uses the Series 180 coil springs you purchased. Take a look and compare the specifications below and the accessories related on our product pages to yours. We'll also include a diagram showing the configuration of this assembly. Thanks for posting!
Detail of 15-087
Series 180 coil balance diagram
Home Owner from Palmyra, NJ
Feb 11, 2025 7:39 pm
Hi,, I take it there isn't a right/ left side , that they're interchangeable ????
Casey from SWISCO
Feb 12, 2025 7:58 am
Correct, you would use the same hardware for the left and right sides of the window.
Home Owner from Palmyra, NJ
Feb 12, 2025 12:35 pm
Thanks much ???
Casey from SWISCO
Feb 12, 2025 1:02 pm
We're happy to help. Just let us know if you need anything else.
Home Owner from Palmyra, NJ
Feb 12, 2025 2:12 pm
Thank you,, appreciate the help ??
