looking for a channel balance/non tilt window.

Home Owner from california

Jul 1, 2021 9:22 pm

Greetings,
I am looking for the channel balance replacement for our window. I was able to get as far as...
Channel Balances > Non-Tilt Window > 1/2" Width
then the next screen I was not sure what to pick.
the silver metal length is 33" exactly. (not including plastic ends).
Pictures included.
Can you please let me know what part to order for our replacement parts.

Thank you,
Valerie

4 Replies

Casey from SWISCO

Jul 6, 2021 3:36 pm

Hello,

We'd be happy to help but the bottom attachment is only partially visible in your photo. If you could show us the rest of the fitting, as well as confirm if the stamp code on the metal channel reads 32 4, we can go from there. Thank you!

Home Owner from california

Jul 13, 2021 12:52 am

Greetings,

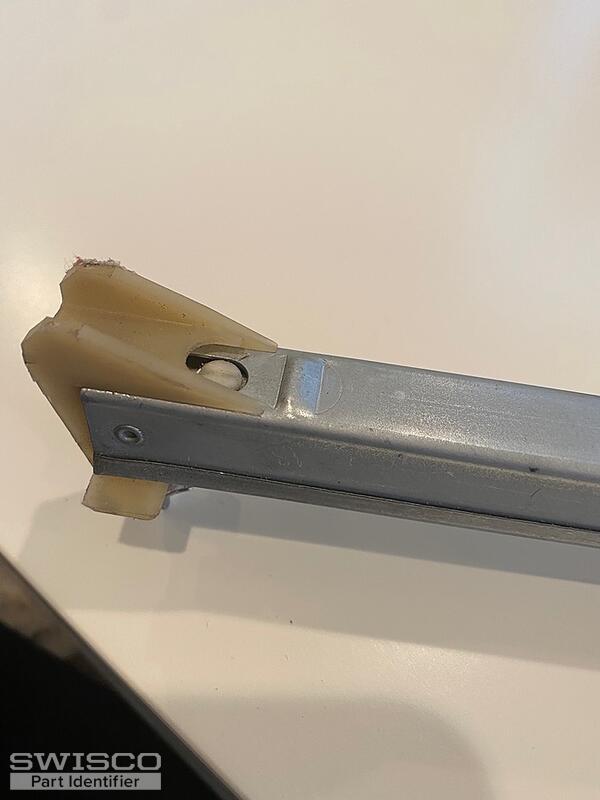

Please find the additional pictures attached to show you the ends as well as the print on the metal channel reads 32 4 BO CALDWELL.

I would like to find out the exact parts to order. I would be happy to discuss on the phone and place an order. My phone number is below.

Sincerely,

Valerie

4 user uploaded images

Casey from SWISCO

Jul 13, 2021 8:21 am

With this combination of attachments, you could have either an S380-33 or S385-33 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 3240 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
