looking for a part (window balance 26-3 IX CMC 11)

Question

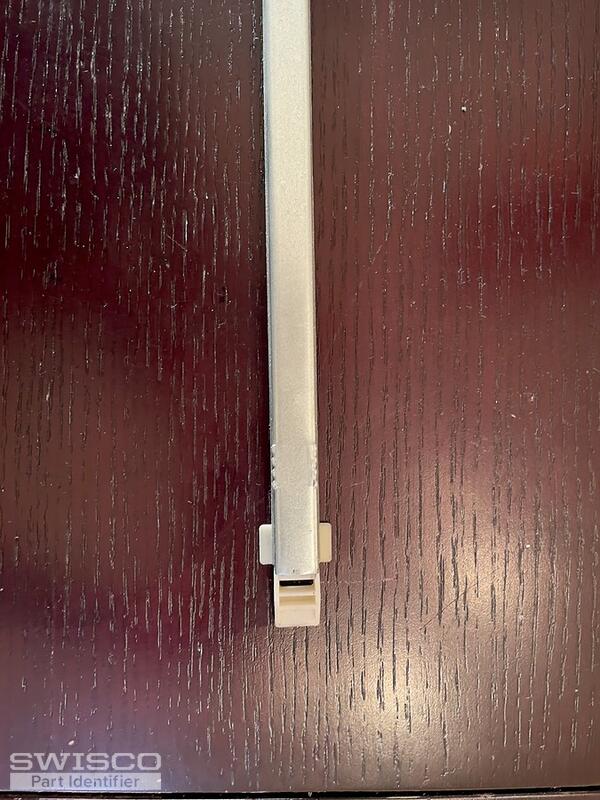

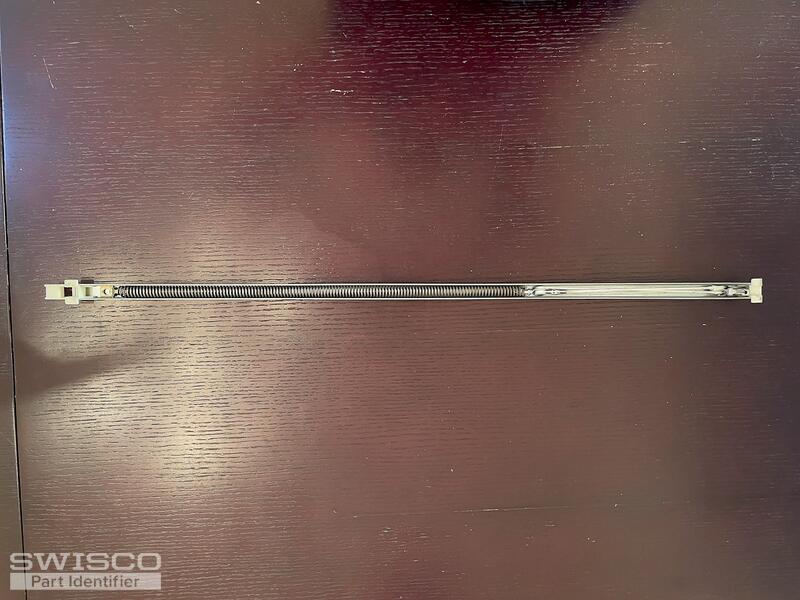

Hi I am looking to see if you guys have this window balance available. I attached 5 photos of the part that I need to replace.

Thank you

Lauren · Accepted Answer

Hello, thank you for posting,

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

The length of the metal channel excluding the nylon attachments should measure 27" long and you will need a 2630 stamp option. Please review and let us know if you have any additional questions.

Comparison of the S378, S380 and S385 balance shoes.
