looking for casement window crank

Contractor from 19605

Jul 5, 2023 11:47 am

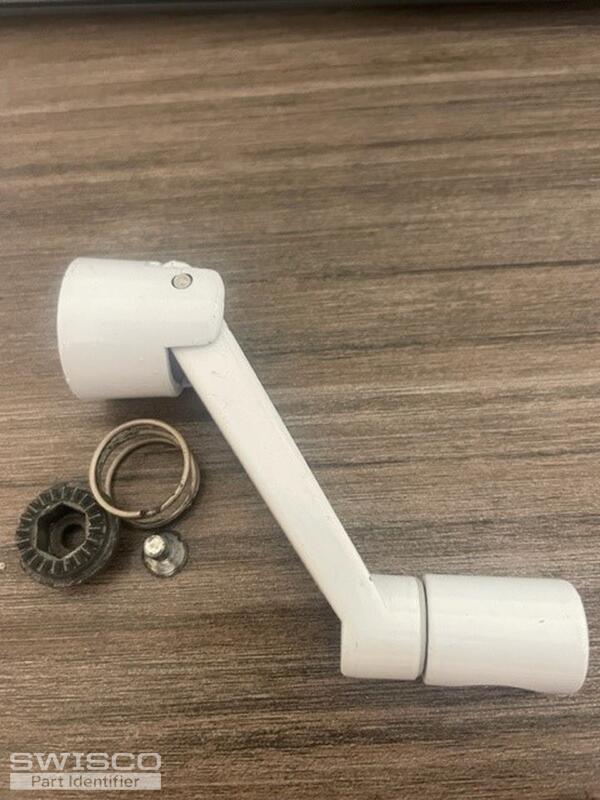

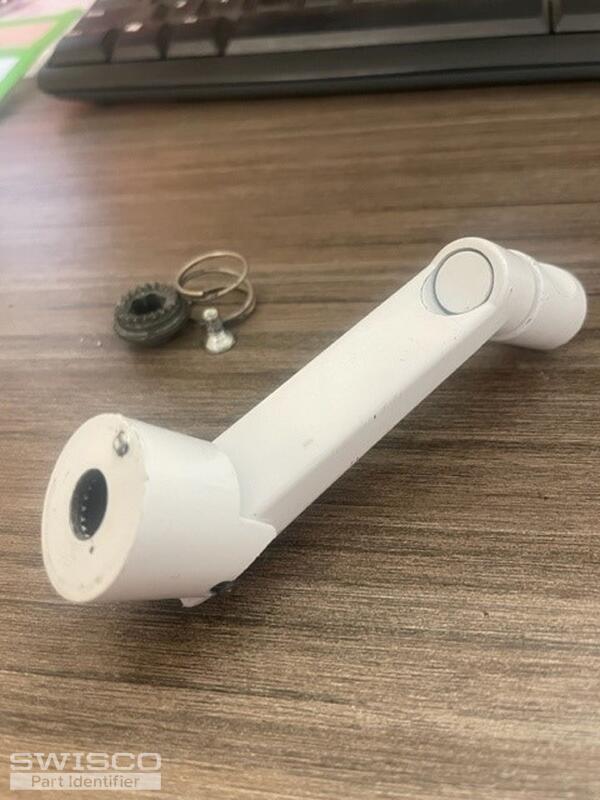

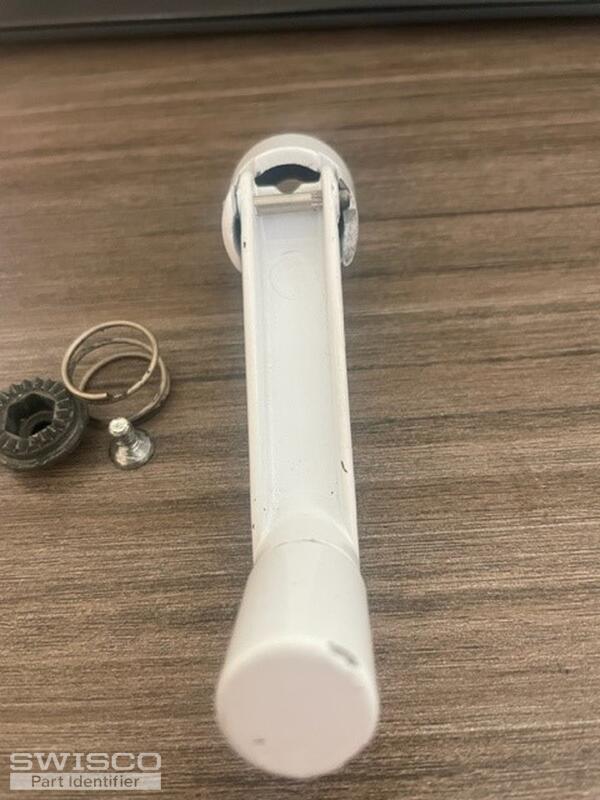

This crank is for a Rozzi window manufacture casement window ( Chelsea building products).

3 user uploaded images

5 Replies

+ Add a Comment

Lauren from SWISCO

Jul 6, 2023 10:07 am

EXPERT

Hello, thank you for posting,

To further review, are you able to show us the crank operator that this handle attaches onto? From there we can further review for a replacement option. Thank you!

Contractor from 19605

Jul 6, 2023 1:25 pm

I will contact the customer to see if can go over to get a picture.

Lauren from SWISCO

Jul 7, 2023 9:01 am

EXPERT

Thank you,

It appears that the handle has a hex gear bore. We do not have this exact style, but you may be able to use a style like the 39-230 or 39-224. These handles have a 5/16" hex gear. Seeing the operator base and spline will give us a better idea.

Contractor from 19605

Jul 17, 2023 7:37 am

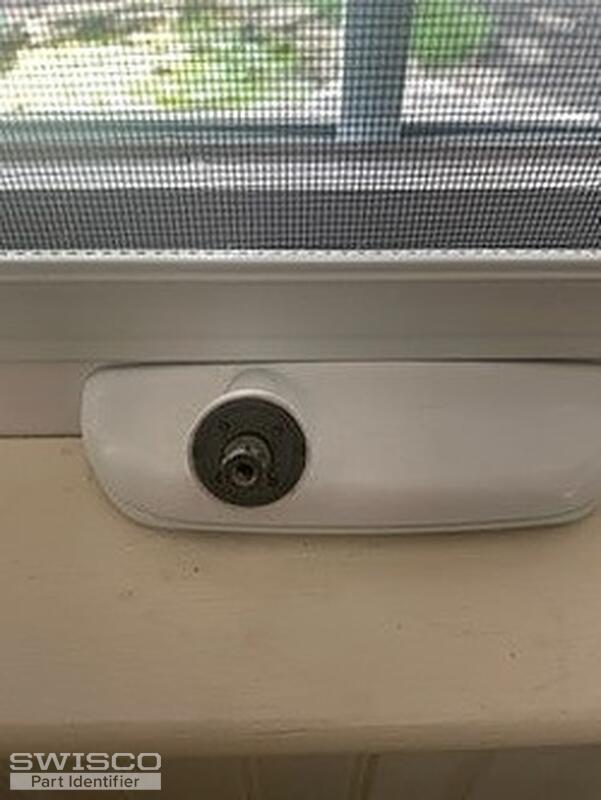

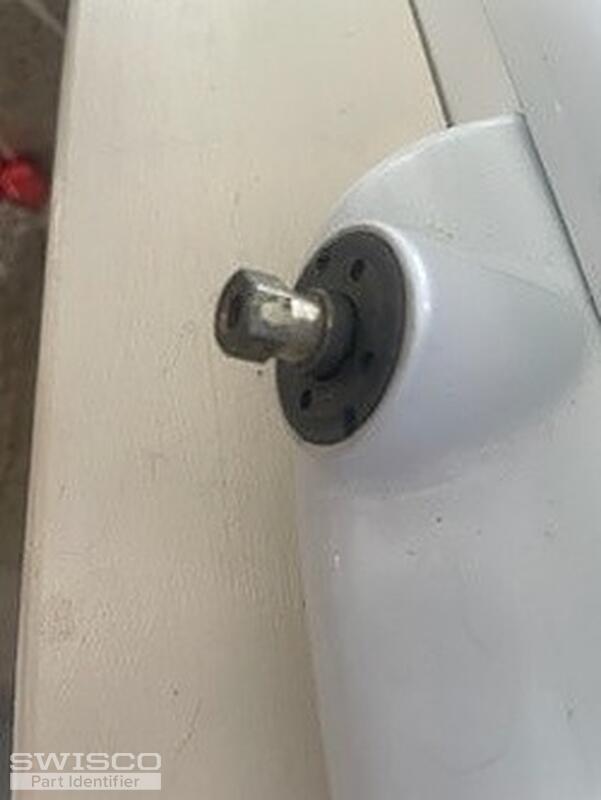

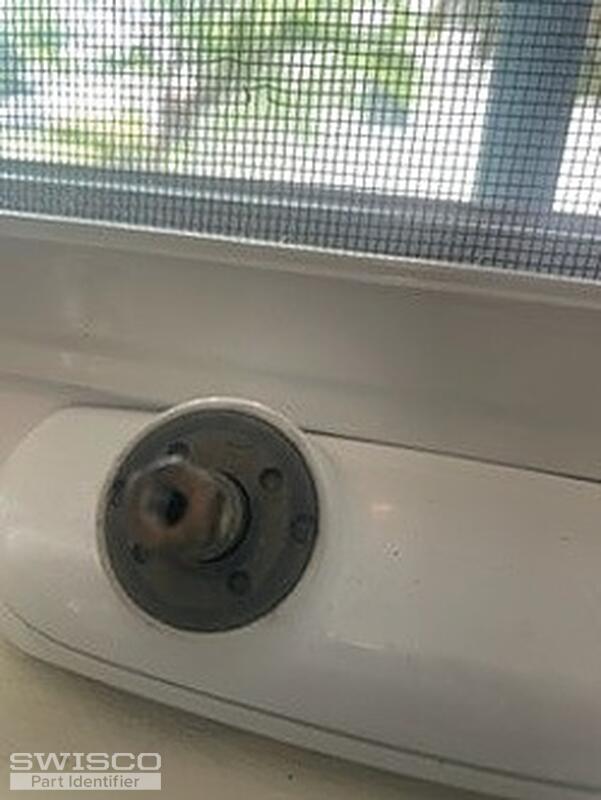

I was finally able to get the pictures you were looking for. Sorry it took so long.

3 user uploaded images

Lauren from SWISCO

Jul 17, 2023 8:09 am

EXPERT

No problem!

After review, the 39-230 or 39-224 handles will be the best fit for this style of operator as it should have a 5/16" hex that the handle fits onto. Review both for style preference and let us know if you have any additional questions.

+ Add a Comment

Products and resources found in this discussion

Fold-down Crank Handle, 5/16" Hex

39-224

$24.35

White Handle w/ Set Screw, 5/16" Hex

39-230

$16.45
