looking for replacement for discontinued Anderson split arm crank

Handy Person from Minneapolis, MN

Oct 26, 2016 9:50 pm

Hi,
I've gathered that this part is discontinued and that there is an adapter that matches the hole pattern, but I can't find a crank with the same arm configuration.

Thanks,
Matt

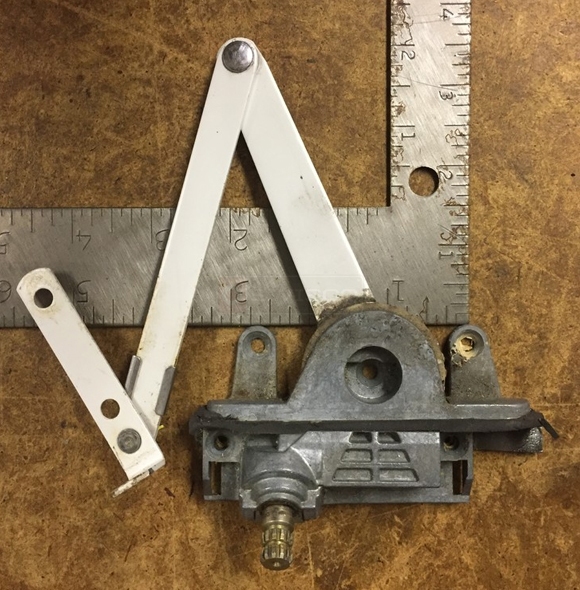

User submitted image of their window hardware.

2 Replies

Dave Sr. from SWISCO

Nov 1, 2016 10:04 am

I believe you could use 39-264 operator along with the 39-362 mounting plate to replace this older style window operator. I also see that you have the sash bracket still attached to the end of your operator arm. You will need to reuse that for the new operator.
