looking for replacement patio door handle and locking mechanism

Home Owner from Feasterville, PA

Apr 19, 2022 6:24 pm

Dear parts department,

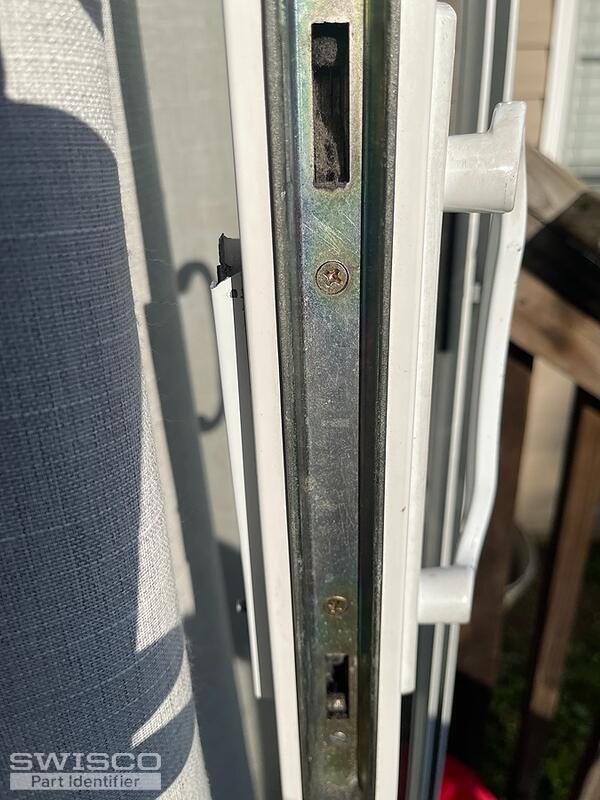

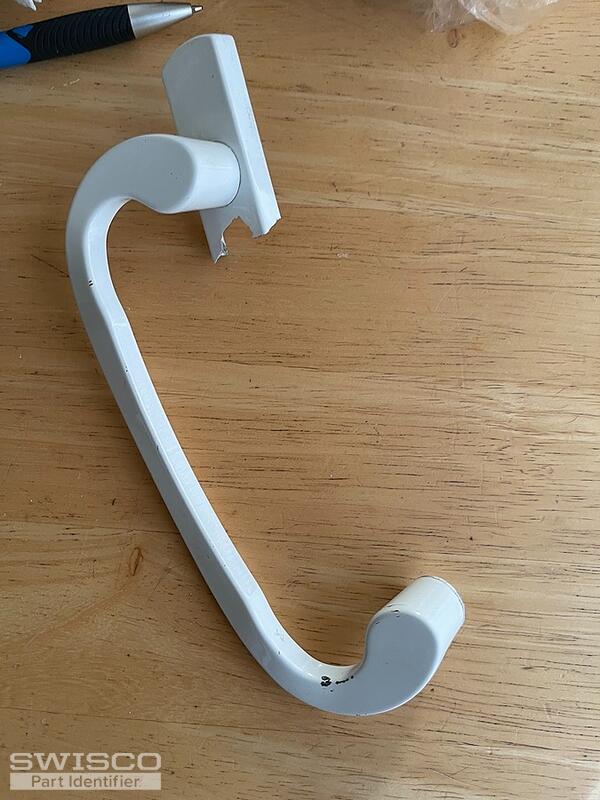

I am trying to replace a white broken patio door handle and locking mechanism:

the handle cover itself is 8" long
the handle is 6 3/4"
the screws are 3 5/8" on center

the door theickness is 1 5/8"
the lock mechanism is 1" wide and 12" long (screws are 12" on center).

5 user uploaded images

4 Replies

Tom from SWISCO

Apr 22, 2022 10:13 am

Hello! We don't sell this exact handle set, but our 82-030 will work just as well despite the difference in style. Look it over and see what you think.

Hole center dimensions for 82-030

Home Owner from Feasterville, PA

Apr 23, 2022 8:55 am

thank you, yes it seems like the right piece and size.

it is no longer in stock. do you know when they will be available and/or do you have another replacement alternative? It definitely has to be white colored.

Tom from SWISCO

Apr 25, 2022 10:11 am

We have two other handle sets that may work. The first is our 82-035, though this has a wood handle. You said you needed it to be white so I'm not sure if that would be a deal breaker for you. If not, it should work perfectly fine as a replacement.

The second is our 82-089. However, it's important to note that the thumb lever on this handle is fixed in the bottom position and cannot be adjusted. I cannot tell from your photos if your thumb lever has the same position, but if it's centered then this will not work.
