looking for replacement window hardware

Handy Person from Leicester New York
May 20, 2024 4:43 pm

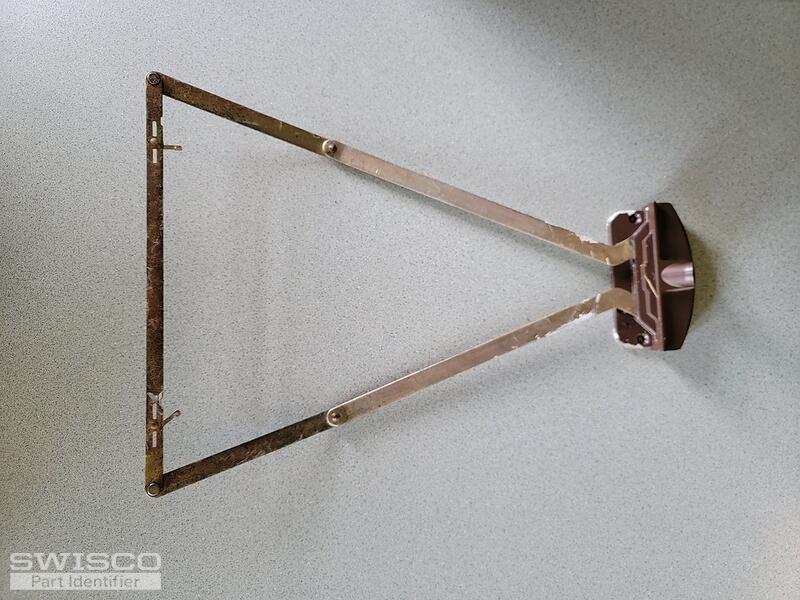

Hello my name is Doug. Looking for replacement hardware for my windows. These windows open from right to left and the other left to right. There is no name, number or identification on this hardware. Are you able to help?

20240520_163352 20240520_163355 20240520_163408 20240520_163346
4 user uploaded images
7 Replies
Tom
Tom from SWISCO
May 23, 2024 2:40 pm
SWISCO
EXPERT

Hello, Doug. Your operator here looks like a good match for our 39-015. I think this may be what you need, but look it over and see what you think.

There is one part of your description that has me a little confused, though; what you have here is an awning window operator, meaning the window should open bottom to top. These aren't supposed to open from left to right or vice versa. Can you clarify?

Handy Person from Leicester New York
May 24, 2024 9:33 am
Looks correct. and yes, the windows do infract open from left to right & vise versa. I will check measurements of the product when i get home as well as add pictures. Thank you!
Tom
Tom from SWISCO
May 24, 2024 11:18 am
SWISCO
EXPERT

That is odd. I wonder if someone installed an awning window sideways to have the same opening as a casement window.

Either way, hopefully the 39-015 matches up! Let me know if you had any other questions.

Handy Person from Leicester New York
May 29, 2024 3:44 pm

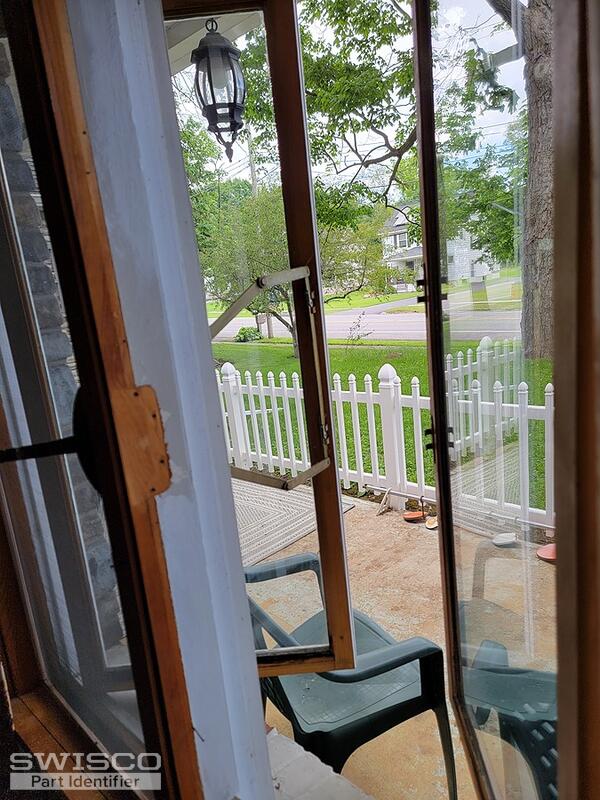

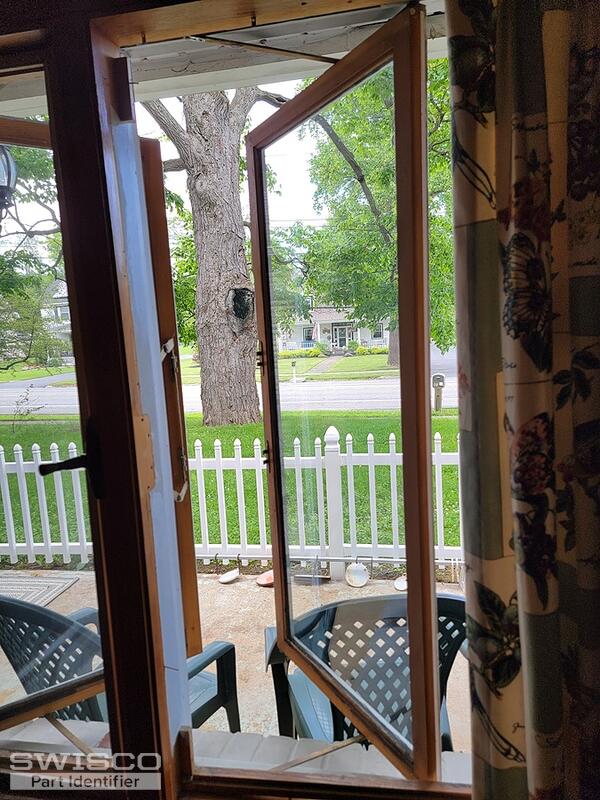

Hi Tom! Looks like that's exactly what my grandfather did! Anyhoo the measurements of the part number you had send me match up perfectly!
20240529_153635 20240529_153639
2 user uploaded images
Handy Person from Leicester New York
May 29, 2024 3:48 pm
What crank handle would work best with the product you shared with me?
Tom
Tom from SWISCO
May 30, 2024 9:50 am
SWISCO
EXPERT

Great! I'm glad to hear it's a match.

As for the handle, that would be either the 39-114L standard handle or the 39-205 folding handle, if you'd prefer that.

Handy Person from Leicester New York
Jun 5, 2024 3:15 pm
GREAT FIT! Exact replacement. GREAT customer support! Thanks Tom!
