louverd glass 12' x 34" 5 panes 5 units all left handed

Hello,

Thanks for posting! I am confident we can provide you with a replacement recommendation for this awning window operator. I'll just need to see a photo of the top hole to determine the correct replacement.

Please feel free to reach out with any other questions you might have in the meantime.

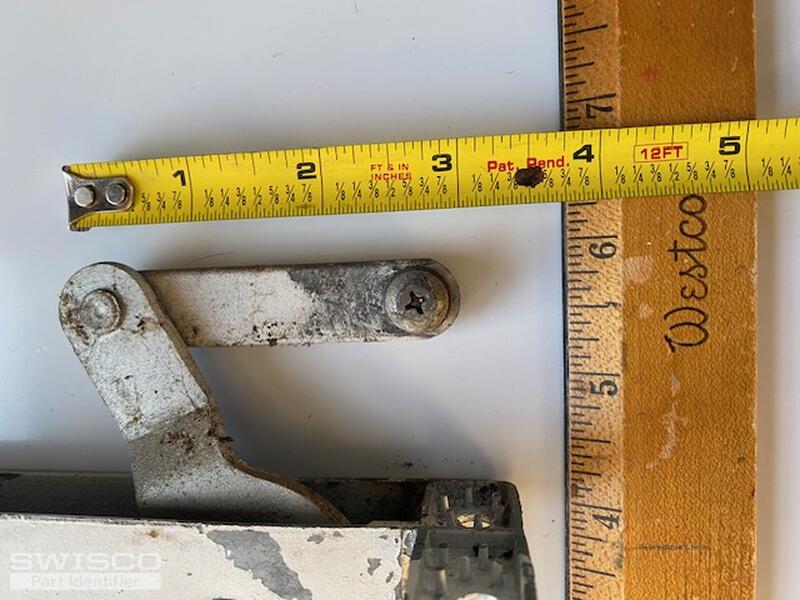

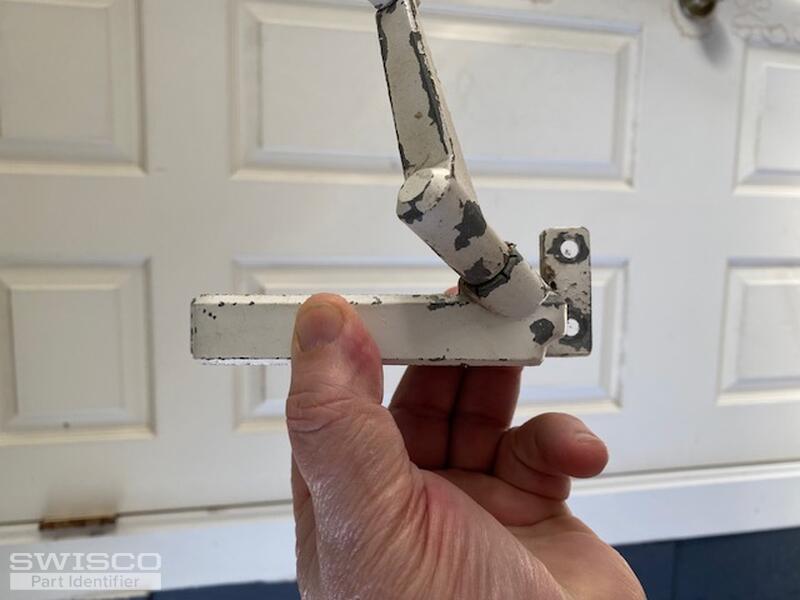

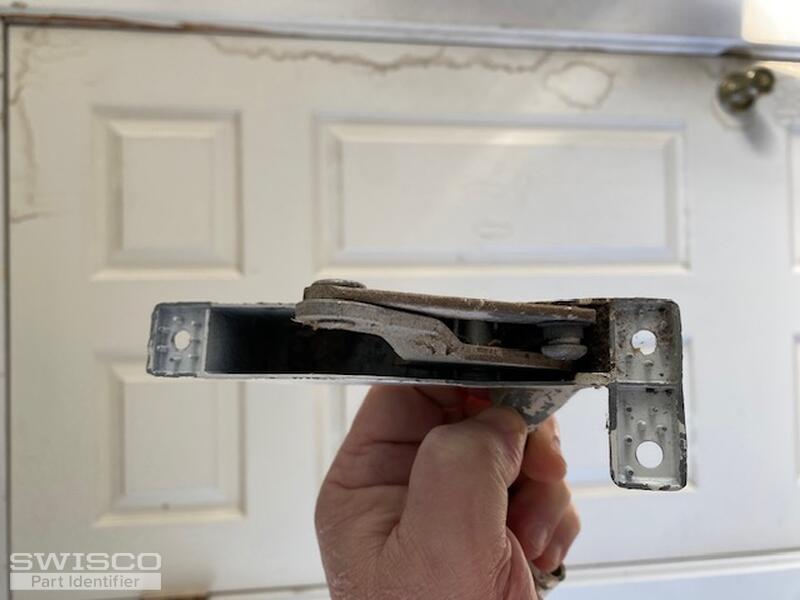

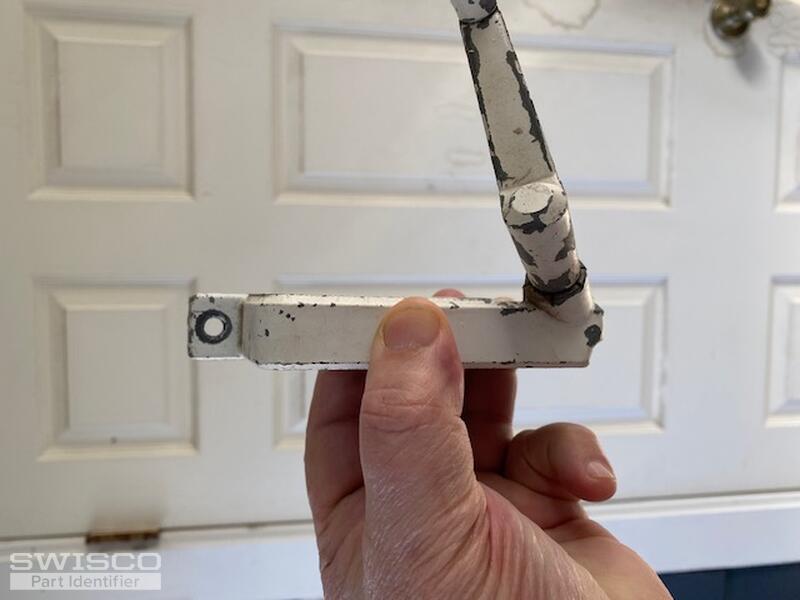

Thanks for the additional photos. I believe your awning window operators can be replaced with the 39-025 and 39-026 Awning Window Crank Operator. To confirm that these are the right replacements, be sure to double check the dimensions.

You may also need the 33-067 shoulder screw, the 33-206 should bolt washer, and the 33-081 screw for the installation.

Dimensions for 39-026

View of the offset of 39-026
