lower bracket for PGT window Series PVC SH22STKR

Question

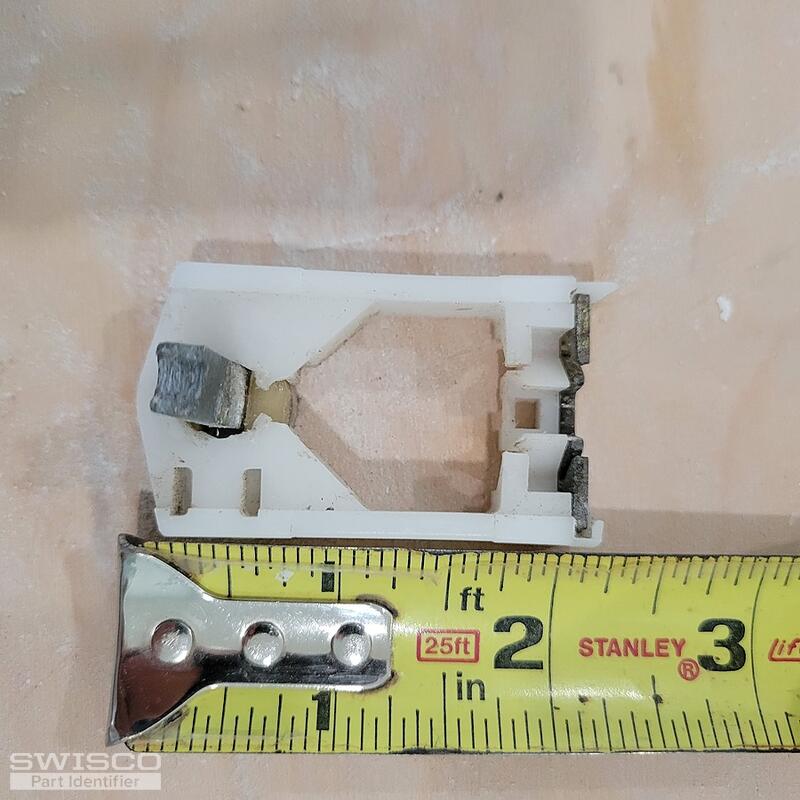

Attached are photos of the part I need. I Need the plastic piece. I need the 6 metal pieces which screw into the window for the tilt out feature
I need 4 of these bottom bracket replacements.

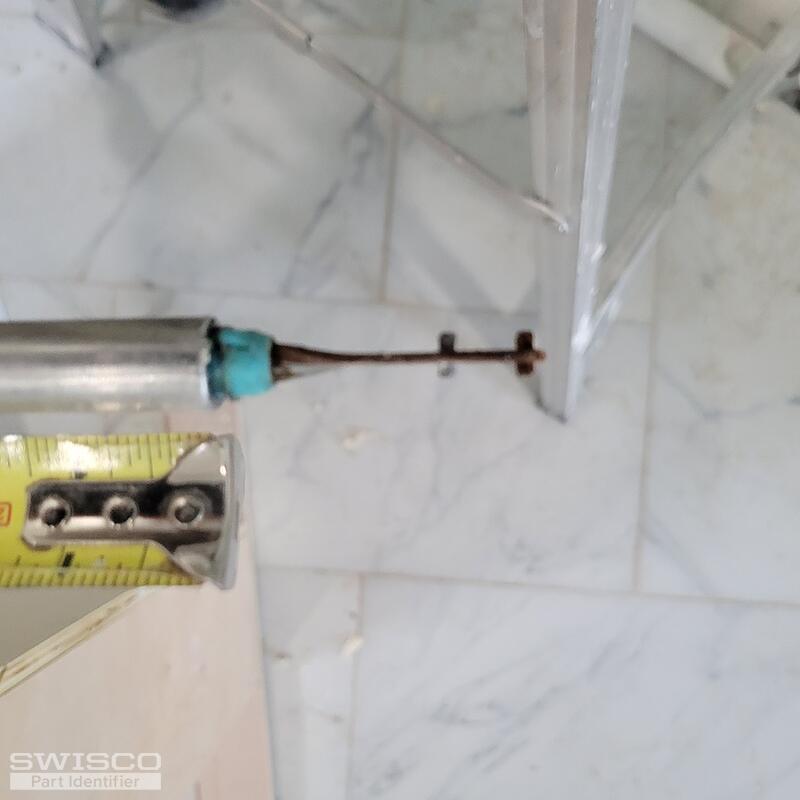

The spiral balance is 30 long and 1/4 in diameter with a 2 cross tips.
The color of the tip is blue on the spiral balance.
Russ

Casey · Accepted Answer

Hello,

Your pivot shoe resembles the 15-210 or 15-231. Take a look and compare the specifications shown on our product pages to yours, paying close attention to the size of the locking break on your pivot shoe.

As for the spiral balances, I would recommend double-checking the diameter of the housing tube to confirm if the (3/8") S900-30 or (5/8") S600-30 spiral balances would work for your application. Thank you!
