markings: 26 4 LW CMC 11

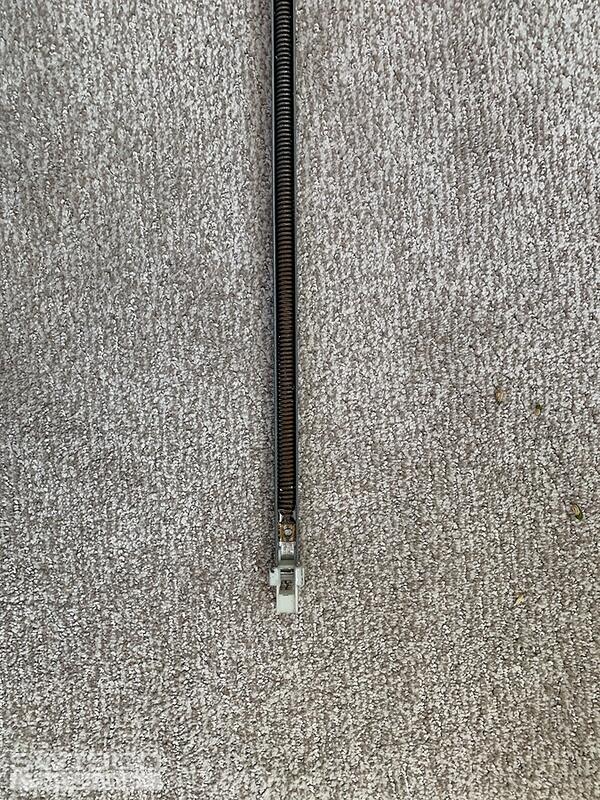

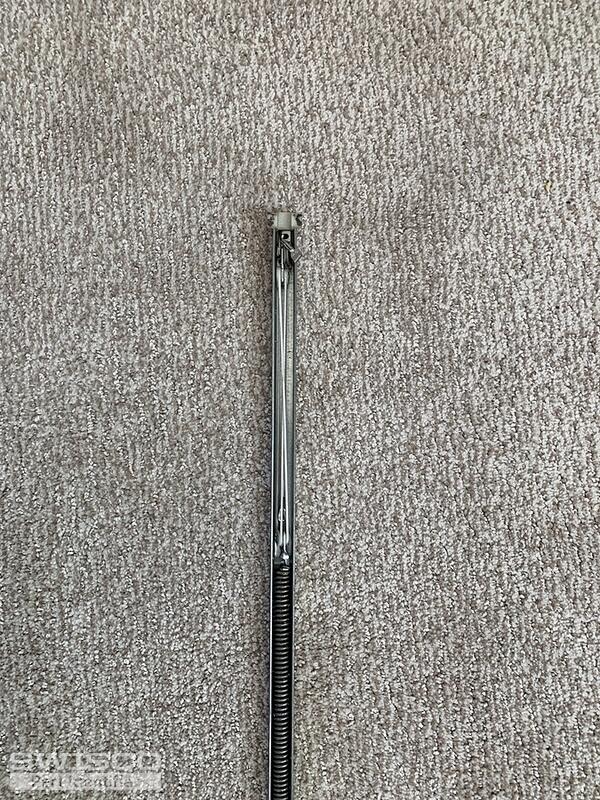

markings on window balance
Quick Learner from San Jose
Jul 22, 2024 12:31 pm
5 user uploaded images
2 Replies
Lauren from SWISCO
Jul 24, 2024 9:10 am
Hello, thank you for posting,
With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.
The length of the metal channel excluding the nylon attachments should measure 27" and you will need a 2640 stamp option. Please review and let us know if you have any additional questions.
Comparison of the S380 and S385 balance shoes.
