mechanism Does Not Work

A home owner from south lake tahoe says:
hello, I have a set of windows that the mechanism doesnt work.
A handy man told me to change only the mechanism and think i found it here,
actually y ordered one from you to check it was order 1840772

Can you confirm what i ordered is correc, and this is able to fix my problem?


Thanks,
Thumbnail of the uploaded file named WhatsApp Image 2022-04-08 at 9.20.29 PM (1).jpeg
Thumbnail of the uploaded file named WhatsApp Image 2022-04-08 at 9.20.29 PM.jpeg
Thumbnail of the uploaded file named WhatsApp Image 2022-04-08 at 9.20.29 PM (2).jpeg

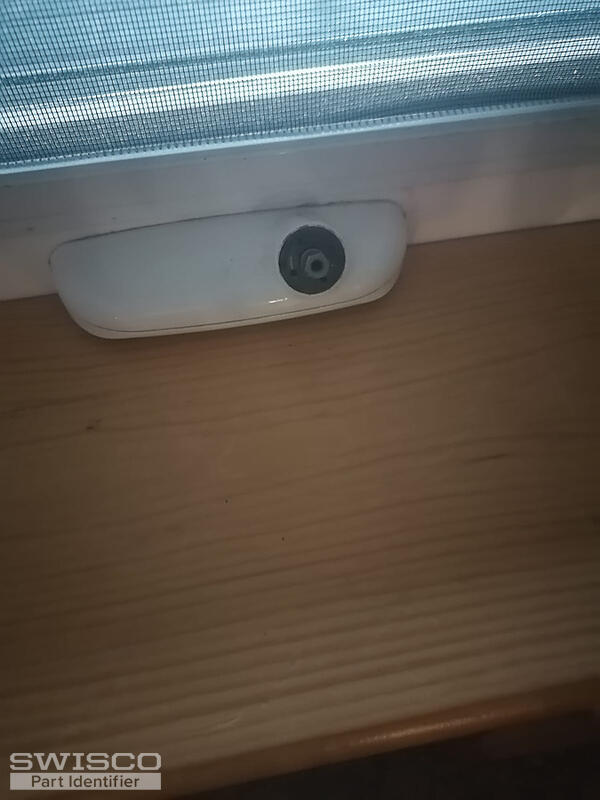

Thumbnail of the uploaded file named WhatsApp Image 2022-04-08 at 9.24.22 PM.jpeg
Profile picture of Tom
Tom from SWISCO responded:

I see you bought our 39-318, but I cannot confirm if this is the right operator for your window. Your photo only shows the base of the old operator. In order to have a better idea of what you need, I have to see the whole mechanism, just like how we show the 39-318 in our catalog. Would that be possible?

A home owner from south lake tahoe says:
Hi here aré More pics
Thanks

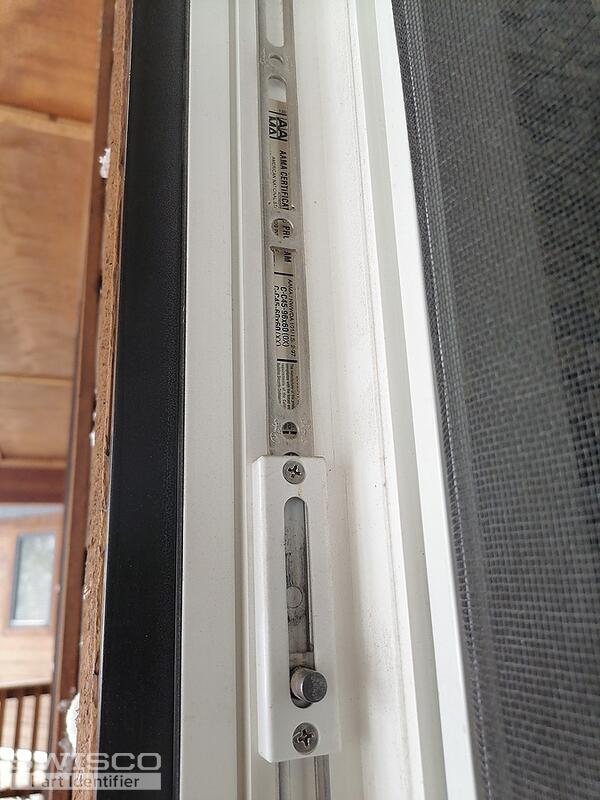

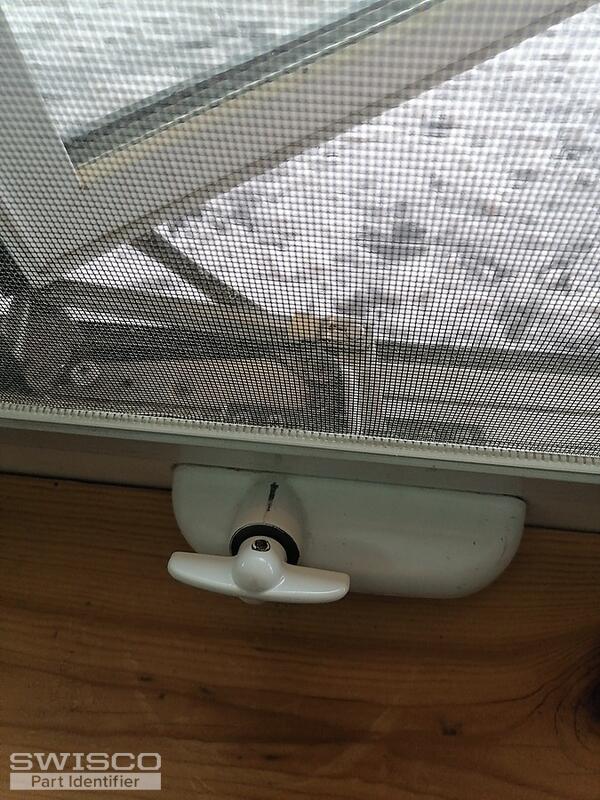

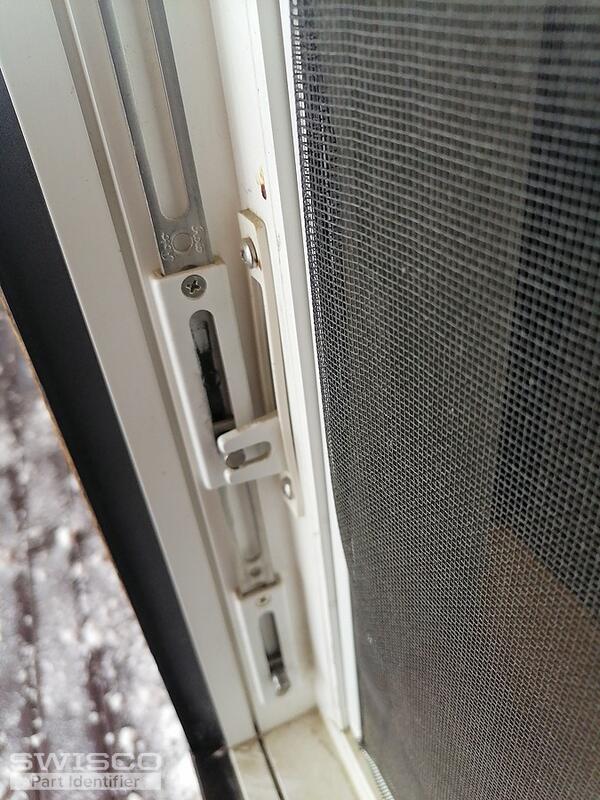

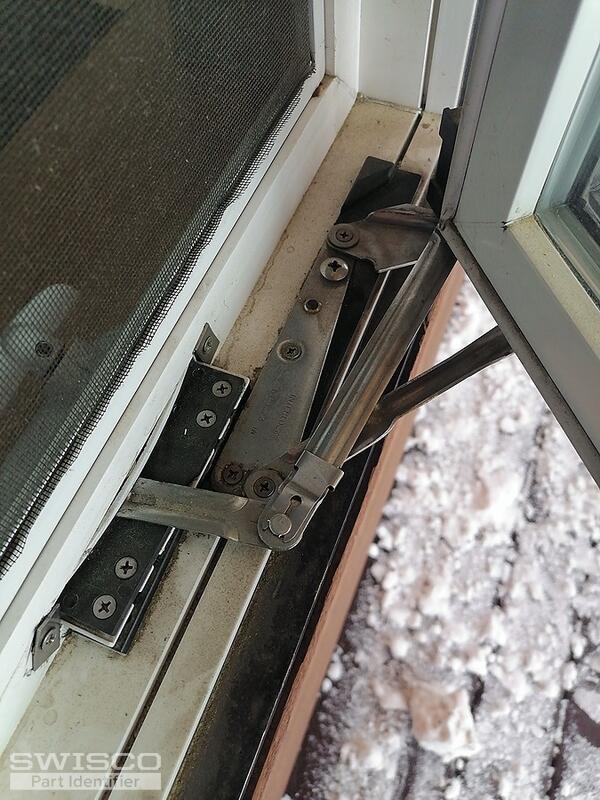

Thumbnail of the uploaded file named 1649701830546638970982518095524.jpg
Thumbnail of the uploaded file named 16497018938337145834021063417519.jpg
Thumbnail of the uploaded file named 16497019106707690159408217453885.jpg
Thumbnail of the uploaded file named 16497019337666503670296846219196.jpg
Profile picture of Tom
Tom from SWISCO responded:

Thank you. The 39-318 was not the right choice for your window. You have an old Roto brand operator.

We actually still sell the main mechanism, which is the 39-092, but that is all that we can still acquire. The arm itself has been discontinued for many years now and we've never been able to find a better source for it. As long as the arm itself can be reused, you could theoretically just replace the main mechanism with our 39-092.

I'm afraid that the 39-318 will not work for you. I recommend returning it for a refund. See our return policy here.
