metal arm that inserts into spring broke

A quick learner from 08723 says:
March 9, 2020
Metallic arm attached to window bottom, which inserts into spring devices within window frame tracks has snapped off. Is this part available? Markings: 5 ? below this are 6R on one and 6L on the other side

Thank you
Steve
Thumbnail of the uploaded file named IMG_0285.JPG
Thumbnail of the uploaded file named IMG_0286.JPG
Thumbnail of the uploaded file named IMG_0287.JPG

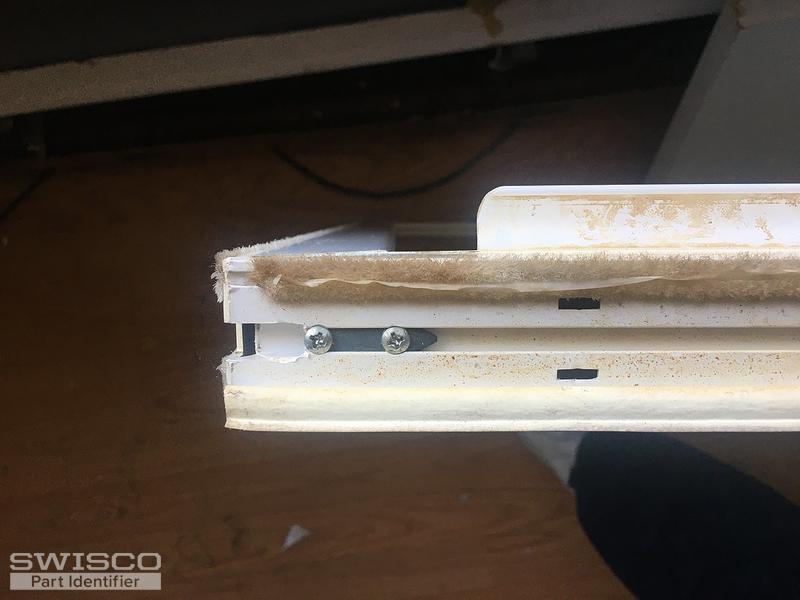

Thumbnail of the uploaded file named IMG_0288.JPG

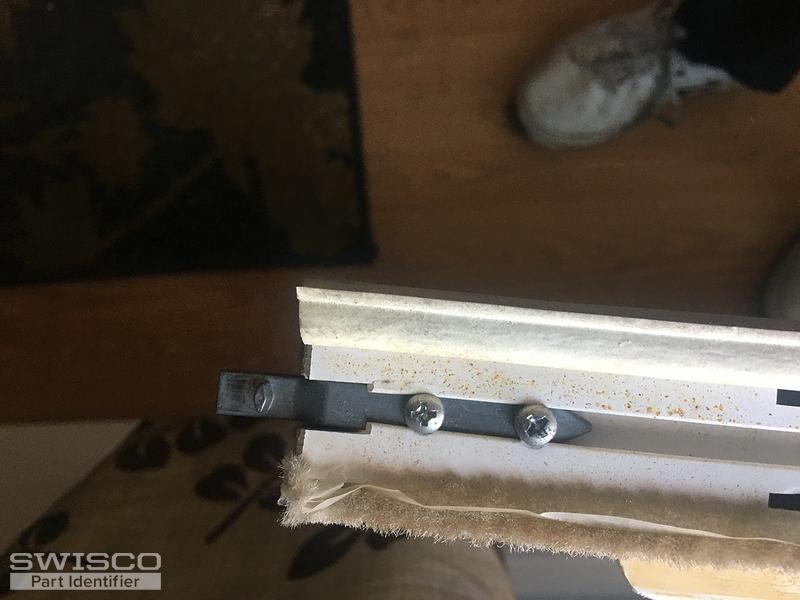

Thumbnail of the uploaded file named IMG_0289.JPG
Profile picture of Tom
Tom from SWISCO responded:
March 11, 2020

Hey, Steve. Looks like you need a new pivot bar. These are skinny metal posts that insert into your coil balance pivot shoe.

I believe yours is a match for our 26-422. Ours has that same peg underneath the tip as yours. I would recommend reviewing our dimensions just to make sure that everything matches up.

Alternate image for 26-422
Alternate image for 26-422
Pivot Bar, 2-7/8"
Pivot Bar, 2-7/8"
26-422
$1.70
Removing Rusted Pivot Bars
Removing Rusted Pivot Bars
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
