metal posts on the left and right bottom sides of the window

A quick learner from Bryant, Arkansas says:
May 2, 2020

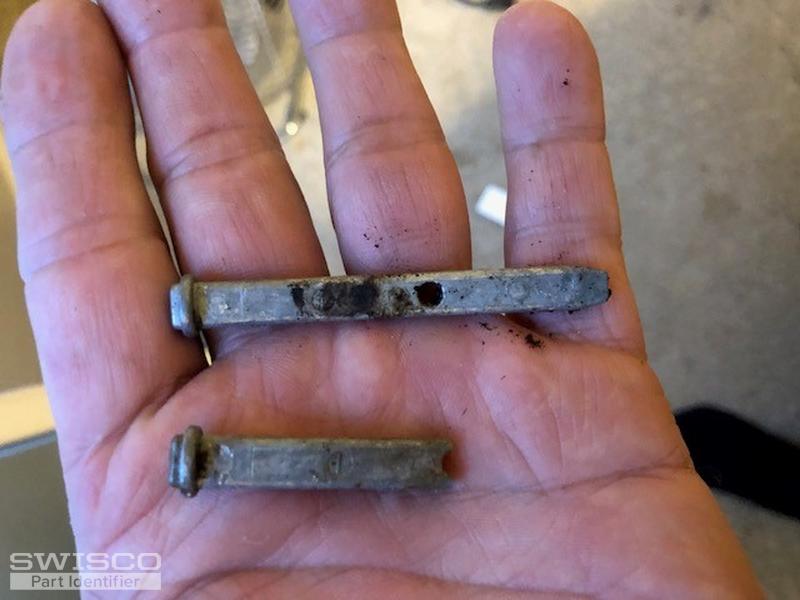

These are at the bottom of the windows on the right and left side, they screw into the bottom and then go into the guides in the window frame. When they are not present, the windows won't stay up. I need at least 10 of them. As you can see in the second picture, one is the part I need and the other is a broken one. when you slide it into the bottom of the window the phillips head screw holds it in place.

Thanks!

Farrell

Thumbnail of the uploaded file named pic1.jpg
Thumbnail of the uploaded file named pic2.jpg
Thumbnail of the uploaded file named pic3.jpg
Profile picture of Tom
Tom from SWISCO responded:
May 5, 2020
Hello,

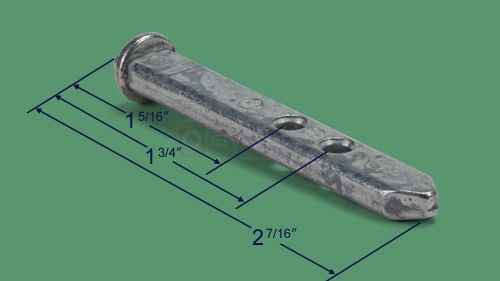

Thank you for posting. It looks like you are in need of a new pivot bar for the bottom of your window. Take a look at our item 26-352. The main way to ensure the replacement will work is if the dimensions line up. Included below are the measurements for the 26-352. Please let us know if these differ from your original.
26-352
Alternate view of 26-352
Alternate view of 26-352
A quick learner from Bryant, Arkansas says:
May 5, 2020

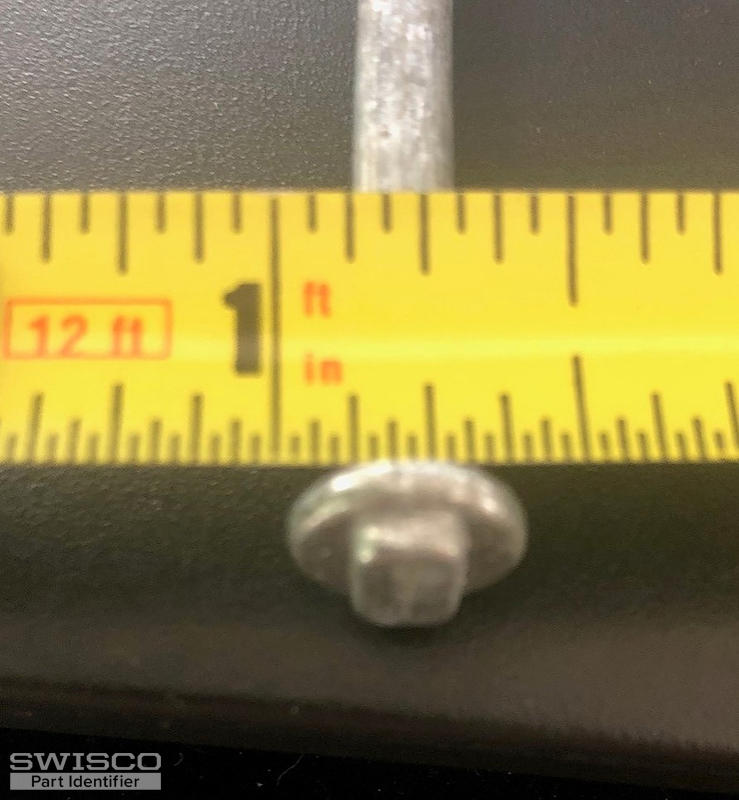

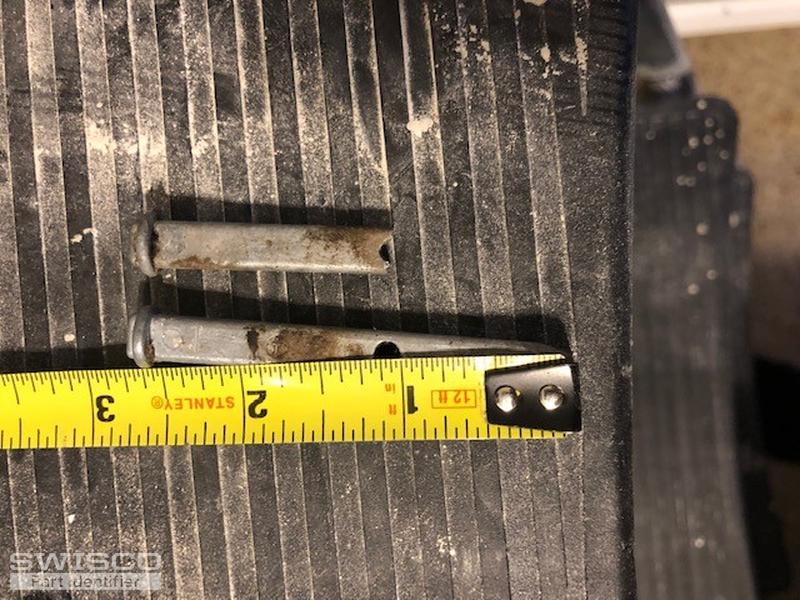

Close, but end to hole on mine is 1.5" the end diameter is 3/8" but the notch is 1/8"
Thumbnail of the uploaded file named pic1.jpg
Thumbnail of the uploaded file named pic2.jpg
A quick learner from Bryant, Arkansas says:
May 5, 2020
I think this one might work, it is longer, but that should not be a problem...

https://www.swisco.com/pivot-bar/pd/Tilt-Window-Replacement-Sash-Pivot-Bars/26-450
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
May 6, 2020

I agree, the hole placement on the 26-450 does seem closer. Just make sure the tip on the 26-450 does not extend too far. Take note you can also use the 26-352 and drill a new hole to match the location in the window.
Pivot True Pivot Bar
Pivot True Pivot Bar
26-352
$1.90
Pivot Bar
Pivot Bar
26-450
$1.97
