mirrored bypass closet doors-slider

Quick Learner from tampa fl

Sep 27, 2011 2:56 pm

Hi, I'm remodeling a home. Closet doors I believe were made by Diston Industries (1980's) They are top rollers. Need the bottom plastic piece that sits in the bottom track. Have attached two photos.

Thank you.

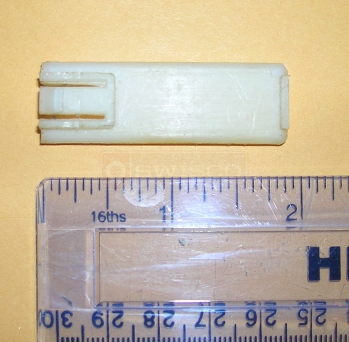

User submitted photos of plastic roller piece.

6 Replies

Paul from SWISCO

Sep 28, 2011 3:23 pm

My first suggestion would be to look at the 23-018 Bottom Guide Pair and the 23-026 Bottom Sliding Door Guide.

Now, they come with a nylon guide, but the guide is riveted and cannot be removed. See if you can replace the whole housing.

Quick Learner from Tampa Fl

Sep 28, 2011 5:10 pm

the current guide is inserted into a vertical groove on the inside edge of the door. The back side of the door is the backside of the mirror. I don't think there is a way to attach 23-026.
On part # 23-018 is it installed with the plastic part of the guide facing into the door?

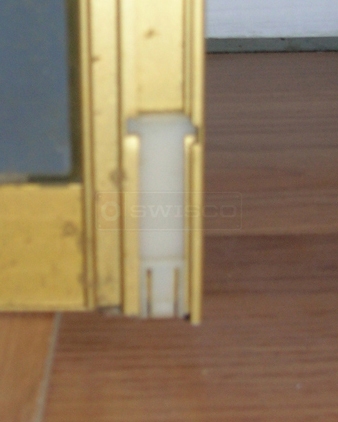

User submitted photo of their closet door guide.

Tom from SWISCO

Sep 30, 2011 9:11 am

Can you report back to us with the width of the plastic guide?

Quick Learner from Tampa

Sep 30, 2011 2:36 pm

The width is 5/8" and the length is 1 and 7/8"

1/8th" thick on it's length, then the grooved end is 1/4" thick.

Thank you.

Casey from SWISCO

Oct 14, 2011 10:09 am

Hello,
Please see new SWISCO product code 23-234, replacement sliding closet door guide.
