mortise lock for Pella designer series sliding patio door

Home Owner from USA

Jan 27, 2014 3:53 pm

Could you help me find the correct mortise lock for Pella designer series sliding patio door ( 1986 model XO26CS)

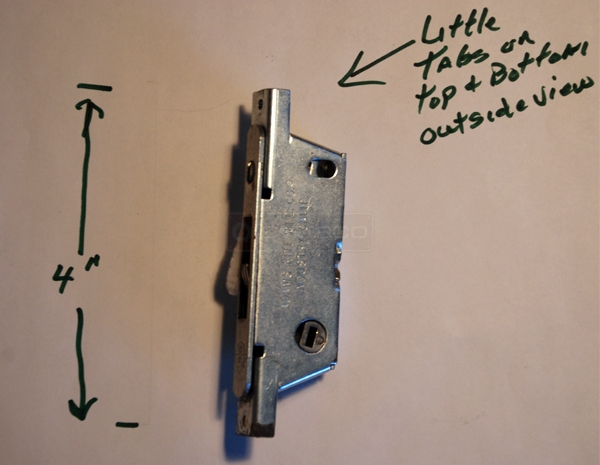

photo attached. It is a single point latch with no key.

User submitted a photo of a mortise lock.

7 Replies

Dave Sr. from SWISCO

Jan 28, 2014 3:16 pm

Take a look at our 82-218 and see how well its dimensions match your existing mortise lock. Could you possibly use this as a substitute?

Home Owner from USA

Jan 30, 2014 11:54 am

I have removed the latch and attached photos from what you see do you think your latch will fit?? mike

User submitted photos of a mortise lock.

Tom from SWISCO

Jan 30, 2014 1:56 pm

I agree with Dave, our 82-218 appears to be the closest match. Just make sure that all the dimensions are the same.

Professional from California

Jan 30, 2014 3:15 pm

You may need to chisel some of the door to make the replacement fit. 82-218 is a rectangle where the original is sloped.

Home Owner from New Jersey

Sep 21, 2021 3:40 pm

Do you sell the handles that go with this top photo? Is the 82-218 for a right sliding or left sliding door or does it matter?

Paul from SWISCO

Sep 27, 2021 9:43 am

The 82-218 inside latch can be used for either right or left sliding doors. There are many handles that go with the 82-218. To list a few, some of them are the 82-030, 82-035 and 82-069.
