moss pivot lock shoe with built in spring inside shoe

Question

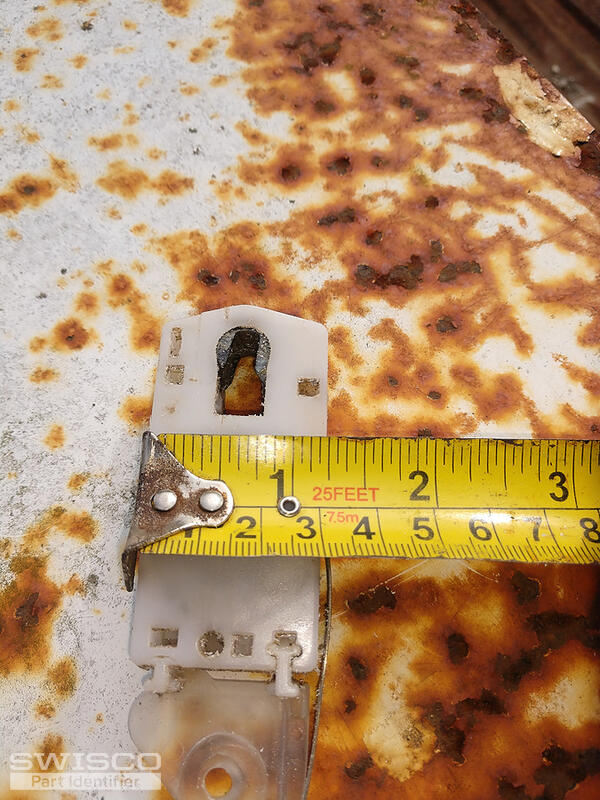

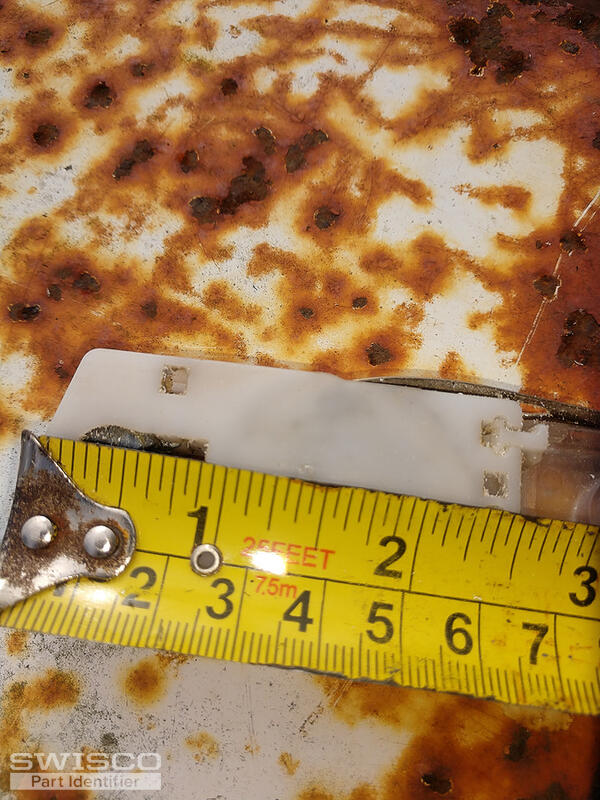

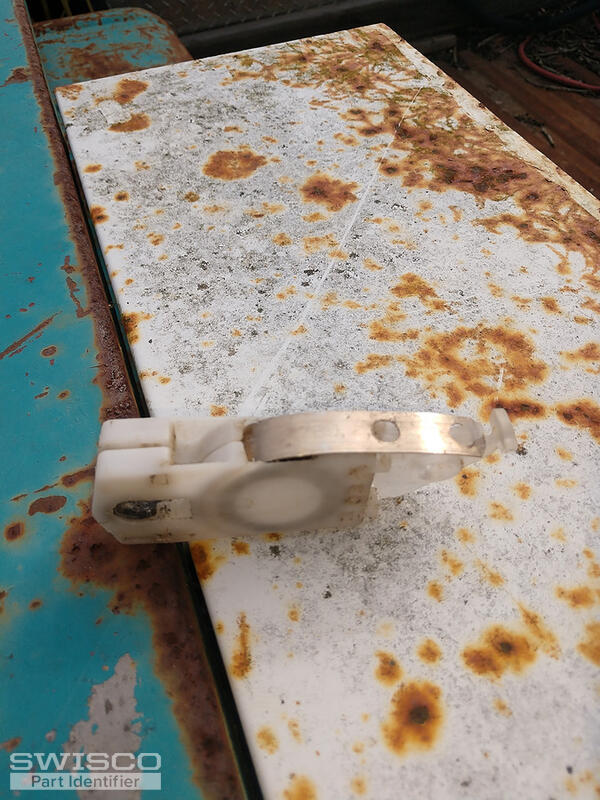

This pivot lock shoe has a spring install inside to raise the window and does not remove from shoe, is 1-1/4" wide, 2-3/4" long, without spring tab on top, 4" with the spring tab on top, 9/16" deep, made from Moss windows 6 years ago.

Jasmine · Accepted Answer

Thanks for reaching out! Your pivot housing appears to be our part 15-087. Take a look at the diagram below and compare the measurements to confirm that this is the correct fit.

Detail of 15-087

This housing is compatible with our Series 180 Coil Balance springs. To confirm which spring strength you need, you'll have to take a look at the coil springs to see if there is a stamp/marking. If there are no stamps/markings, you'll need to obtain the exact weight of the sash and divide it by 2 to confirm the correct spring strength.
